Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 39
Confidential
3.2.5 Options (Motor and Sensors)

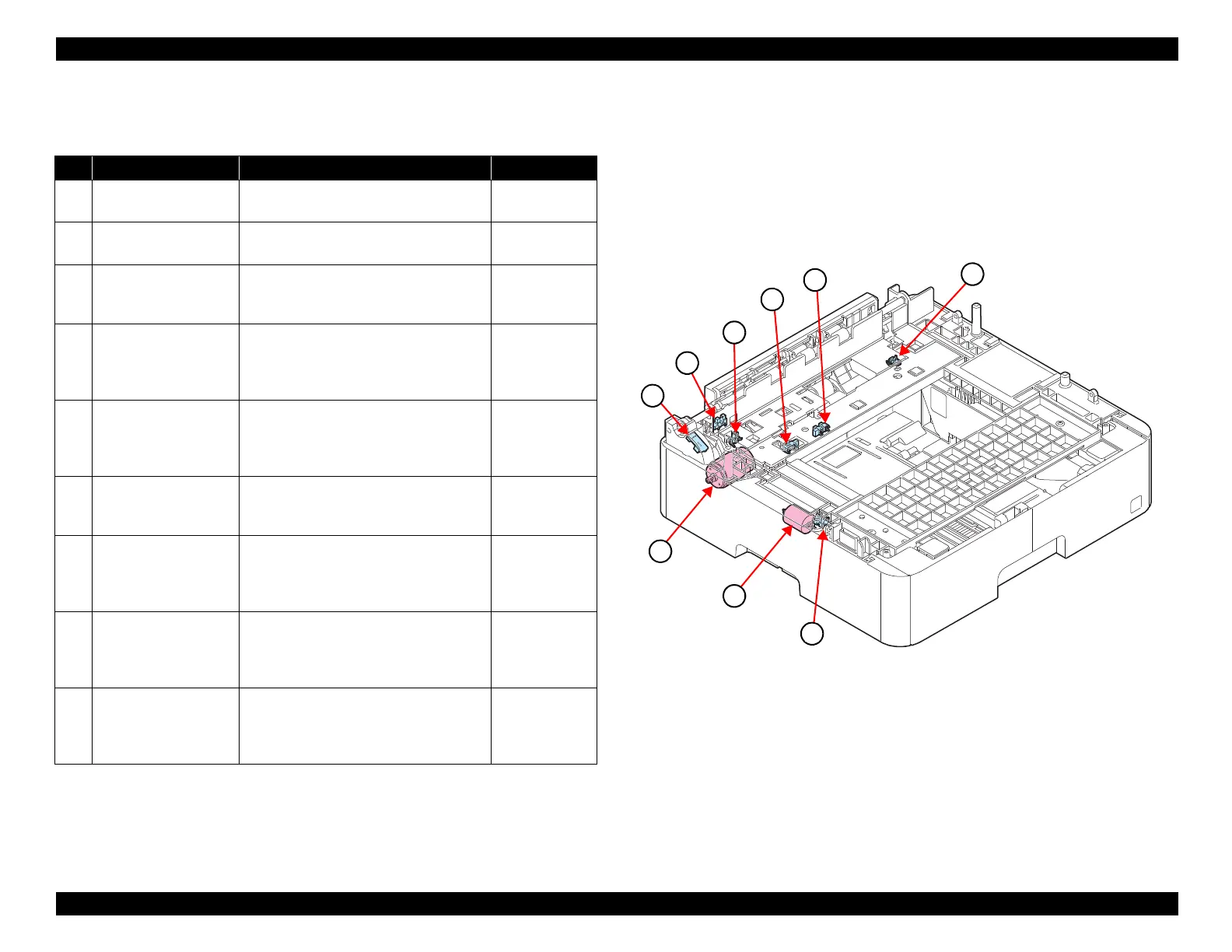

Figure 3-16. Options (Motor and Sensor)
Table 3-16. Options (Motor and Sensor)
No. Name Function Type
A
ASF Motor Used for driving the feed mechanism.
DC motor
(42VDC±5%)
B
Lift Motor
Used to raise the Paper Cassette Hop-
per.
DC motor
(42VDC±5%)
1
Cassette Detection Sensor
Detects the insertion state of the paper cas-
sette.
Mechanical
contact
(3.3VDC±5%)
2
Cassette Paper Detection
Sensor
Detects whether or not there is paper inside
the paper cassette.
Transmissive
photo-
interrupter
(3.3VDC±5%)
3
Hopper Position Sensor Detects the up/down state of the hopper.
Transmissive
photo-
interrupter
(3.3VDC±5%)
4
Jam Cover Detection
Sensor
Detects the open/closed state of the rear
cover.
Mechanical
contact
(3.3VDC±5%)
5
Feed Sensor
Used for paper conveyance detection from
the pickup roller.
Transmissive
photo-
interrupter
(3.3VDC±5%)
6
ASF Encoder Used for ASF motor operation control.
Transmissive
photo-
interrupter
(3.3VDC±5%)
7
Lift Phase Sensor
Used for detecting the phase of lift motor
driving.
Transmissive
photo-
interrupter
(3.3VDC±5%)
1
A
B
2
3
4
5
6
7

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
