Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 41
Confidential
3.2.7 ADF (Motor and Sensor)

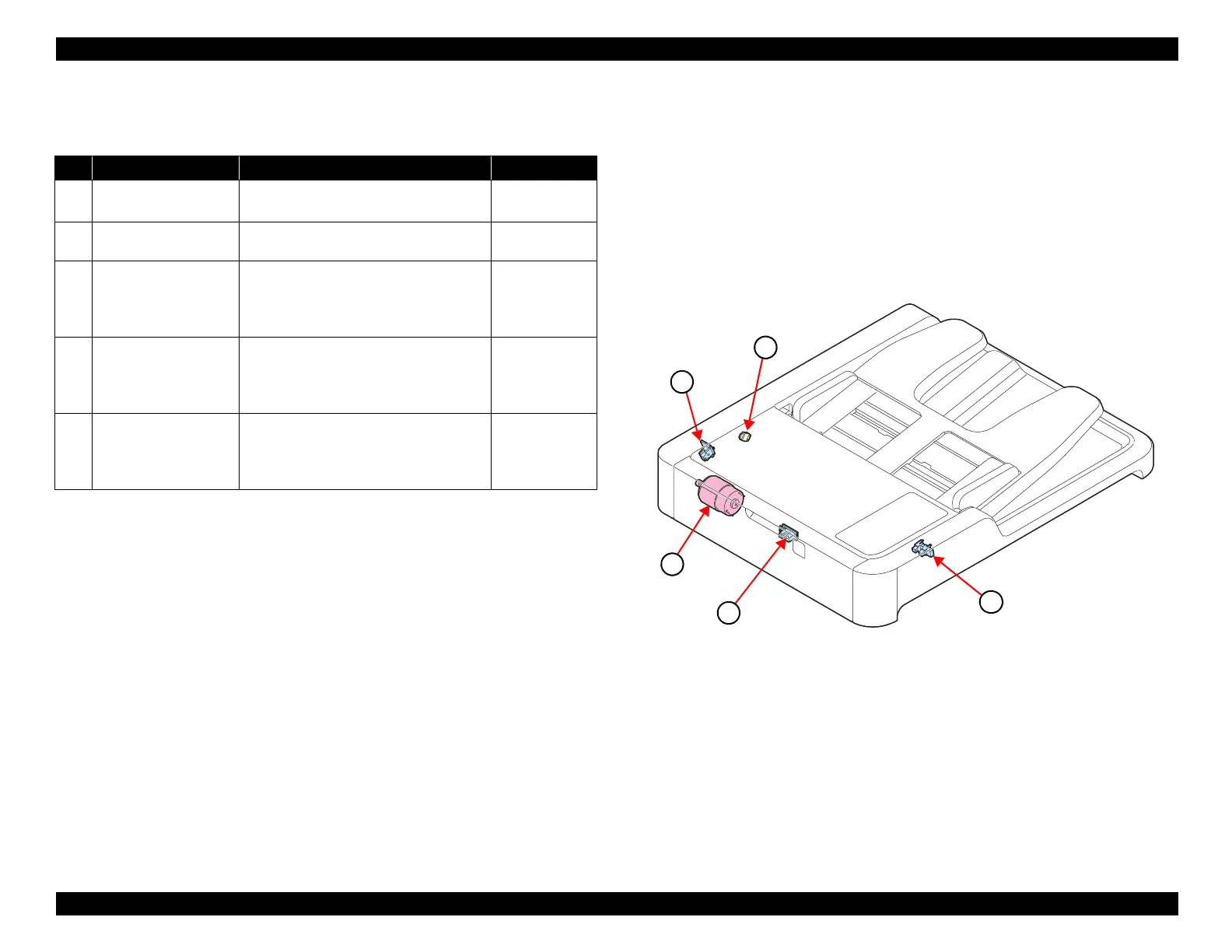

Figure 3-18. ADF (Motor and Sensor)
Table 3-18. ADF (Motor and Sensor)
No. Name Function Type
A
ADF Motor
Used for driving the document feed mecha-
nism.
DC motor
(42VDC±5%)
B
ADF Solenoid
Performs switching of the drive transmis-
sion to the pickup roller.
---
1 ADF Encoder
Used for controlling operation of the ADF
motor.
Transmissive
photo-
interrupter
(3.3VDC±5%)
2 ADF PE Sensor
Detects whether or not there is a document
in the paper feed path.
Transmissive
photo-
interrupter
(3.3VDC±5%)
3 ADF DOC Sensor
Detects whether or not a document is
placed on the ADF document support.
Transmissive
photo-
interrupter
(3.3VDC±5%)
1
2
A
B
3

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
