Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 235
Confidential
6.2.2 Preparation for servicing
6.2.2.1 Unlocking the CR Unit
1. Remove the Housing Right.
(WF-C5700 Series/ET-8700: 6.2.4.1 Housing (WF-C5700 Series/ET-8700) (1)
(p. 239), WF-C5200 Series: 6.2.4.4 Housing (WF-C5200 Series) (2) (p. 254))
2. Rotate the gear of the Inksystem Unit in the direction of the arrow, and move the
CR Unit to the 80-digit side.

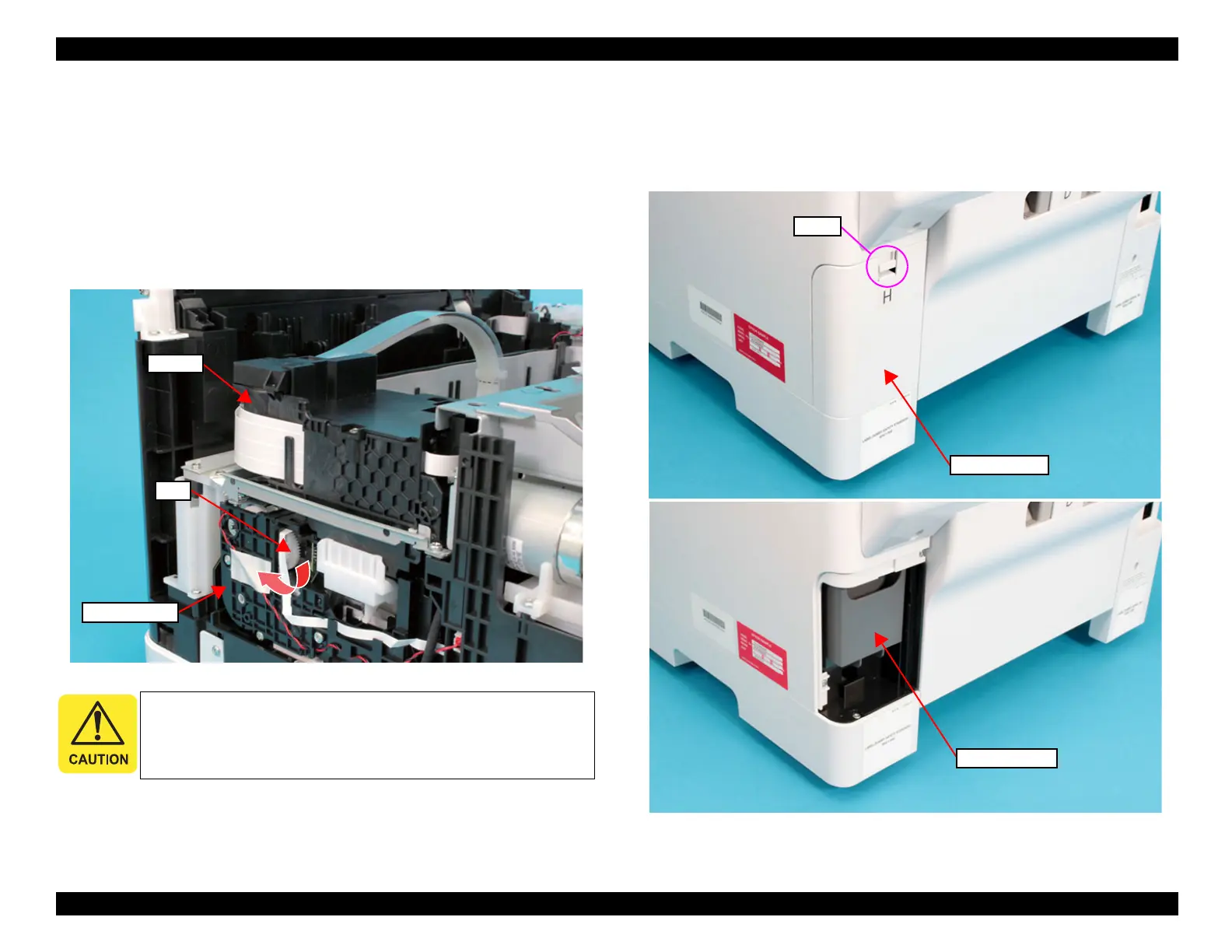

Figure 6-16. Unlocking the CR Unit
6.2.2.2 Removing the Maintenance Box
1. Disengage the hook, and remove the Ink Eject Cover.
2. Remove the Maintenance Box.
Figure 6-17. Removing the Maintenance Box
When rotating the gear of the Inksystem Unit, take extra care not
to damage or disconnect the FFC by touching it.
Gear
Inksystem Unit
CR Unit
Ink Eject Cover
Hook
Maintenance Box

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
