Troubleshooting Fax Troubleshooting 164
Confidential
4.3.2.2 Protocol trace
A detailed report for the previous sent or received fax.
Settings are available for Manual Print, or Auto Print after communication by
changing the RAM Edit.
If a communication does not start until send/receive operation (when it did not
enter Phase B after Phase A), the log is displayed as a blank space.
 Output Procedure
 Output Setting
 Output Sample
Manual
[FAX] → [(Menu)] → [FAX Report] → [Protocol trace]
= Select [Print]
Auto
Use Fax parameter Setting mode #006 to automatically print the log
for every communication.
See “Communication Protocol trace” in Service Parameter List.
Save / Print
error only
Use FAX parameter setting mode #005 to save and print error
communication only.
See “Communication Protocol trace” in Service Parameter List.
Auto
Use Fax parameter Setting mode #007 to save one log/ save three log/
print the Protocol trace.
See “Communication Protocol trace” in Service Parameter List.

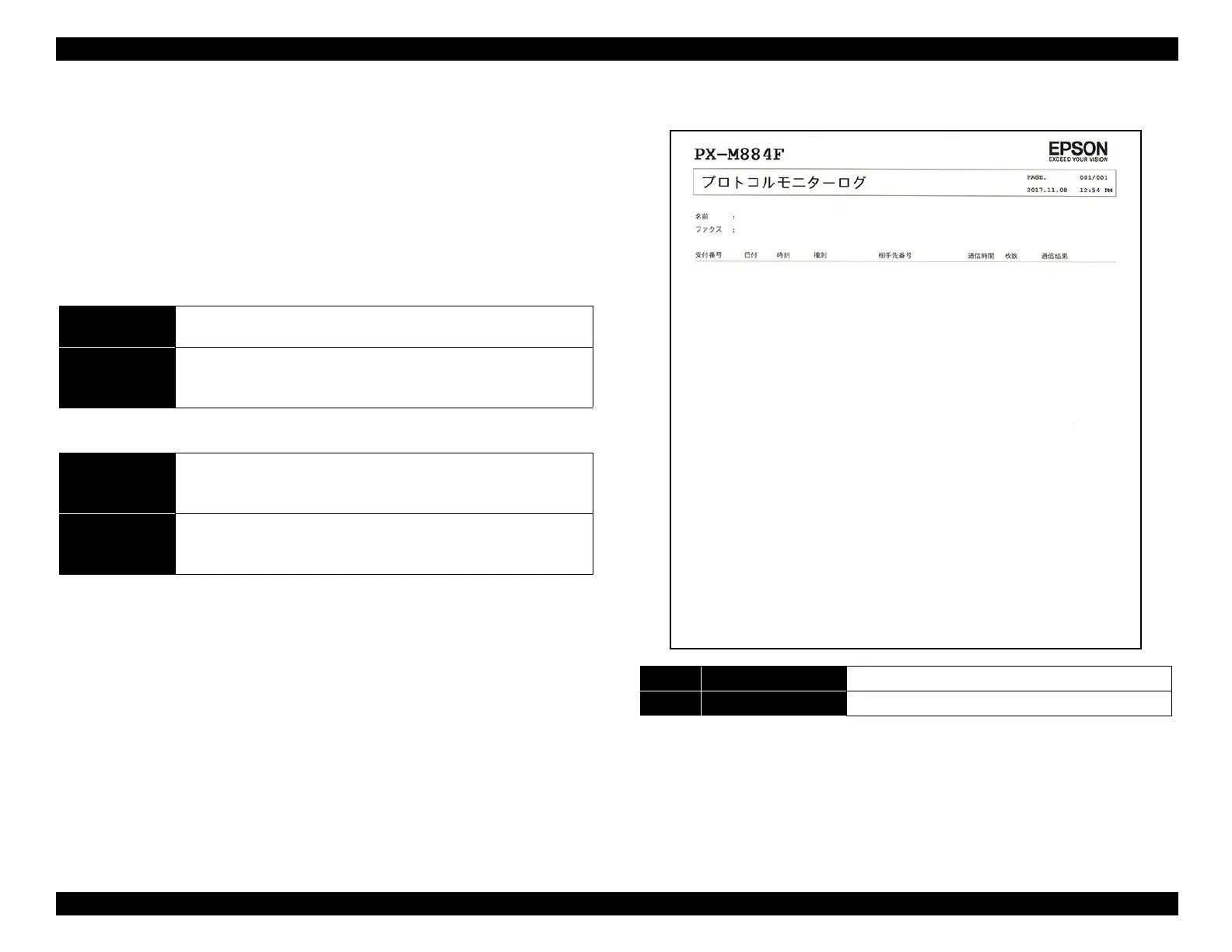

(1) Title etc. Same as FAX log
(2) Name, Fax Sender’s name registered to the product
(1)
(2)
(3)
(4)
(5)
