Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Adjustment Adjustment and Inspection Details 564
Confidential
7.3.2 Software Adjustments and Inspections
7.3.2.1 Initial settings
EEPROM DATA COPY
1. Start the Adjustment Program.
2. Select the “EEPROM Data Copy” from menu of adjustment program.
3. Make sure a check mark has been placed for items that require data copy, and then
press the Backup button.

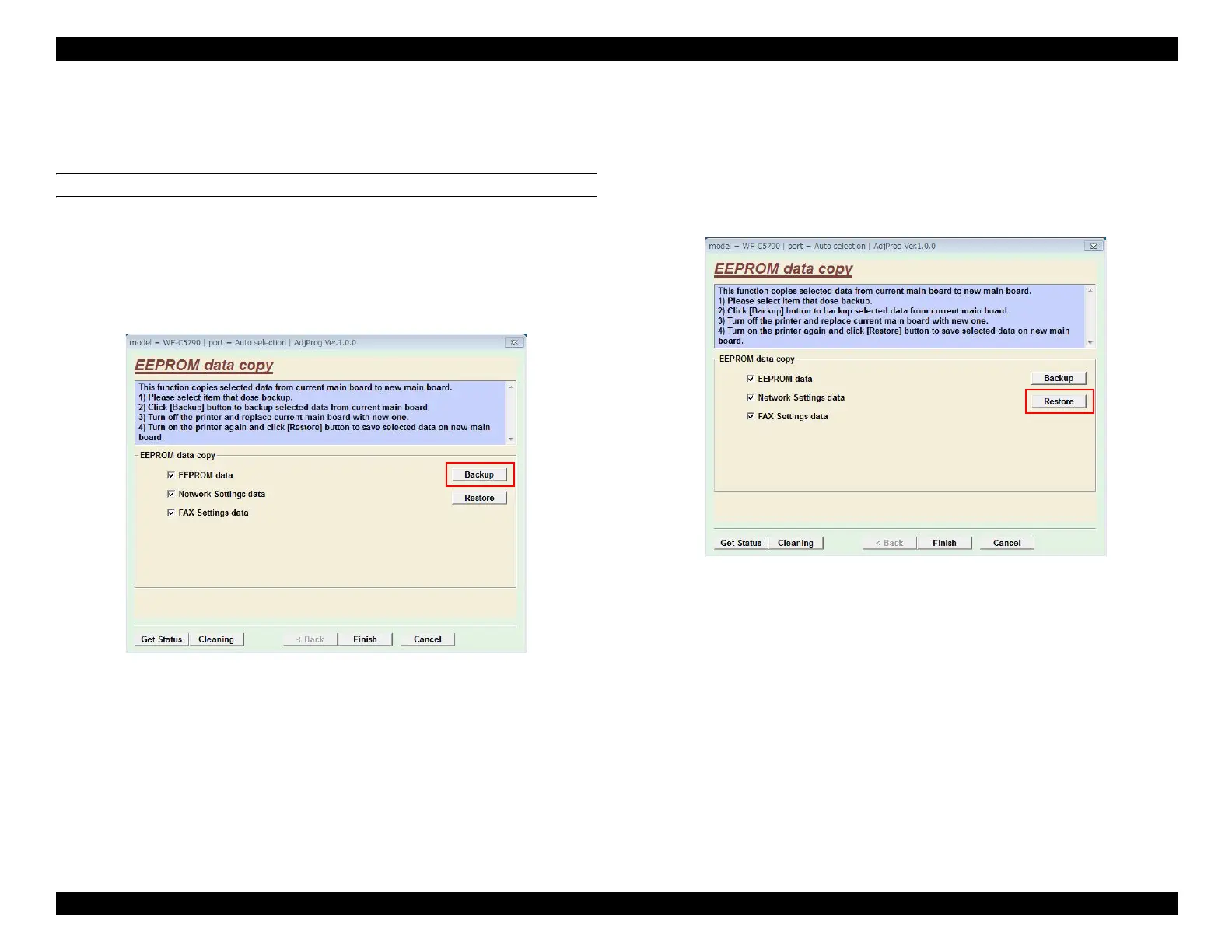

Figure 7-7. EEPROM Data Copy screen (1)
4. Turn the printer off, and replace the Main Board Assy with a new one.
(For information on how to replace the Main Board Assy, see " Main Board Assy
(p. 328)")
5. Connect the printer and PC, and turn the printer on.
6. Press the Restore button on the EEPROM Data Copy menu to restore the data.
Figure 7-8. EEPROM Data Copy screen (2)

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
