Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Adjustment Adjustment and Inspection Details 563
Confidential

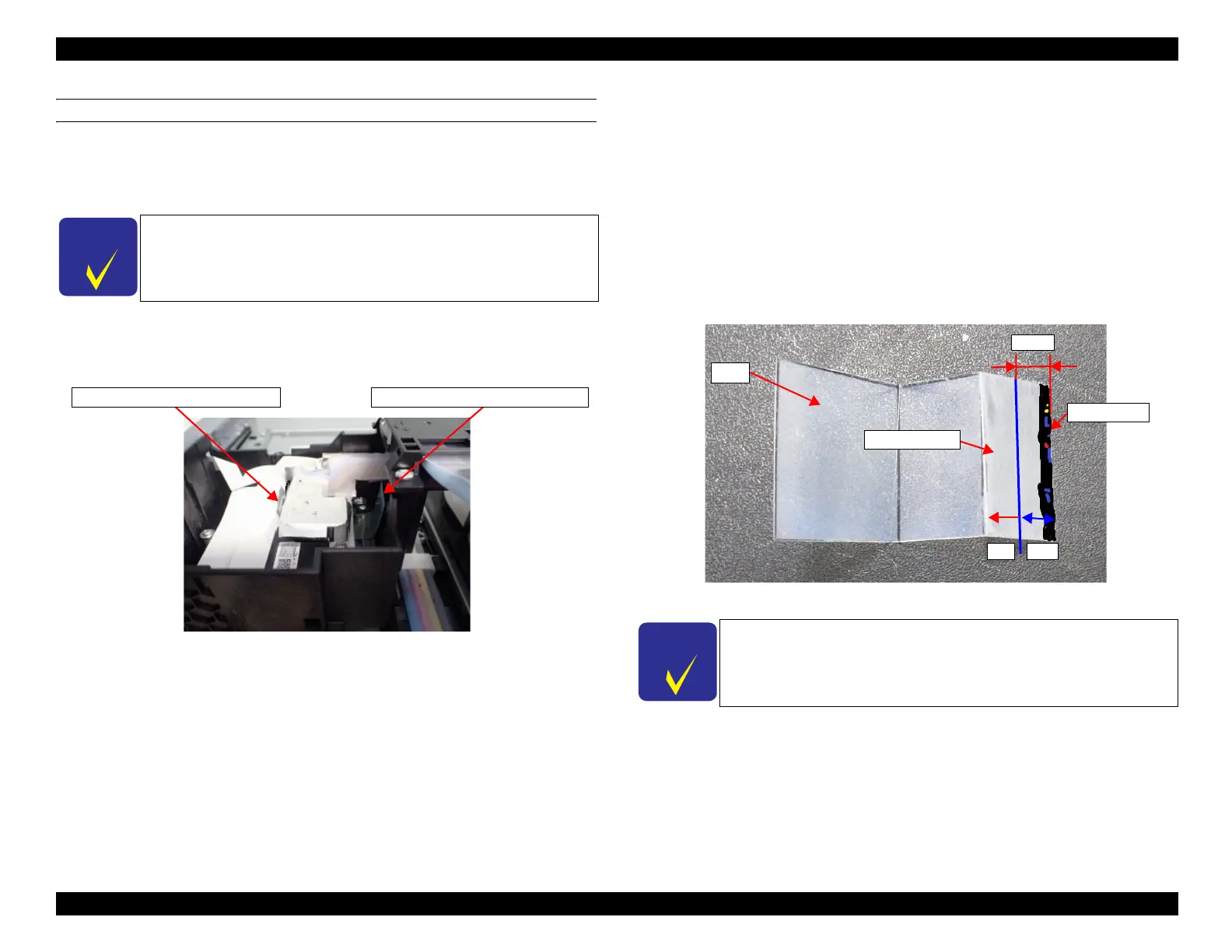

INK LEAK CHECK
An ink leak check is required when disconnecting the Ink Supply Tube from the
Printhead.
The judgment method of the ink leak check is described below.
 Leak check procedure
1. Pull out the jigs for the leak check.
Figure 7-5. Leak Check Procedure (1)
2. Check the ink adherence state on the cloudy surface of the jigs to determine
whether or not there is an ink leak.
 Judgment criterion of leak check
Check whether or not ink is adhered at a position of 2 mm or more from the
leading edge of the cloudy surface of the jigs. (Consider the result to be a fail
if any of the jigs for the leak check does not pass the check.)
• Pass (no ink leak)
When ink adherence is less than 2 mm from the leading edge of the jig
• Fail (ink leak)
When ink adherence is 2 mm or more from the leading edge of the jig
Figure 7-6. Judgment Criterion of Leak Check
C H E C K
P O I N T
The jigs for the leak check (leak tester sheet front/rear) need to be
attached during the part replacement work. For the procedure to
attach the jigs, refer to " Printhead (p. 403)" and " Ink Supply
Tube (p. 398)".
Jig (Leak tester sheet front)Jig (Leak tester sheet rear)
C H E C K
P O I N T
If the result is determined to be a fail (ink leak), refer to
“Printhead”
(p. 403) and perform the ink leak check again.
2mm
Leading edge
OK
NG
Cloudy surface
Jig

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
