EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 398
Confidential

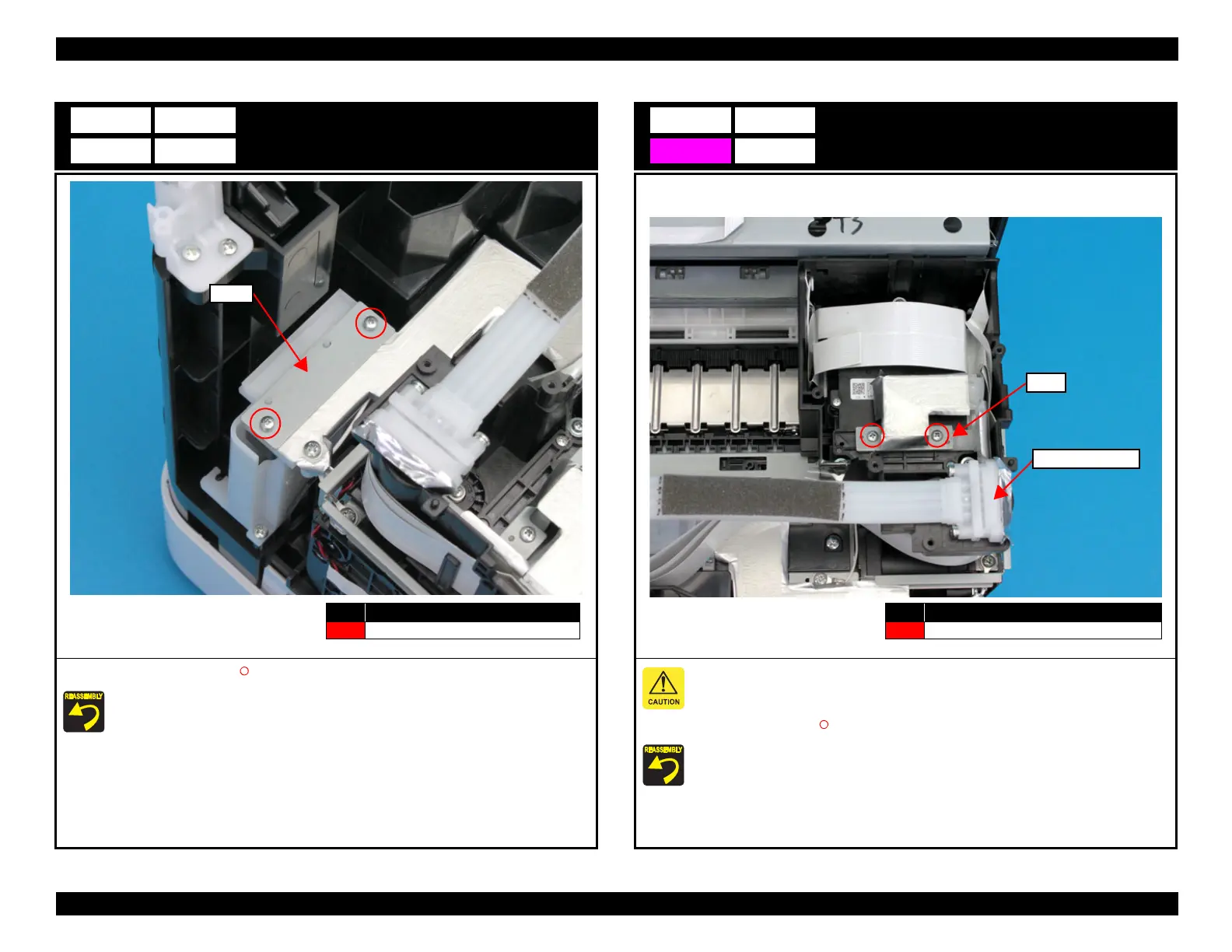

Plate
1. Remove the two screws (S6: ), and remove the Plate.
When installing the Ink Supply Tube to the RIPS Unit, make sure to tighten the
screws using a torque driver with the specified torque.
 Screw tightening torque: 0.59±0.01Nm
C9 D9
Plate
No. Screw Type
S6
C.B.SCREW-2.6X18-F.ZN-3C
Ink Supply Tube
In the following steps, ink may spill from the Ink Supply Tube. Prepare waste cloths
or similar in advance.
1. Remove the two screws (S8: ), and remove the Ink Supply Tube from the Printhead.
Make sure the plate was attached.
C10 D10
No. Screw Type
S8
C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C
Ink Supply Tube
Plate
