EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 399
Confidential

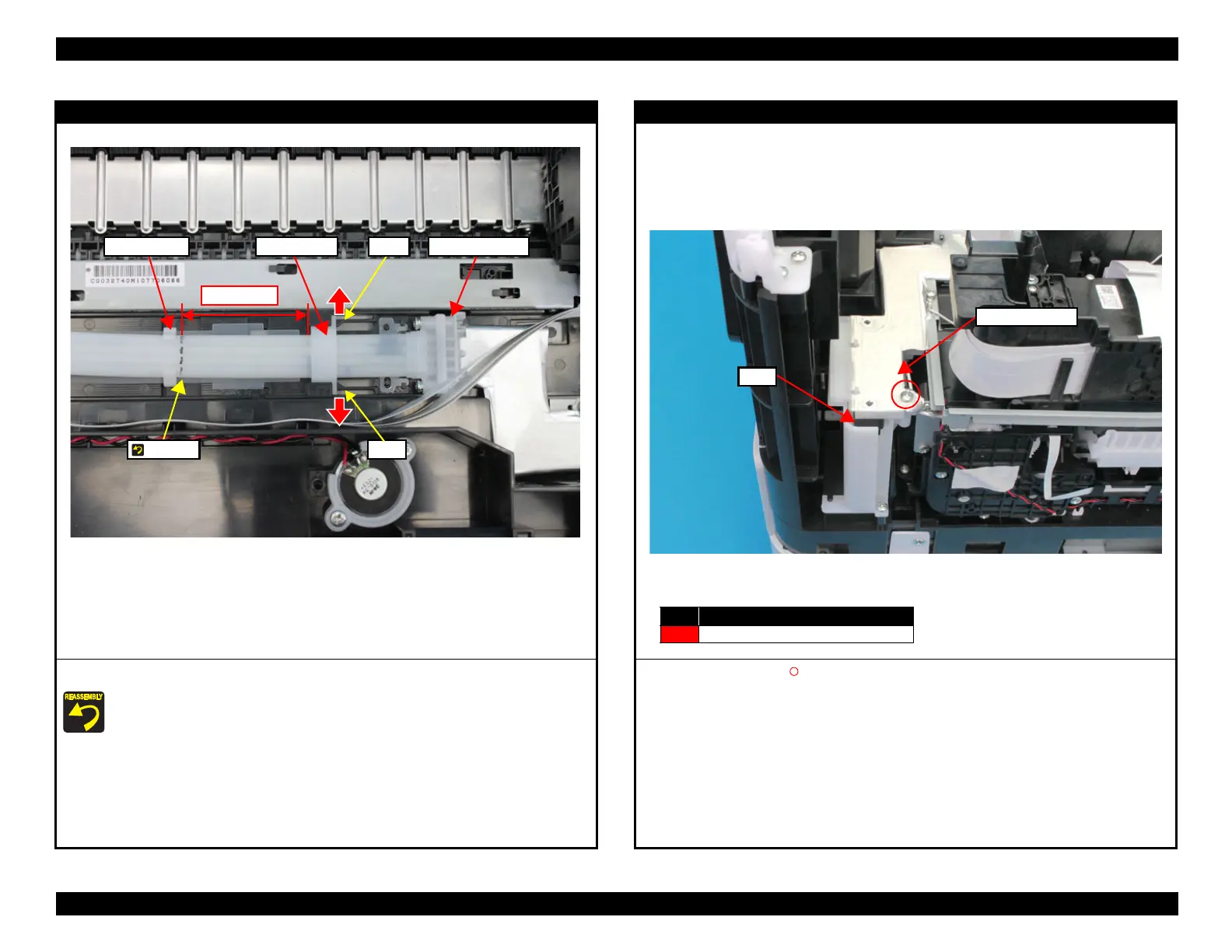

Ink Supply Tube
2. Remove the Ink Supply Tube from the Tube Clamp.
At the marking point on the Ink Supply Tube, attach the Ink Supply Tube to the Tube
Clamp. If the marking is not visible, refer to the drawing above to attach the Ink
Supply Tube.
3. Remove the Tube Holder while pressing the hooks outward.
Ink Supply Tube
Tube Clamp
Tube Holder
Hook
Hook
87.5 ± 1 mm
Marking
Ink Supply Tube
4. Remove the screw (S4: ).
5. Remove the Ink Supply Tube from the Joint, and remove the Ink Supply Tube.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Ink Supply Tube
Joint
