Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Appendix Connection Diagram 592
Confidential

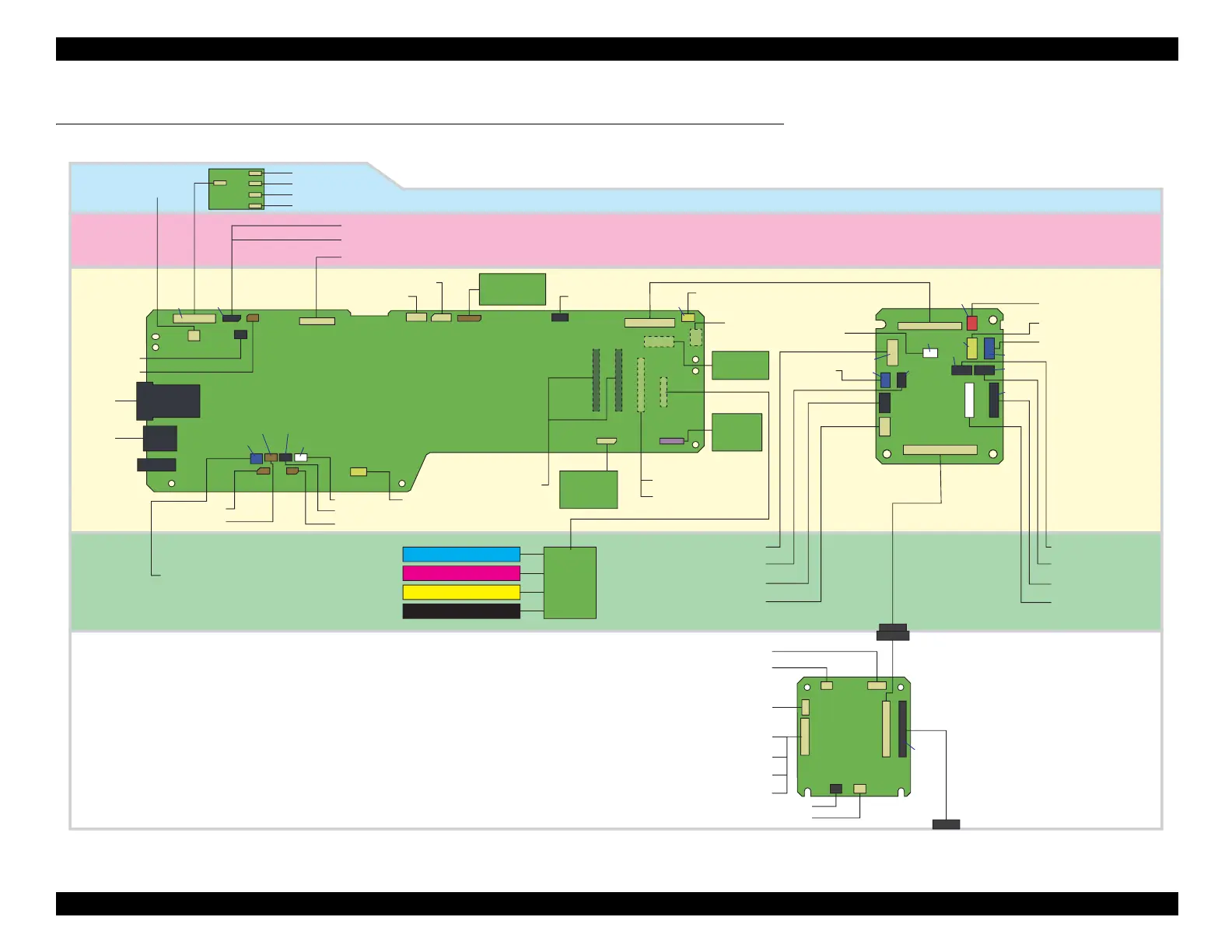

9.1 Connection Diagram
CN5
CN4
CN7
CN6
CN13CN12
CN2
CN1
CN1
CN10
CN2
CN12
CN11
CN22
CN20
CN56
CN51
CN52
CN54
CN55
CN31
CN30
CN53
CN801
CN612
CN80
CN606
CN55
CN601
CN74 CN44
CN53
CN110
CN609
CN31
CN34
CN42
CN8
CN68
CN66CN67
CN3
CN2
CN72
CN52CN50
CN77
CN73CN75
CN9
Speaker*1
ADF
*1
Scanner
*2
Printer
RIPS Unit
Optional Cassette Unit
ADF Motor
ADF Relay Board
ADF PE Sensor
ADF DOC Sensor
ADF Encoder
ADF Solenoid
SCN Motor
SCN Encoder
CIS Module
Power Supply Board
FAX Board
*1
Maintenance Box Sensor (CSIC)
PE Sensor
ADF/SCN Open Sensor*1
Printer Cover Open Sensor*2
Panel Board
CR Encoder
PW Sensor
Printhead
PDL Board
*3
Wi-Fi
Board
Feed Sensor
CR Motor
PF Motor
PF Encoder
Main Board
I/S Motor
I/S Encoder
Decompression Motor
USB
Ethernet
ASF Encoder
ASF Motor
CRCM
Board
Ink Pack Sensor C (CSIC)
Ink Pack Sensor M (CSIC)
Ink Pack Sensor Y (CSIC)
Ink Pack Sensor Bk (CSIC)
Temperature and Humidity Sensor
Front Cover Open Sensor
Ink Leak Sensor 1
Ink Leak Sensor 2
Ink Leak Sensor 4
Ink Leak Sensor 3
Ink End Sensor (C, M)
Ink End Sensor (Bk, Y)
Cassette Detection
Sensor
Rear Unit
Detection
Sensor
Rear ASF Solenoid
Rear ASF Paper Detection Sensor
Cassette Paper Detection Sensor
ASF Encoder
Jam Cover Detection Sensor
Lift Phase Sensor
Feed Sensor
Cassette Detection Sensor
Cassette Paper Detection Sensor
Hopper Position Sensor
Lift Motor
ASF Motor
Drawer Connector
Drawer Connector
*1: WF-C5790/WF-C5790a/WF-C5710/ET-8700 only
*2: WF-C5210/WF-C5290/WF-C5290a only
*3: WF-C5790/WF-C5790a/WF-C5290/WF-C5290a only
