Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 38
Confidential
3.2.4 Printer Main Unit (Paper feed and conveyance system sensors and other sensors)

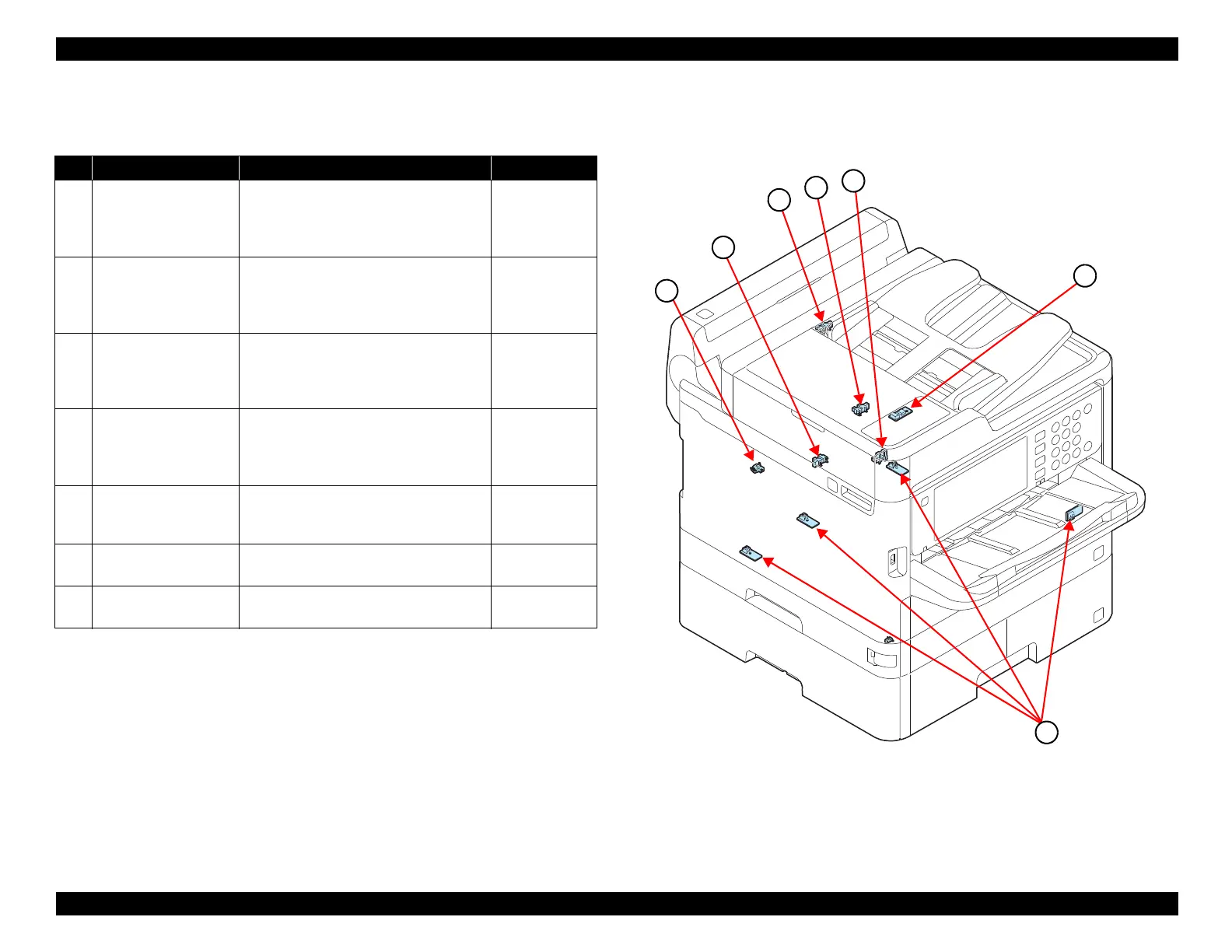

Figure 3-15. Paper feed and conveyance system sensors and other sensors
Table 3-15. Paper feed and conveyance system sensors and other sensors
No. Name Function Type
1 PE Sensor
Detects the paper leading edge and paper
trailing edge during paper feeding.
Transmissive
photo-
interrupter
(3.3VDC±5%)
2 Feed Sensor
Used for paper conveyance detection
between the pickup roller and PE sensor.
Transmissive
photo-
interrupter
(3.3VDC±5%)
3
Rear ASF Paper Detection
Sensor
Detects whether or not there is paper inside
the rear ASF unit.
Transmissive
photo-
interrupter
(3.3VDC±5%)
4
Cassette Paper Detection
Sensor
Detects whether or not there is paper inside
the paper cassette.
Transmissive
photo-
interrupter
(3.3VDC±5%)
5 Cassette Detection Sensor
Detects the insertion state of the paper
cassette.
Mechanical
contact
(3.3VDC±5%)
6
Ink Leak Sensor
Detects the ink leakage inside the ink
supply unit.
Analog sensor
(3.3VDC±5%)
7
Temperature and Humidity
Sensor
Measures temp/humidity to set the
appropriate drying time.
Analog sensor
(3.3VDC)
2
1
3
4
5
6
7

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
