Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 37
Confidential
3.2.3 Printer Main Unit (Encoder sensors and PW sensor)

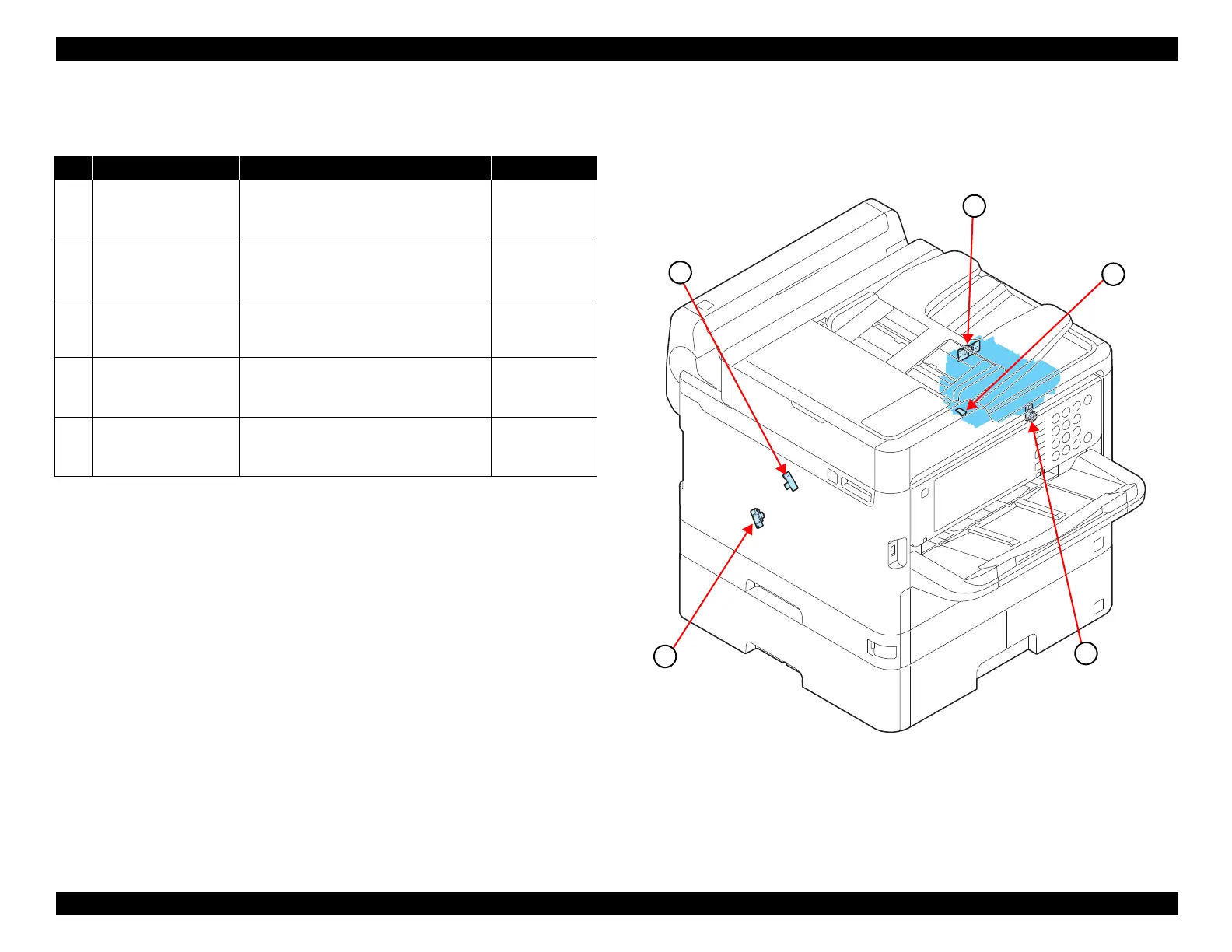

Figure 3-14. Encoder sensors and PW sensor
Table 3-14. Encoder sensors and PW sensor
No. Name Function Type
1 CR Encoder
Used for CR operation control (CR scale
reading).
Transmissive
photo-interrupter
(3.3VDC±5%)
2 ASF Encoder
Used for paper loading driving (ASF
motor) control.
Transmissive
photo-interrupter
(3.3VDC±5%)
3 PF Encoder
Used for paper feed driving (PF motor)
control.
Transmissive
photo-interrupter
(3.3VDC±5%)
4IS Encoder
Used for ink eject driving (I/S motor)
control.
Transmissive
photo-interrupter
(3.3VDC±5%)
5 PW Sensor
Used for paper leading edge and paper
width detection.
Reflective photo-
interrupter
(3.3VDC±5%)
1
2
3
4
5

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
