Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 67
Confidential
3.3.6 Scanner / ADF Mechanism
3.3.6.1 Scanner Mechanism
The scanner mechanism consists of a CIS Module that scans documents and
SCN Motor that drives the Scanner Carriage.
The drive of the SCN Motor is transmitted to the Scanner Carriage by the
Scanner Timing Belt, which moves the CIS Module, and scans the draft.
Additionally, the CIS Module incorporates a Digital Translation Module. This
converts read data to a digital signal and sends it to the Main Board, thus
shortening data transfer time.

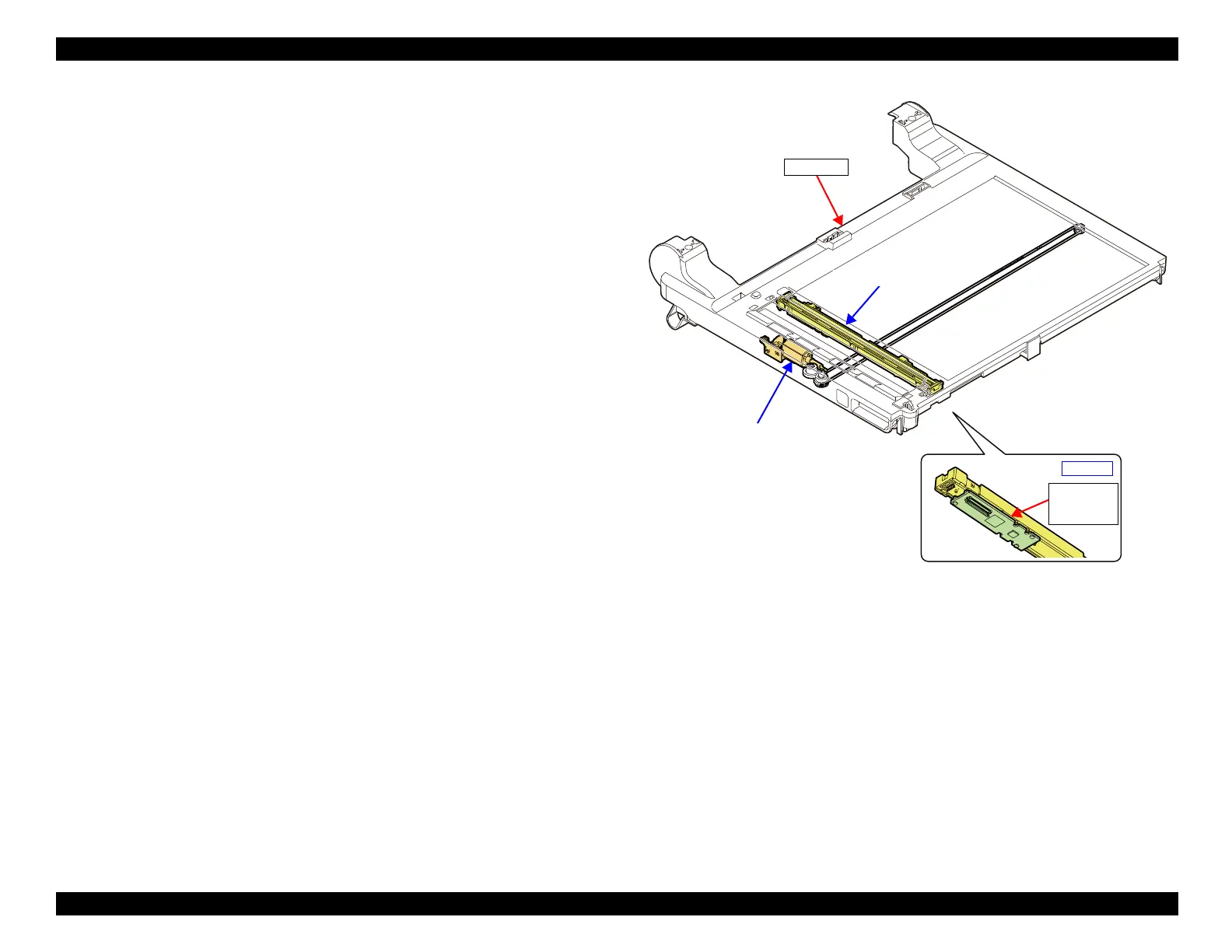

Figure 3-51. Scanner Mechanism
CIS Module
SCN Motor
SCN Unit
Bottom
Digital
Translation
Module

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
