Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Adjustment Adjustment and Inspection Details 568
Confidential
7.3.2.3 Adjustment (Print Adjustment by Mechanical)
HEAD ANGULAR MECHA ADJUSTMENT
 Paper and feed tray
 Paper size: A4
 Paper type: Photo matte paper
 Paper feed tray: Rear ASF Unit
 Adjustment pattern

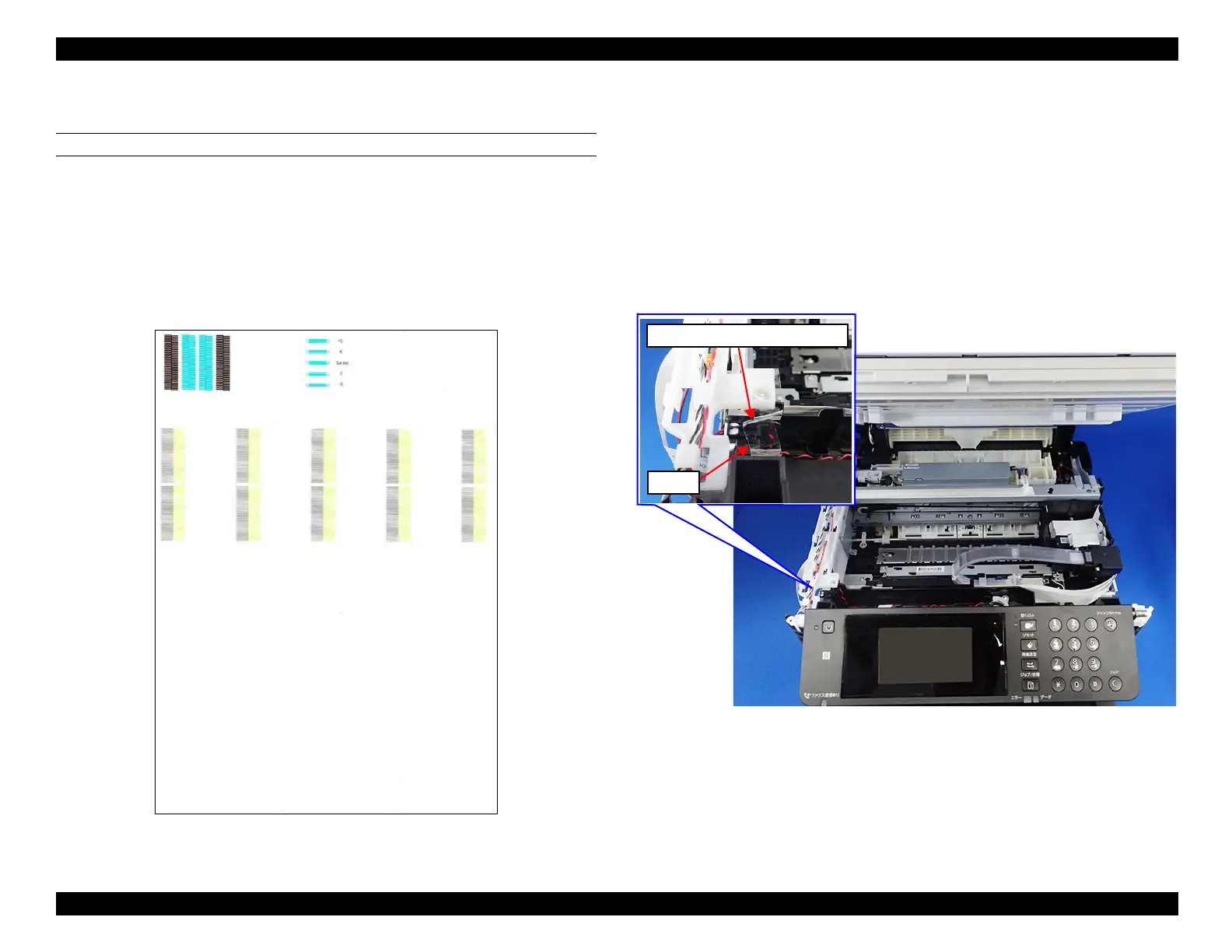

Figure 7-15. Head angular mecha adjustment pattern
 Judgment
Make adjustments so that the spacing between the pattern lines when the
adjustment value is “0” becomes equal.
 Preparation
Head angular mecha adjustment must be performed when the ADF/SCN Unit has
been opened.
Therefore, in order to set the ADF/SCN Open Sensor to the closed state, secure it
with tape.
Figure 7-16. Preparation
ADF/SCN Open Sensor
Tape

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
