Configuration and operating principles Operating principles 60
Confidential
3.3.5 Inksystem mechanism
3.3.5.1 Overview
The inksystem mechanism of this product is composed of the Inksystem assy,
and Maintenance Box.
The ink sucked by the Cap mechanism and Pump mechanism from the
Printhead is drained via the Waste Ink Tube and into the Waste Ink Pad in the
Maintenance Box.
The amount of waste ink is controlled by the counter in the firmware taking the
amount of evaporation into account so as not to let the ink leak out of the
printer because the waste ink exceeds the limit of the storage capacity.
Further, this product uses a mechanism by which the user him/herself can
replace the Maintenance Box.

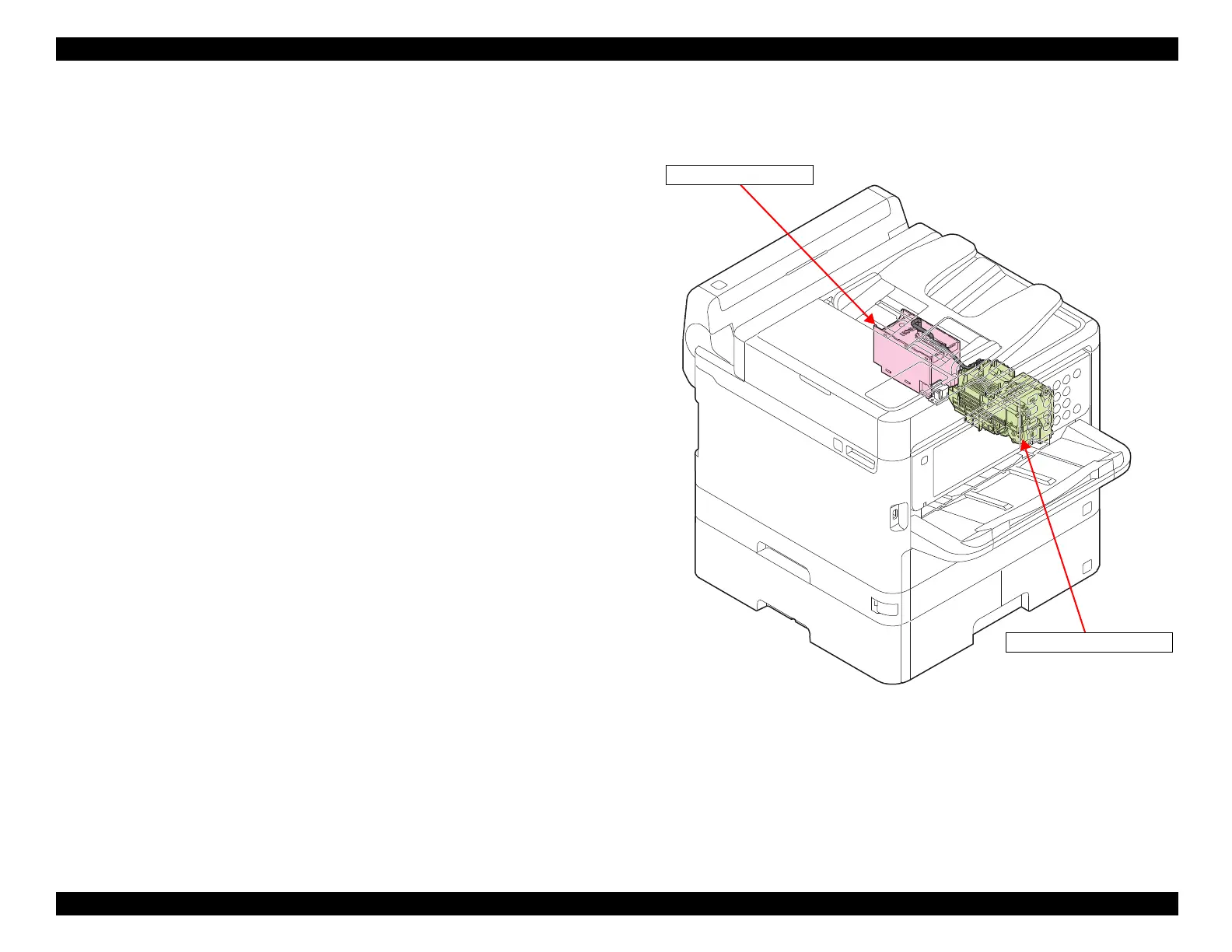

Figure 3-39. Ink system mechanism
Inksystem Assy
Maintenance Box

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
