6.2 Disassembly/Reassembly Procedures
6.2.1 Parts/Components Location

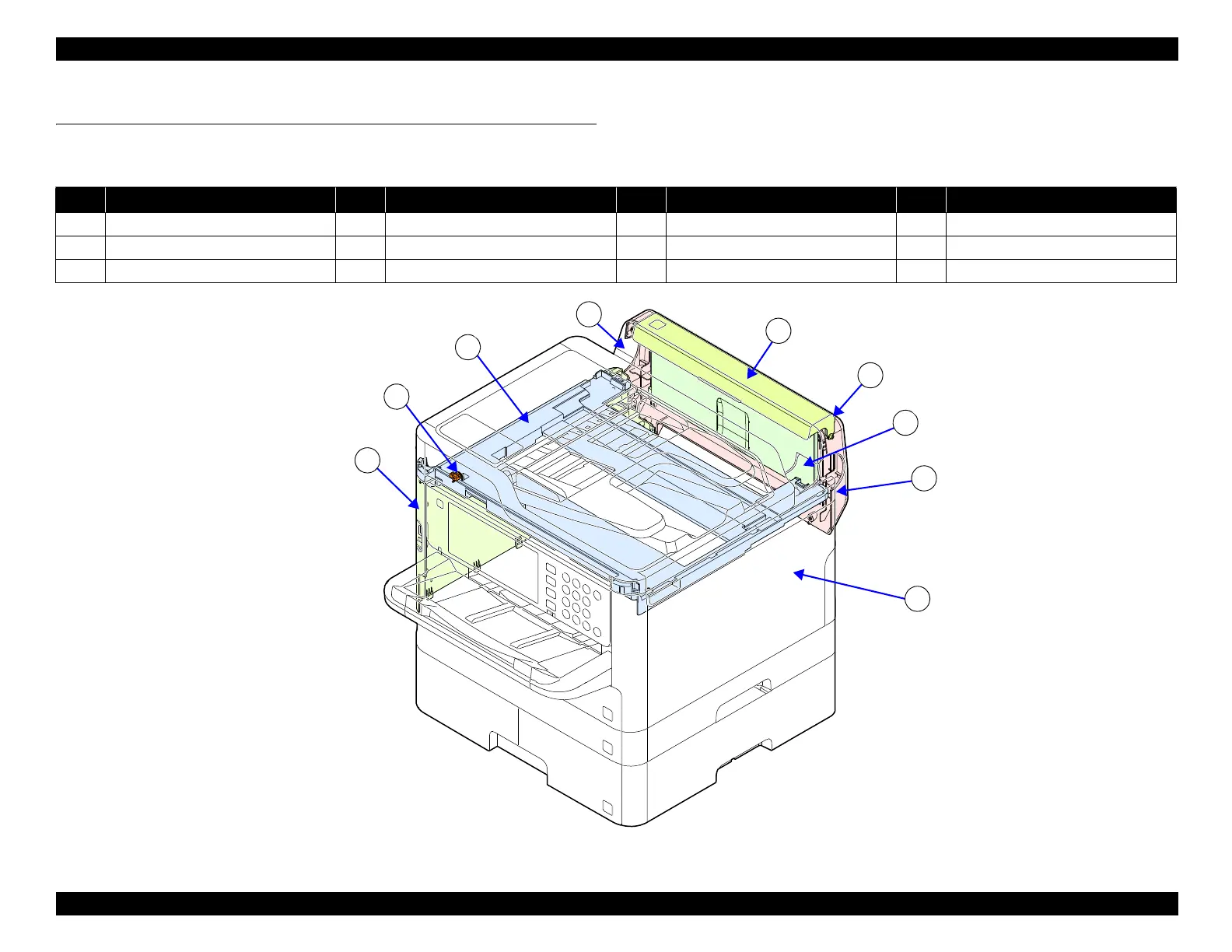

Figure 6-2. Housing (WF-C5700 Series/ET-8700)
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1 Housing Left (p. 239) 4 ASF Front Cover (p. 239) 7 Paper Guide (p. 245) 10 ---
2 Cover Open Sensor (p. 239) 5 ASF Cover (p. 245) 8 Housing Rear (p. 245) 11 ---
3 Housing Upper (p. 239) 6 Rear Cover (Back) (p. 245) 9 Housing Right (p. 239) 12 ---
1
5
9
2
3
6
7
8
4
