Epson WF-C5210 - Printer Main Unit (Motors and Solenoids)

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 35
Confidential
3.2.1 Printer Main Unit (Motors and solenoids)

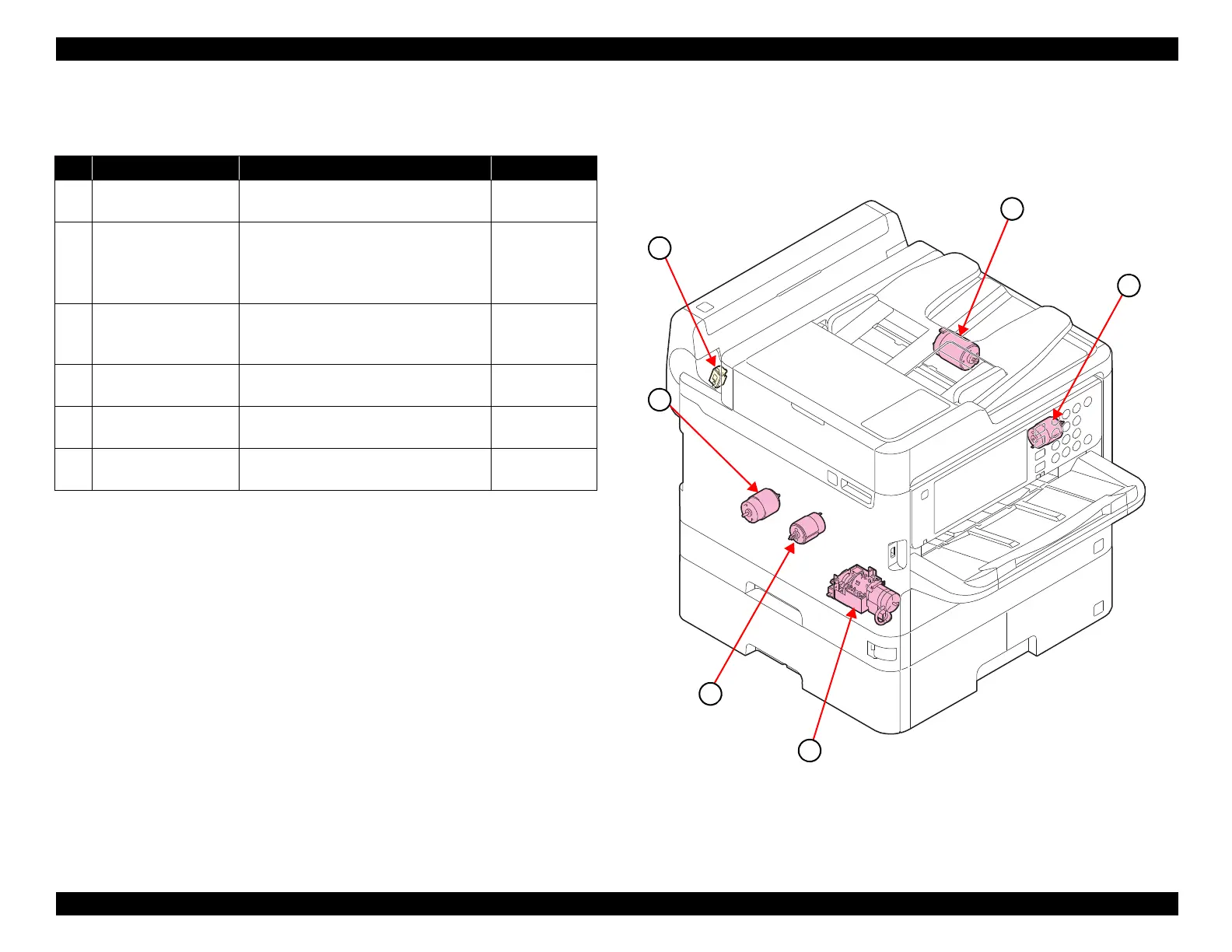

Figure 3-12. Printer Main Unit (Motors and solenoids)
Table 3-12. Motors and solenoids
No. Name Function Type
1 CR Motor Used for CR operation driving.
DC motor
(42VDC±5%)
2ASF Motor
Used for driving the feed mechanism.
 Pickup Roller
 Rear ASF Unit
 Rear Unit
DC motor
(42VDC±5%)
3PF Motor
 Used for feed and delivery roller
driving.
 Used for driving the APG lever.
DC motor
(42VDC±5%)
4 Decompression Motor
Used for supplying ink from the ink packs
to the buffer of the ink supply unit.
DC motor
(42VDC±5%)
5 I/S Motor
Used for driving the pump of Inksystem
Unit.
DC motor
(42VDC±5%)
A Rear ASF Solenoid
Performs switching of the ASF motor
drive transmission to the rear ASF unit.
---
1
3
2
5
4
A
