Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 50
Confidential
3.3.3.3 Detail of Paper Loading/Feed Mechanism
PRINTER MAIN UNIT
Lift-up mechanism
This mechanism lifts up the paper set in the paper cassette up to the paper
pickup position by the pickup mechanism.
The lift-up mechanism operates the Cassette Hopper by the force of the spring
provided inside the Paper Cassette.
When the Paper Cassette has been removed from the printer, the Cassette
Hopper is locked by the Hopper Lock present in the center part and the Hopper
Stopper on the left and right sides.
When you set the Paper Cassette in the printer, the Hopper Lock and Hopper
Stopper of the Paper Cassette come in contact with the Release Rib, and the
lock is released. The released Cassette Hopper rises due to the tension of the
spring.

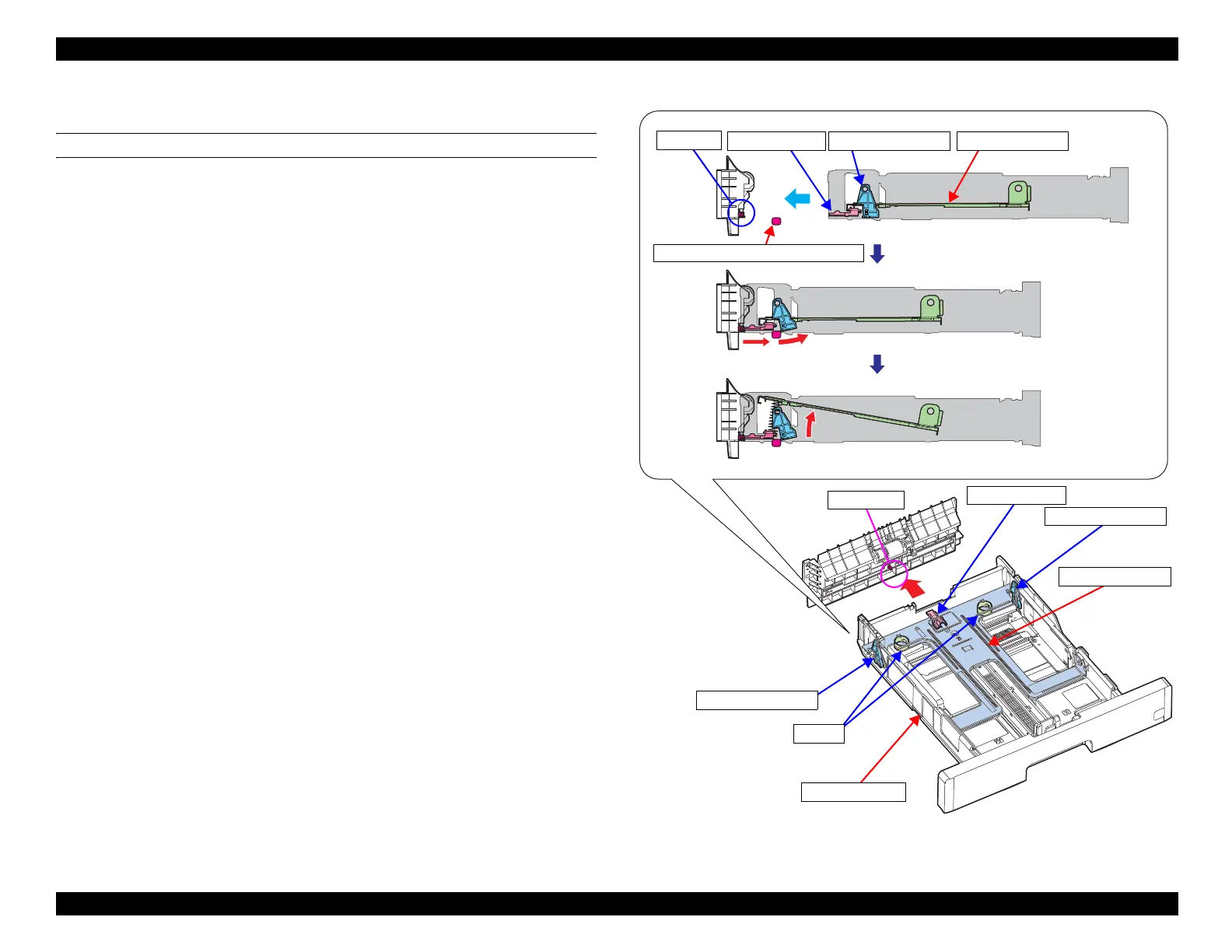

Figure 3-29. Lift-up mechanism
Paper Cassette 1
Release Rib
Hopper Stopper
Spring
Cassette HopperHopper Stopper
Release rib
Hopper Stopper
Hopper Lock
Hopper Lock
Cassette Hopper
Release Rib on Frame of main unit

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
