Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 36
Confidential
3.2.2 Printer Main Unit (Ink detection and cover detection system sensors)

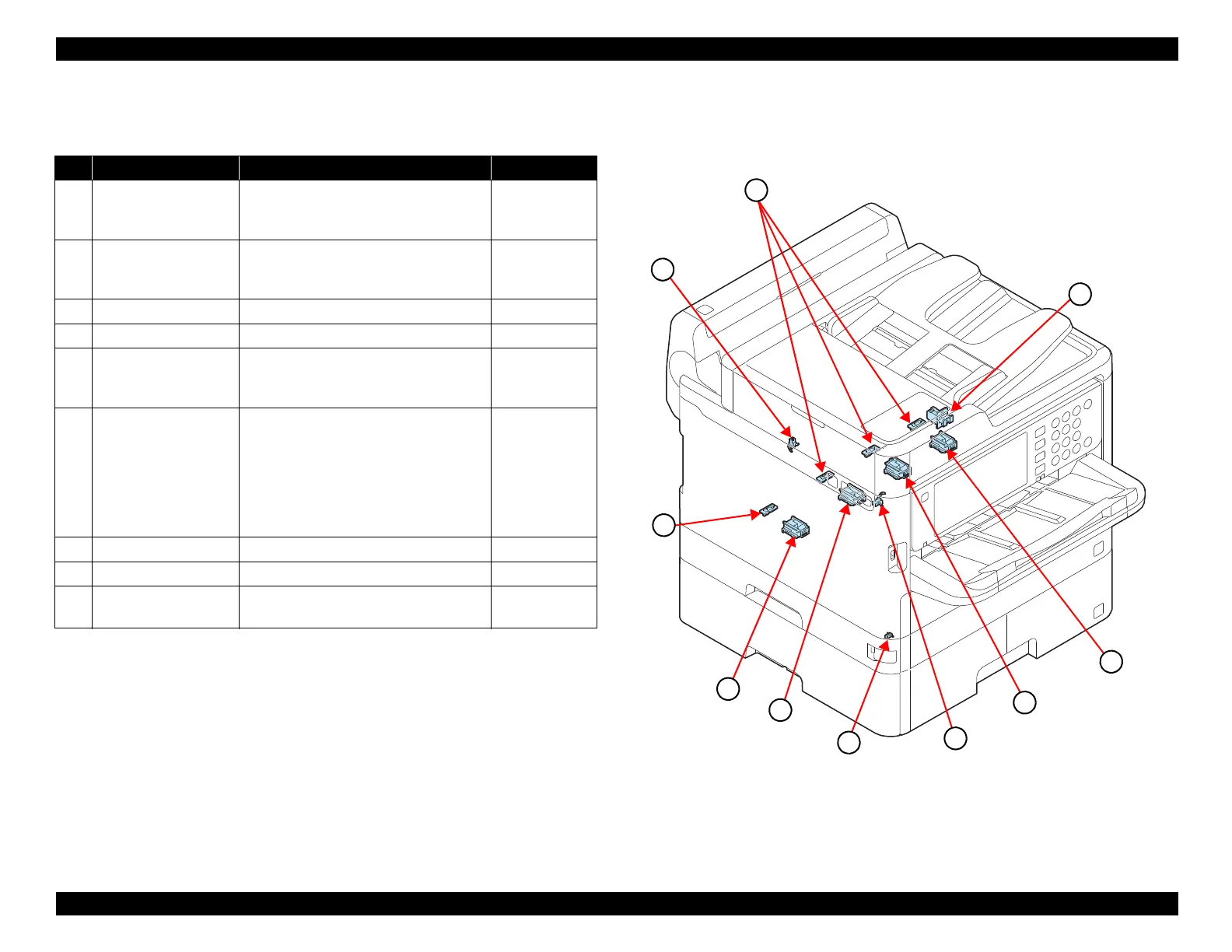

Figure 3-13. Ink detection and cover detection system sensors
Table 3-13. Ink detection and cover detection system sensors
No. Name Function Type
1 Ink End Sensor Detects the end of the ink.
Transmissive
photo-interrupter
(3.3VDC±5%)
2
Rear Unit Detection
Sensor
Detects the installation state of the Rear
Unit.
Mechanical
contact
(3.3VDC±5%)
3 Ink Pack Sensor (Bk) Used for ink pack (black) recognition. CSIC
4 Ink Pack Sensor (Y) Used for ink pack (yellow) recognition. CSIC
5
Front Cover Open
Sensor
Detects the open/closed state of the front
cover.
Mechanical
contact
(3.3VDC±5%)
6
ADF/SCN Open Sensor
(WF-C5790/WF-C5790a/
WF-C5710/ET-8700)
Printer Cover Open
Sensor (WF-C5210/
WF-C5290/WF-
C5290a)
Detects the open/closed state of the ADF/
SCN unit or the printer cover.
Mechanical
contact
(3.3VDC±5%)
7 Ink Pack Sensor (M) Used for ink pack (magenta) recognition. CSIC
8 Ink Pack Sensor (C) Used for ink pack (cyan) recognition. CSIC
9
Maintenance Box
Sensor
Used for maintenance box recognition. CSIC
3
4
7
8
9
1
5
2
1
6

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
