Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 400
Confidential

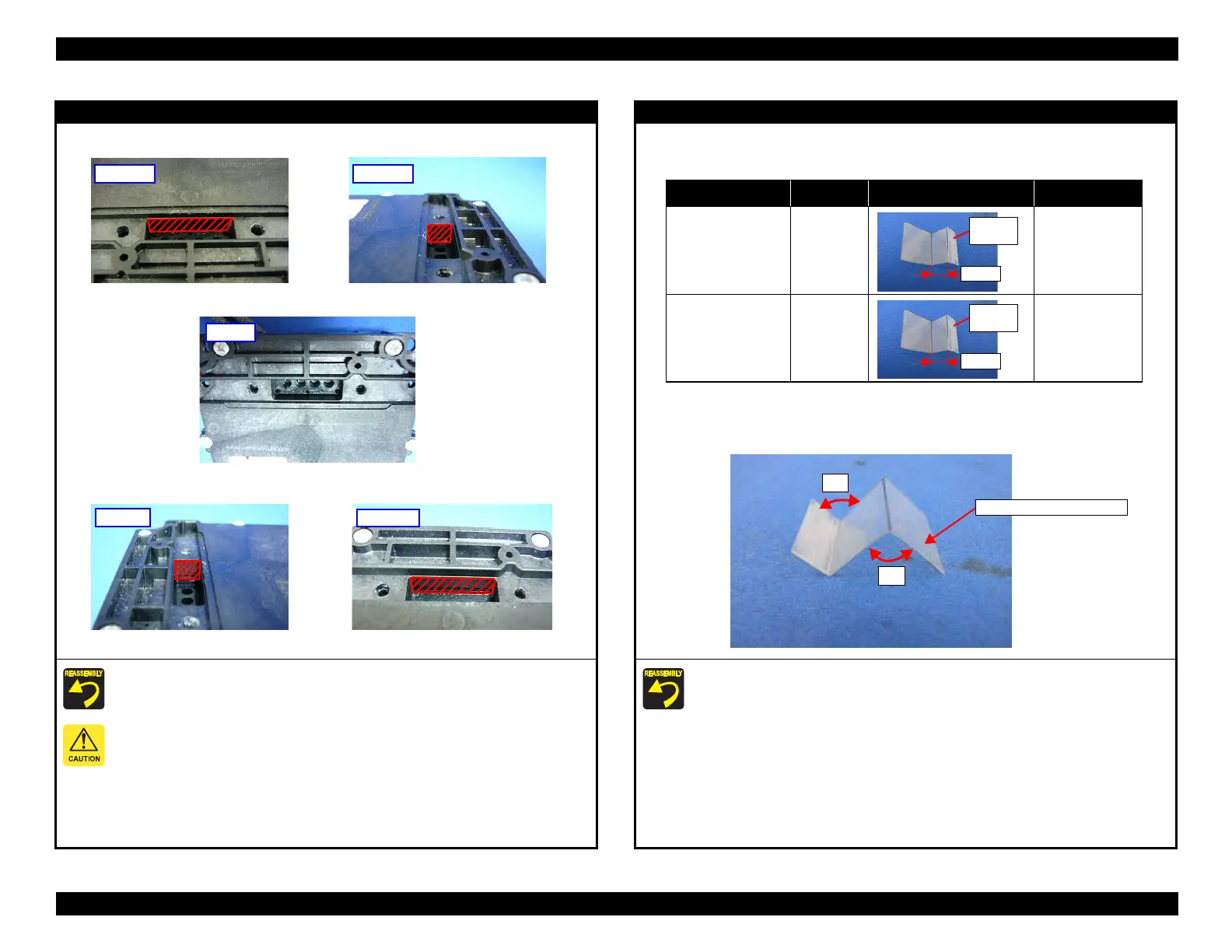

Ink Supply Tube
Make sure to clean the Ink tube joint part of Printhead by using the Cleaning stick,
because perform the Ink Leak Check correctly.
If ink is remained to ink tube joint part of Printhead, Ink Leak Check can not perform
correctly.
Therefore cleaning the ink surely.
Rear side
Right side
Left side
Bottom
Front side
Ink Supply Tube
In this product, Ink Leak Check is necessary to prevent the ink leakage due to
assembly mistake.
Therefore, make sure to install the ink leak measurement jig when installing the Ink
Tube to Printhead.
Before using the Leak Check Jig, push the ink leak measurement jig along the folds
until the fold angle become 90 degrees.
 Types of Ink Leak Measurement Jig
Part Name Part Code Photo Remark
LEAK TESTER
SHEET FRONT
1684353
LEAK TESTER
SHEET REAR
1684354
Smoked
Face
10mm
Smoked
Face
15mm
90°
Ink Leak Measurement Jig
90°
