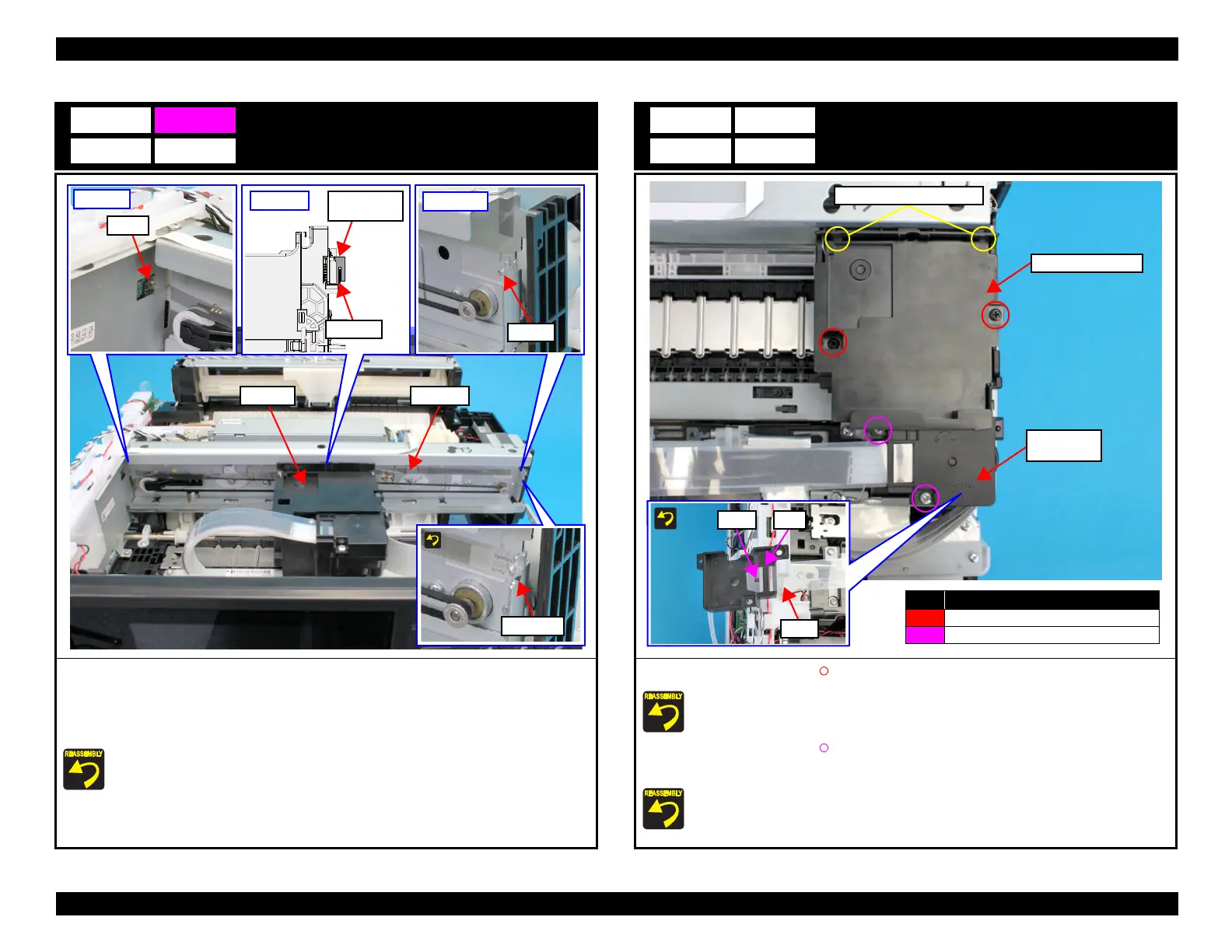

CR Scale
1. At the full side, remove the CR Scale from hook on the frame.
2. Pull the CR Scale out from the CR Encoder Sensor.
3. At the home side, turn the CR Scale 90 degrees upward, and remove it from the hook on the
frame.
Attach the CR Scale with the marking on the bottom right corner.
B9
Hook
Full side
CR Encoder
Sensor
Side view
CR Scale
Hook
Home side
CR Scale
CR Unit
Marking
Head Upper Cover
1. Remove the two screws (S7: ), and remove the Head Upper Cover.
Attach the two tabs on the Head Upper Cover to the positioning holes of the CR Unit.
2. Remove the two screws (S4: ), and remove the Ink Tube Joint Cover.
3. Remove the film from the hook on the Ink Tube Joint Cover.
Set the film under the rib of the Ink Tube Joint Cover.
C8 D8
Head Upper Cover
No. Screw Type
S7
C.B.P-TITE-SCREW-3x10-F.ZB-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Ink Tube
Joint Cover
Tabs and positioning holes
Hook Rib
Film
