ADF/SCN Unit

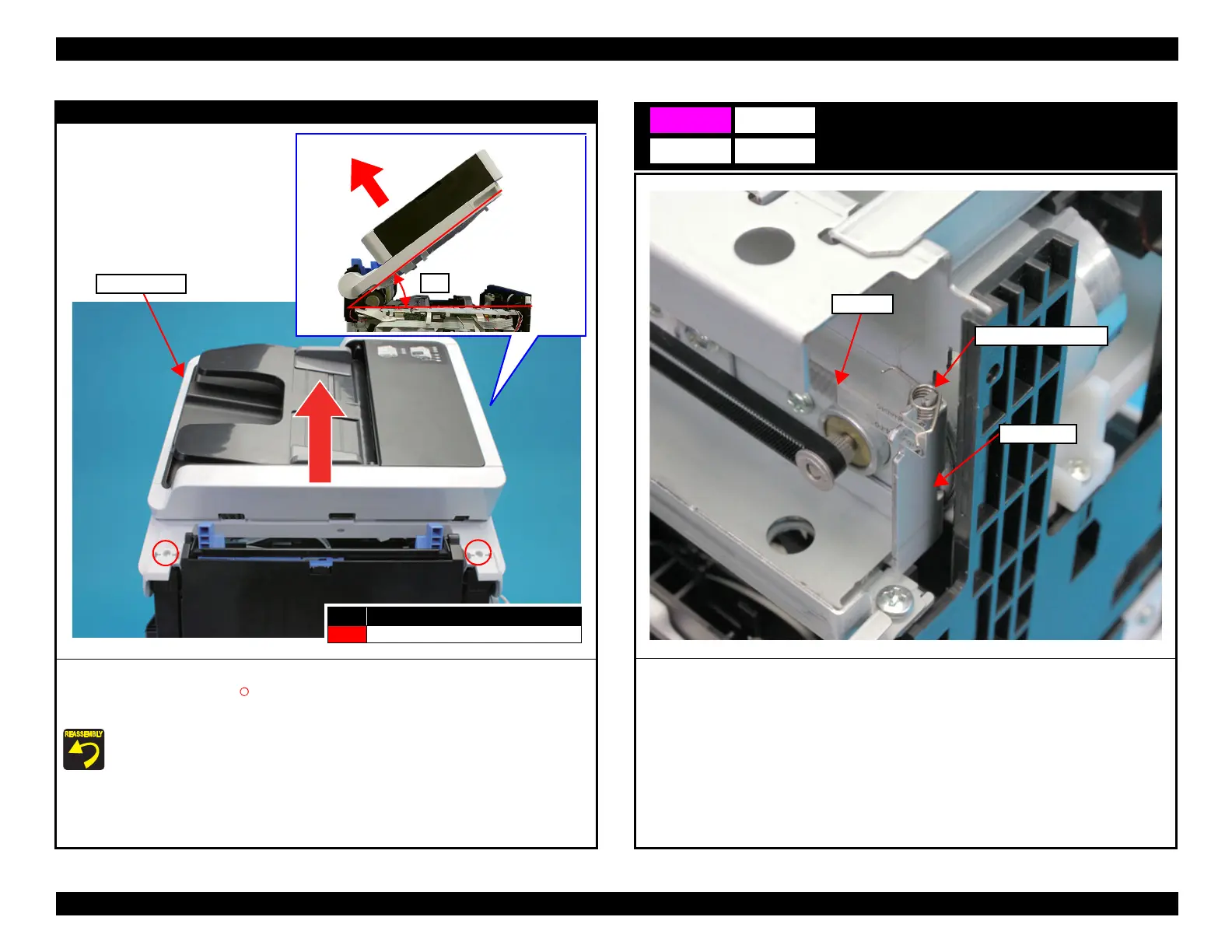

3. Open the ADF/SCN Unit.
4. Remove the two screws (S4: ), then remove the ADF/SCN Unit in the direction of the
arrow.
 Before screwing the ADF/SCN Unit, make sure the hinges are properly attached in place.
 If the ADF/SCN Unit is opened when the hinges are NOT secured, the unit may be damaged.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
ADF/SCN Unit
45 °
Extension Spring 11.11
1. Remove the Extension Spring 11.11 from the CR Scale.
2. Remove the Extension Spring 11.11 from the Main Frame.
A8 B8
Extension Spring 11.11
CR Scale
Main Frame
