Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 227
Confidential

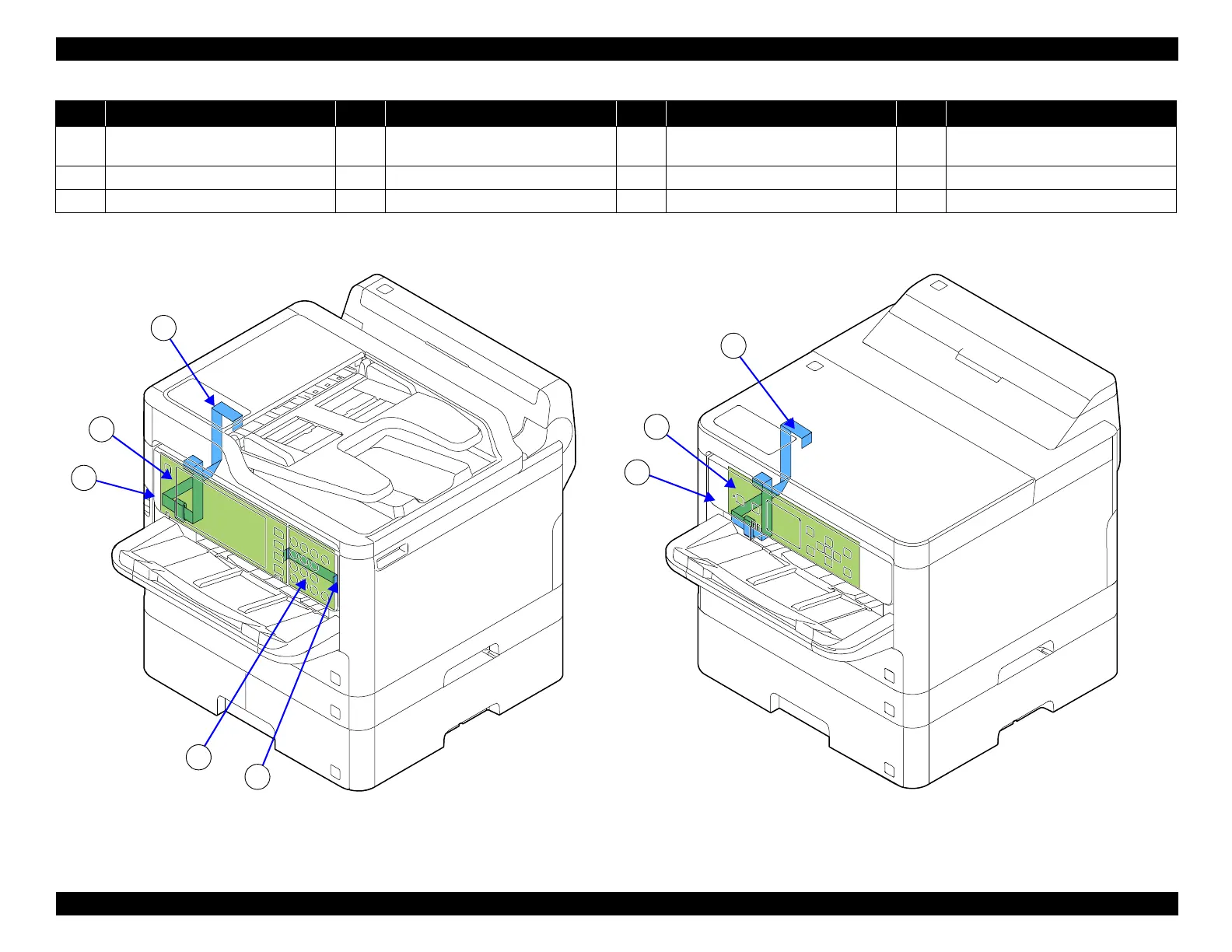

Figure 6-8. Electrical Components (2)
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1 Panel Assy (p. 358) 4
Relay Cable (Panel to Numpad) (p.
358)
7 Panel Board (p. 368) 10 ---
2 Panel Board (p. 358) 5 Numpad Board Assy (p. 358) 8 Relay Cable (Panel to Main) (p. 368) 11 ---
3 Relay Cable (Panel to Main) (p. 358) 6 Panel Assy (p. 368) 9 --- 12 ---
2
4
7
8
5
3
1
6
WF-C5700 Series/ET-8700 WF-C5200 Series

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
