Configuration and operating principles Product Configuration (Name of Each Part) 24
Confidential

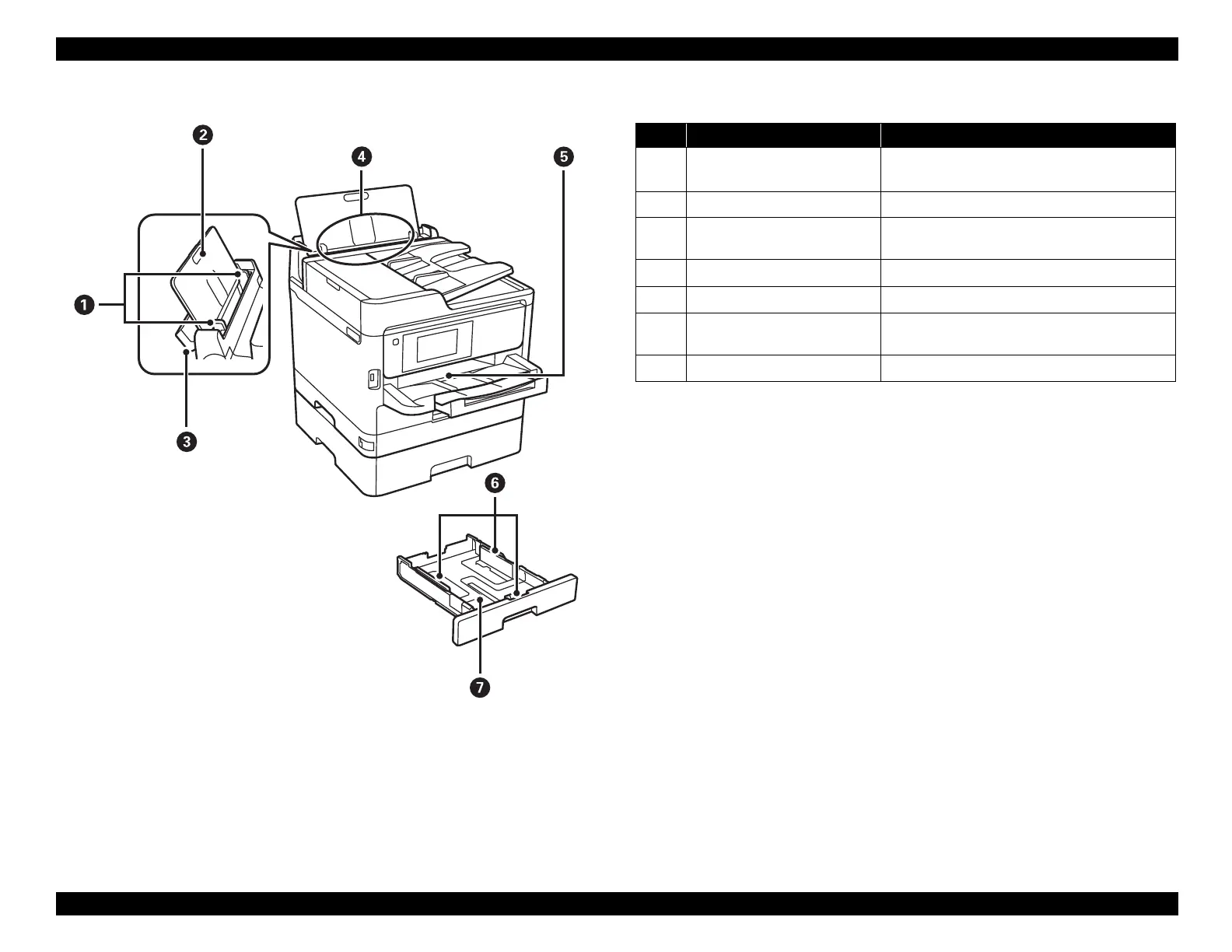

Figure 3-2. Name of Each Part
Table 3-2. Name of Each Part
No. Name Description
1 Edge guides
Feeds the paper straight into the printer.
Slide to the edges of the paper.
2 Paper support Supports loaded paper.
3 Feeder guard
Prevents foreign substance from entering the
printer. Usually keep this guard closed.
4 Rear paper feed (B) Loads paper.
5 Output tray Holds the ejected paper.
6 Edge guides
Feeds the paper straight into the printer. Slide to
the edges of the paper.
7 Paper cassette Loads paper.
