Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 276
Confidential

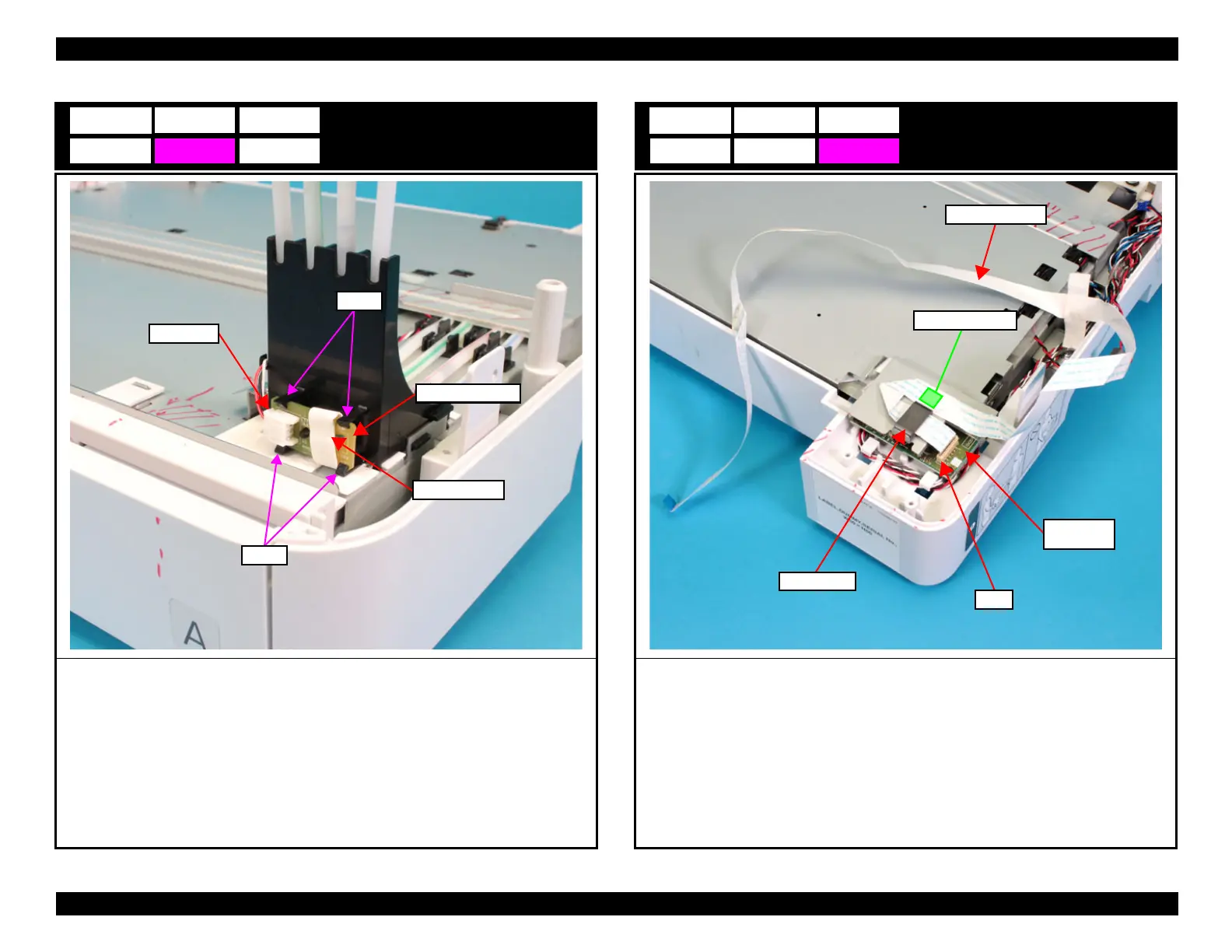

Ink Leak Sensor
1. Disconnect the cable from the connector.
2. Remove the Ink Porous Pad from the Ink Leak Sensor.
3. Disengage four hooks, then remove the Ink Leak Sensor.
E13
Ink Porous Pad
Connector
Ink Leak Sensor
Hooks
Hooks
Ink Sensor FFC
1. Disconnect the Ink Sensor FFC from the connector (CN1) on the Ink Sensor YMCBk.
2. Pull the Ink Sensor FFC from the ferrite core.
3. Peel off the Ink Sensor FFC from the frame.
F13
CN1
Ink Sensor
YMCBk
Ferrite core
Ink Sensor FFC
Double-sided tape

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
