Fax Assy

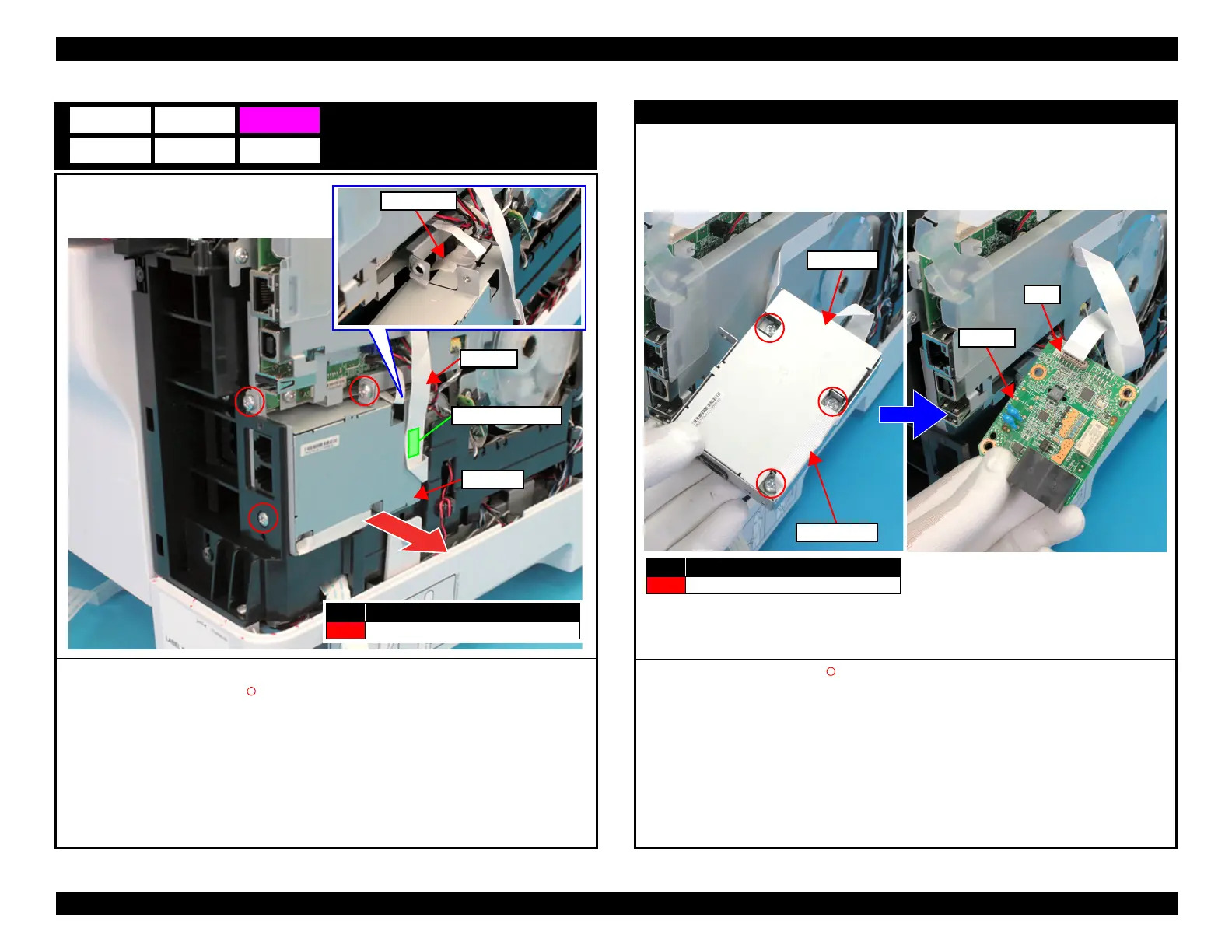

1. Peel off the Fax FFC from the Fax Assy.
2. Remove the three screws (S5: ), and slide the Fax Assy in the direction of the arrow.
3. Peel off a piece of acetate tape, then remove the Fax Assy.
C4
Fax Assy
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Acetate tape
Fax FFC
Double-sided tape
Fax Assy
4. Remove the three screws (S5: ) that secure the Shield Plate.
5. Peel off a piece of acetate tape, and remove the Shield Plate.
6. Disconnect the FFC from the connector (CN1) on the Fax Assy.
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Acetate tape
Shield Plate
Fax Assy
CN1
