Housing Upper

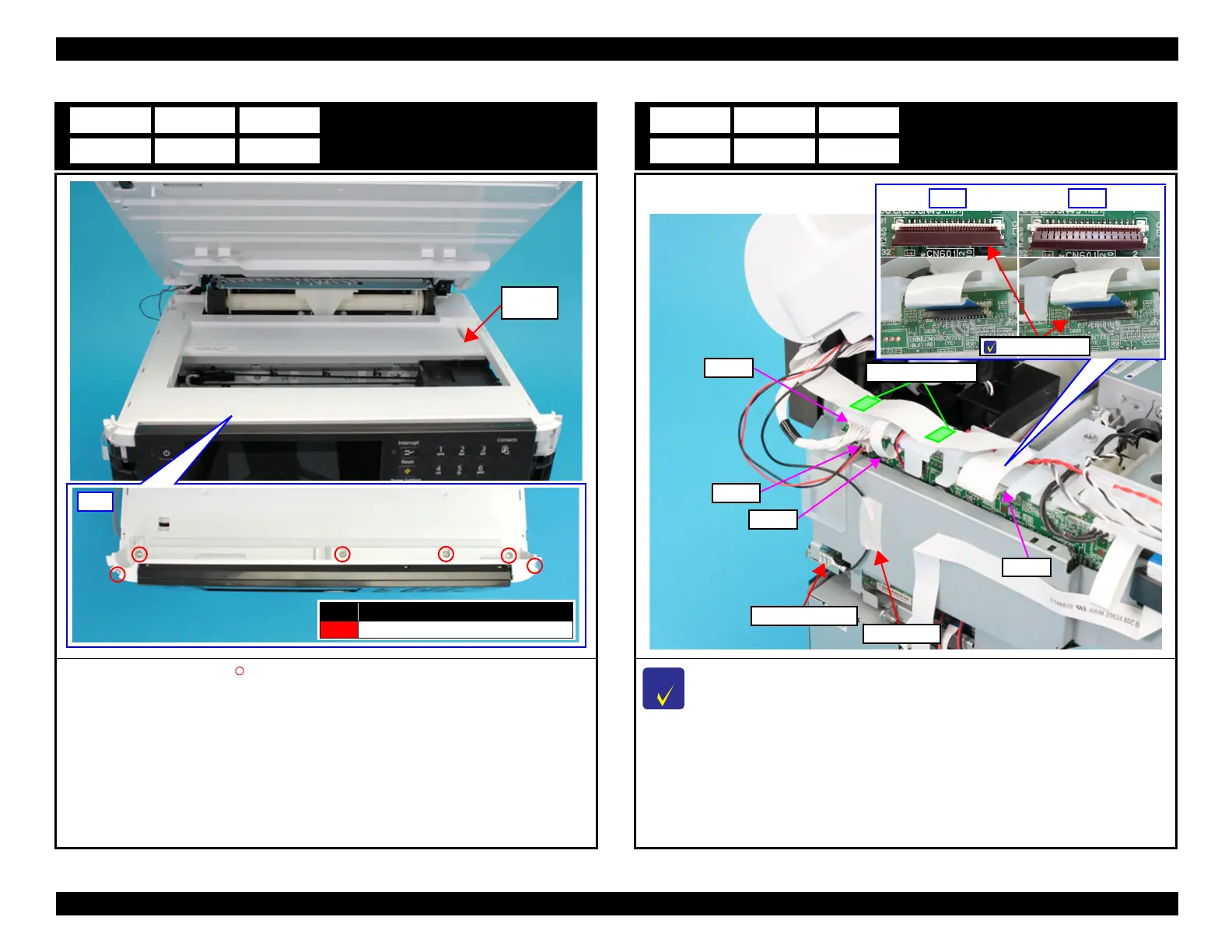

1. Remove the six screws (S4: ), then remove the Housing Upper.
F6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Top
Housing
Upper
ADF/SCN Unit
C H E C K
P O I N T
When disconnecting the CISM FFC (CN601) from this connector, make sure to
unlock the connector lock beforehand.
1. Disconnect the cables and FFCs from following connectors on the Main Board.
2. Peel off the acetate tape, then remove the grounding cable.
F7
Grounding cable
Acetate tape
Double-sided tape
CN801
CN612
CN606
CN601
Open Close
Connector Lock
•CN601 • CN606 •CN612 • CN801
