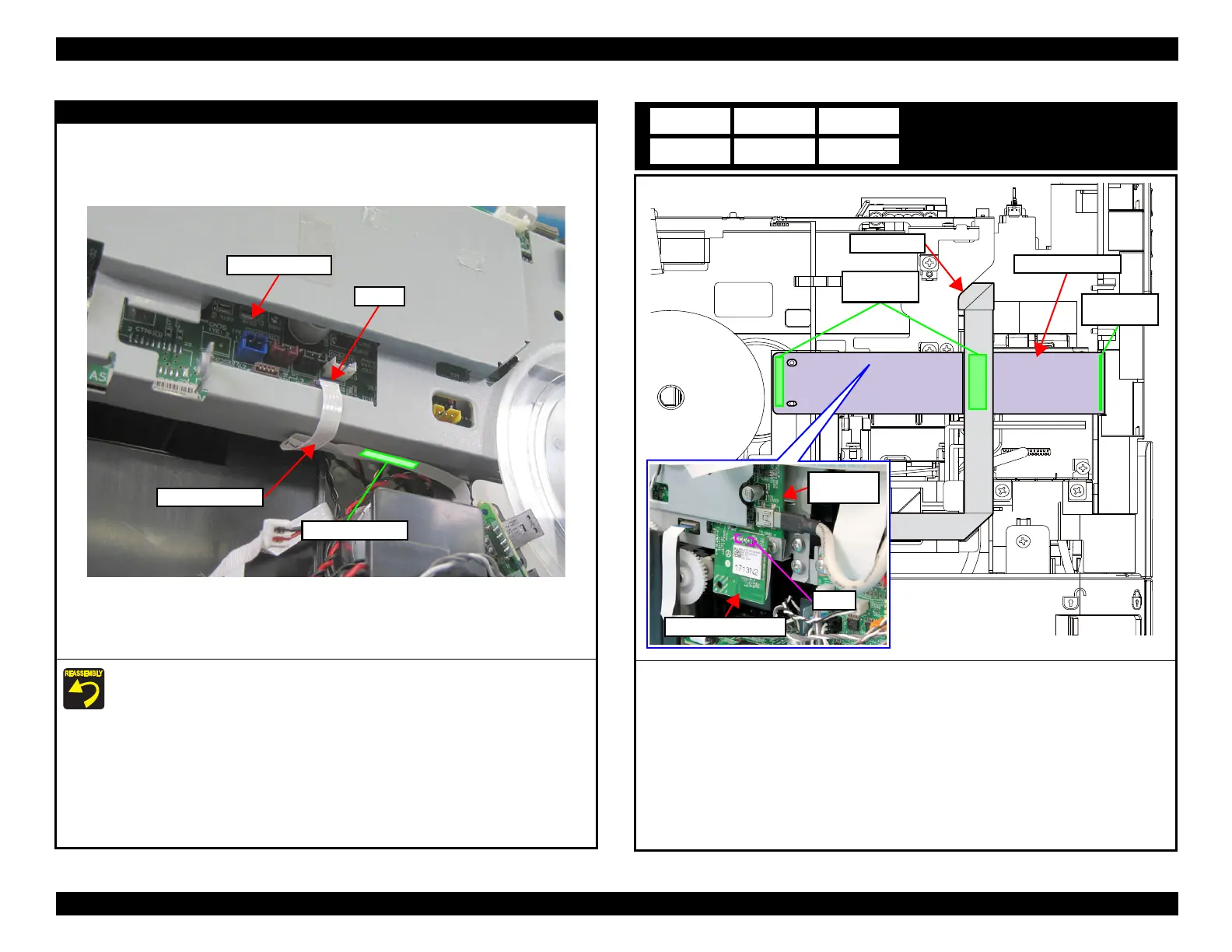

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 343
Confidential
Main Board Assy
Secure the PF Encoder FFC with double-sided tape as shown above.
PF Encoder FFC
Main Board Assy
CN52
Double-sided tape
Wireless Lan Module
1. Peel off the CRCM FFC from the CRCM FFC Sheet.
2. Peel off the CRCM FFC Sheet.
3. Disconnect the Wireless Lan Module from the connector (CN31) on the Main Board Assy.
F15
Wireless Lan Module
Main Board
Assy
CN31
CRCM FFC
CRCM FFC Sheet
Double-sided
tape
Double-sided
tape
