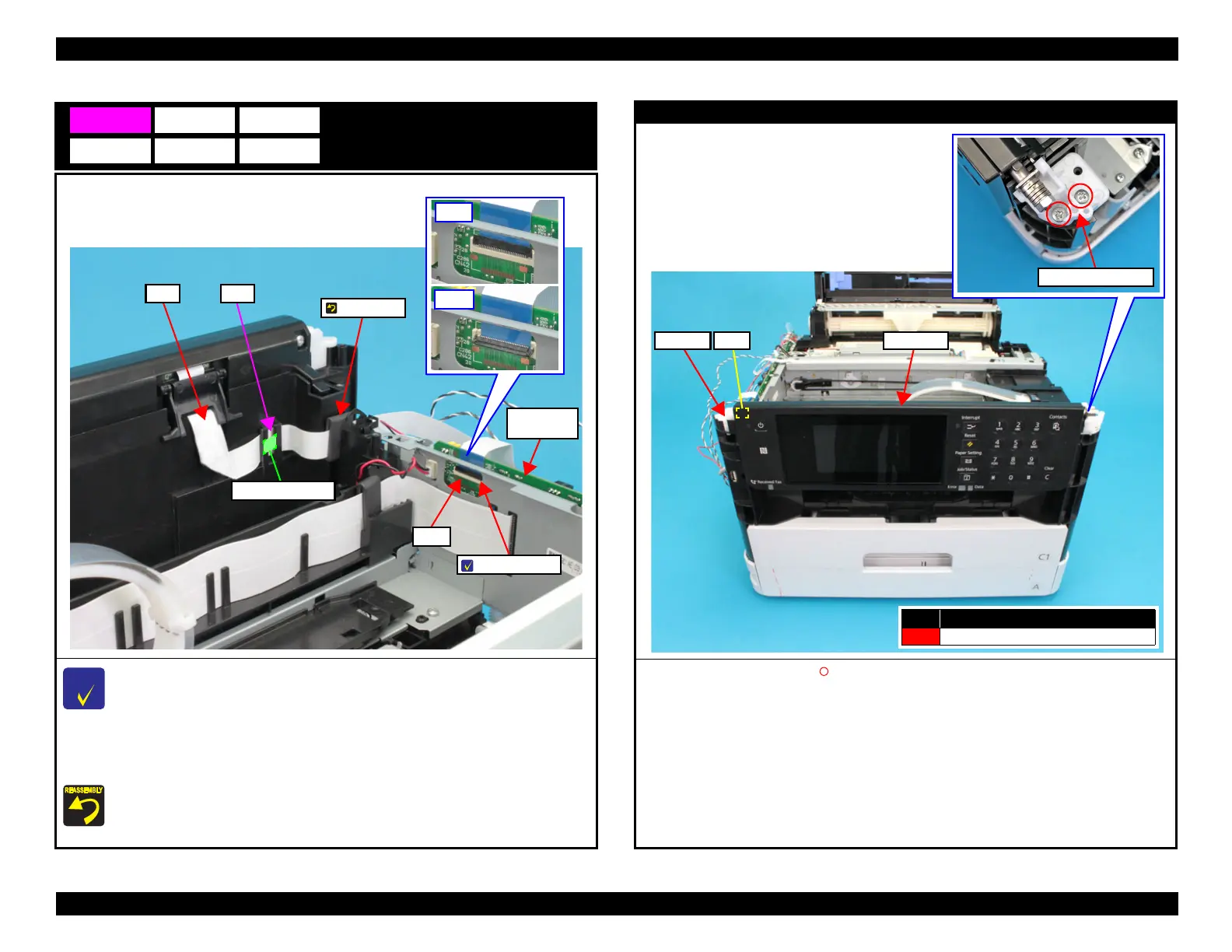

Panel Assy
C H E C K
P O I N T
When disconnecting the FFC, make sure to unlock the connector lock beforehand.
1. Disconnect the FFC from the connector (CN42) on the Main Board Assy.
2. Peel off the FFC from the Frame Base.
3. Release the FFC from two tabs on the Frame Base.
Set the ferrite core of the FFC in the point shown above.
A8 B8
D8 E8
C8
Close
Open
Ferrite core
FFC
CN42
Main Board
Assy
Double-sided tape
Tab
Connector lock
Panel Assy
4. Remove the two screws (S4: ), then remove the Right Panel Holder.
5. Release the shaft of the Panel Assy from bearing, then remove the Panel Assy.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Panel Assy
Right Panel Holder
Bearing
Shaft
