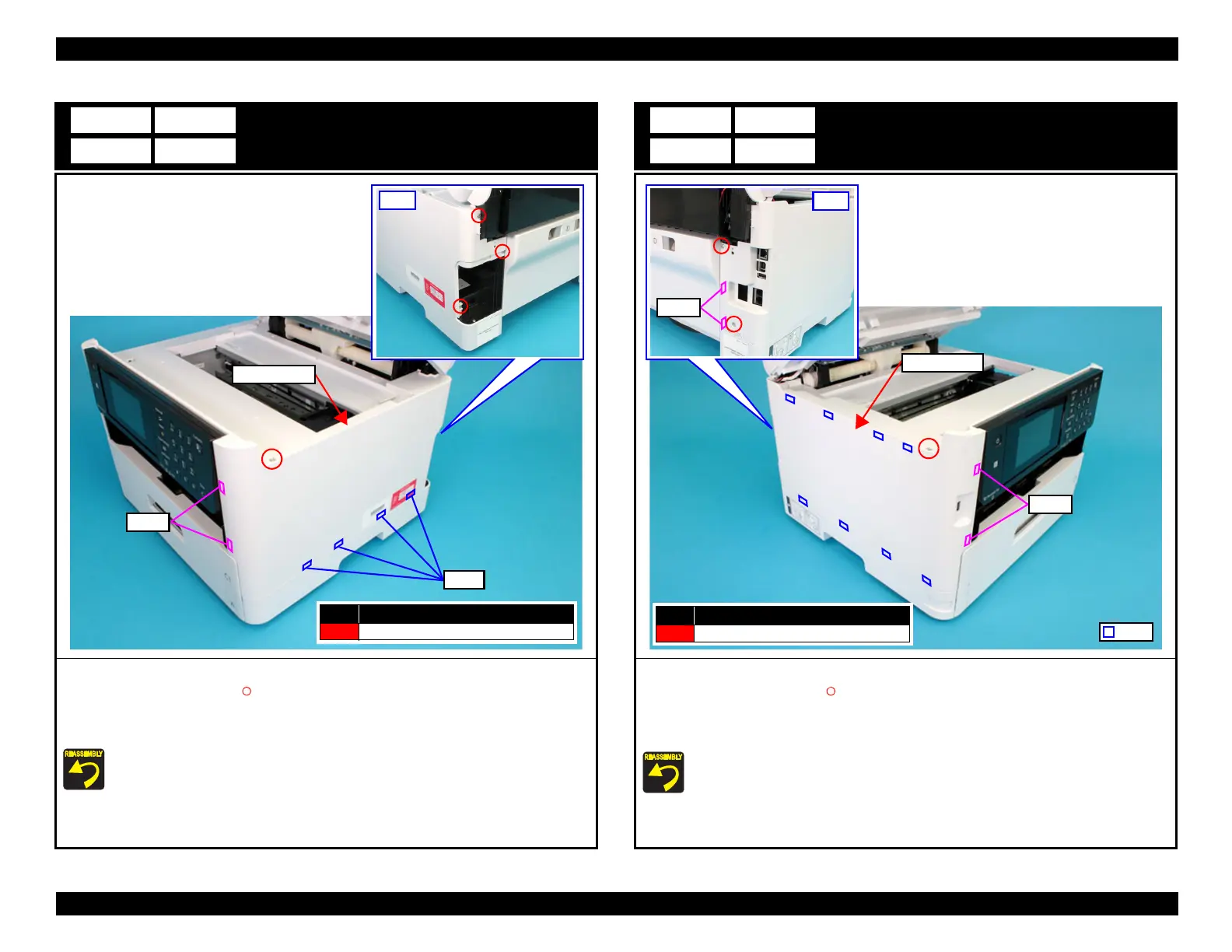

Housing Right
1. Open the ADF/SCN Unit.
2. Remove the four screws (S4: ) that secure the Housing Right.
3. Lift the Housing Right to release the two hooks on the front side of the Housing Right, then
remove the Housing Right.
Insert the four tabs of the Housing Right to the positioning holes on the Ink Supply
Unit.
B4
C4 D4
Housing Right
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Rear
Hooks
Tabs
Housing Left
1. Open the ADF/SCN Unit.
2. Remove the three screws (S4: ) that secure the Housing Left.
3. Lift the Housing Left to release the two hooks on the front side of the Housing Left.
4. Disengage two hooks on the rear side of the Housing Left, and remove the Housing Left.
Insert the eight tabs on the Housing Left to the positioning hokes of the Housing
Upper and the Ink Supply Unit.
B5
C5 D5
Housing Left
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hooks
Rear
Hooks
Tab
