EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 388
Confidential

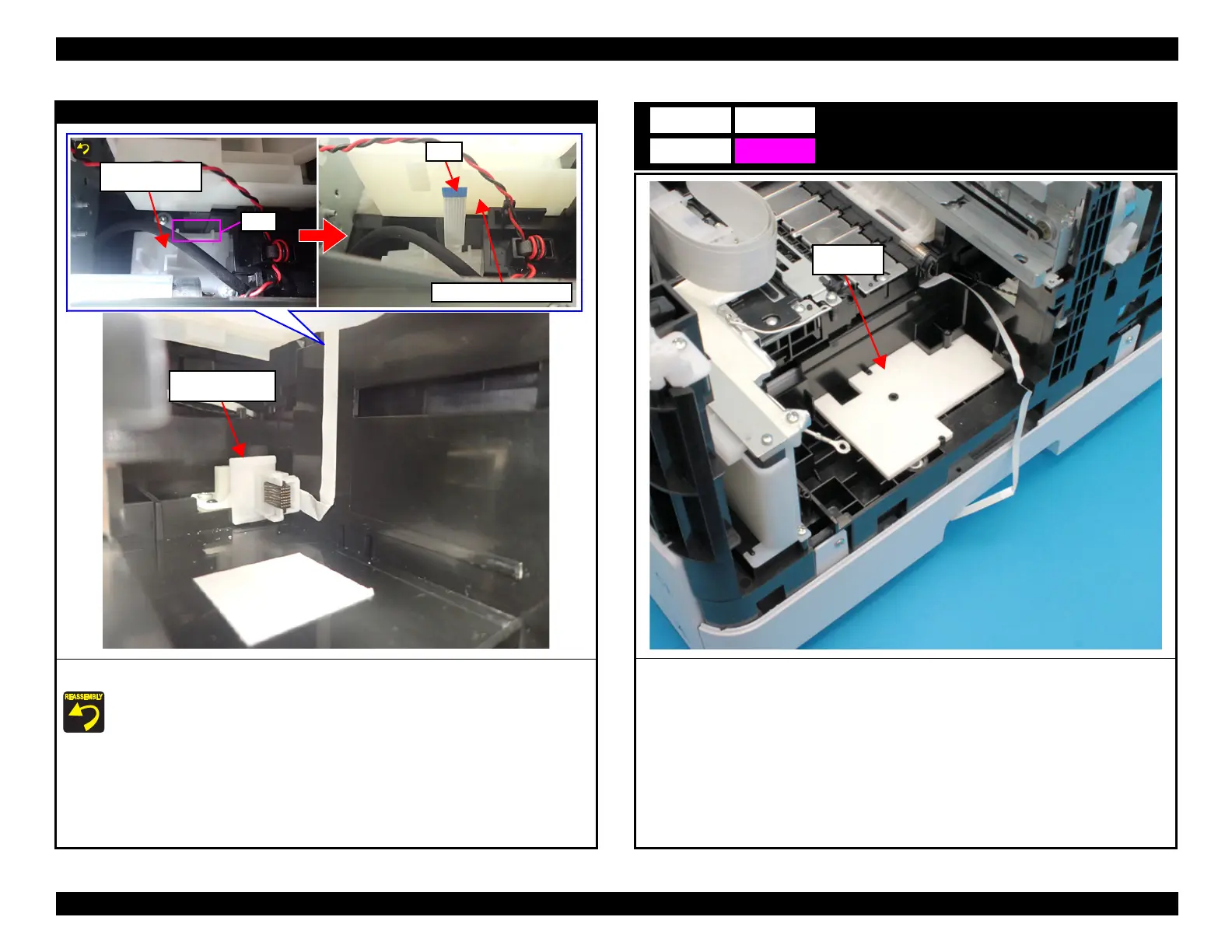

Maintenance Box Detect Sensor Assy
5. Remove the Maintenance Box Detect Sensor Assy from the maintenance box slot.
Route in such a way that the FFC terminal (contact surface) is at the side of the Paper
Feed Sensor Unit from the gap of the Maintenance Box Upper Cover.
Maintenance Box
Upper Cover
Gap
FFC
Paper Feed Sensor Unit
Maintenance Box
Detect Sensor Assy
Porous Pad Cap Lower
1. Remove the Porous Pad Cap Lower.
D10
Porous Pad
Cap Lower
