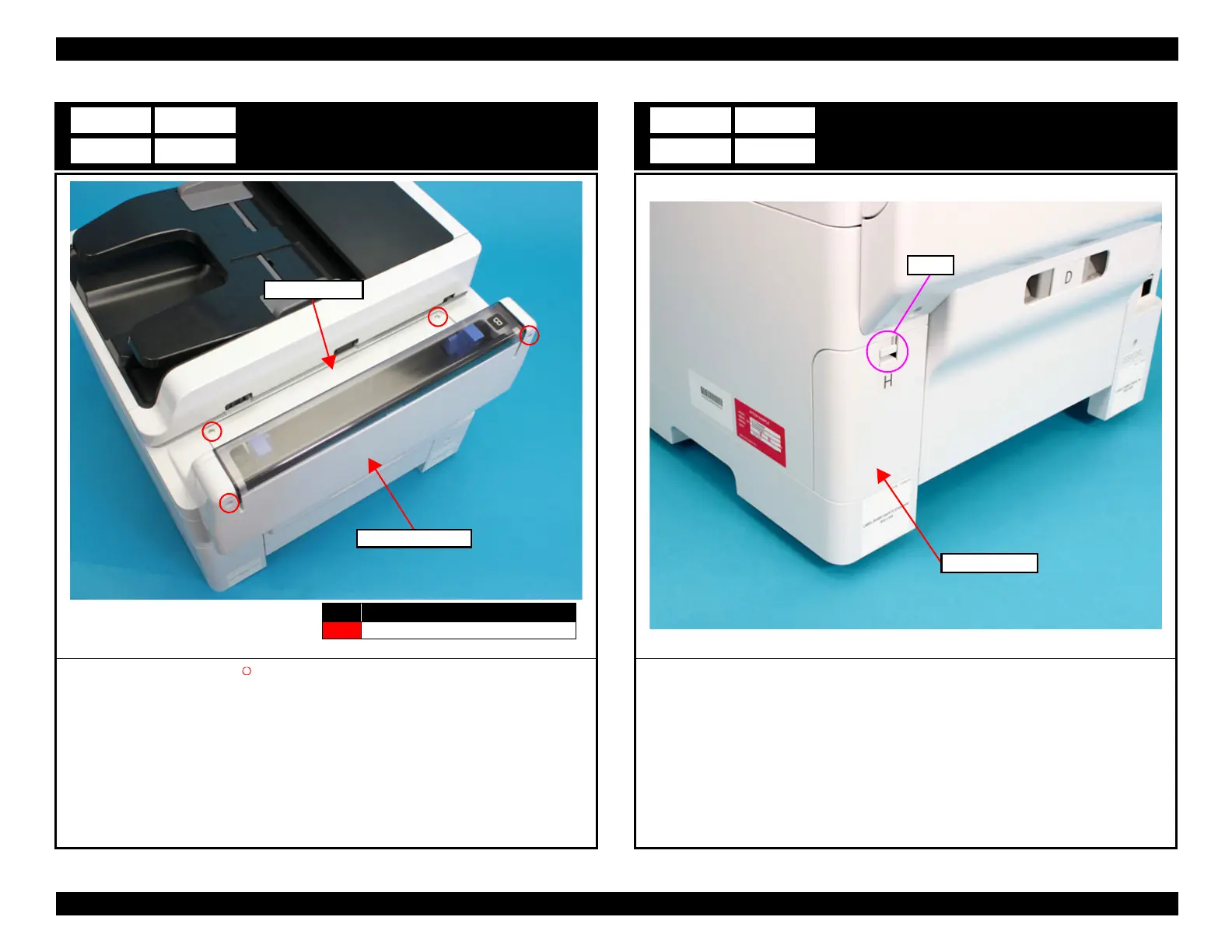

ASF Front Cover
1. Remove the four screws (S4: ) that secure the ASF Front Cover.
2. Remove the ASF Front Cover upward while slightly bending the Rear Cover (Back) toward
the back.
A2 B2
C2 D2
ASF Front Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Rear Cover (Back)
Ink Eject Cover
1. Disengage the hook, and remove the Ink Eject Cover.
A3 B3
C3 D3
Ink Eject Cover
Hook
