Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 402
Confidential

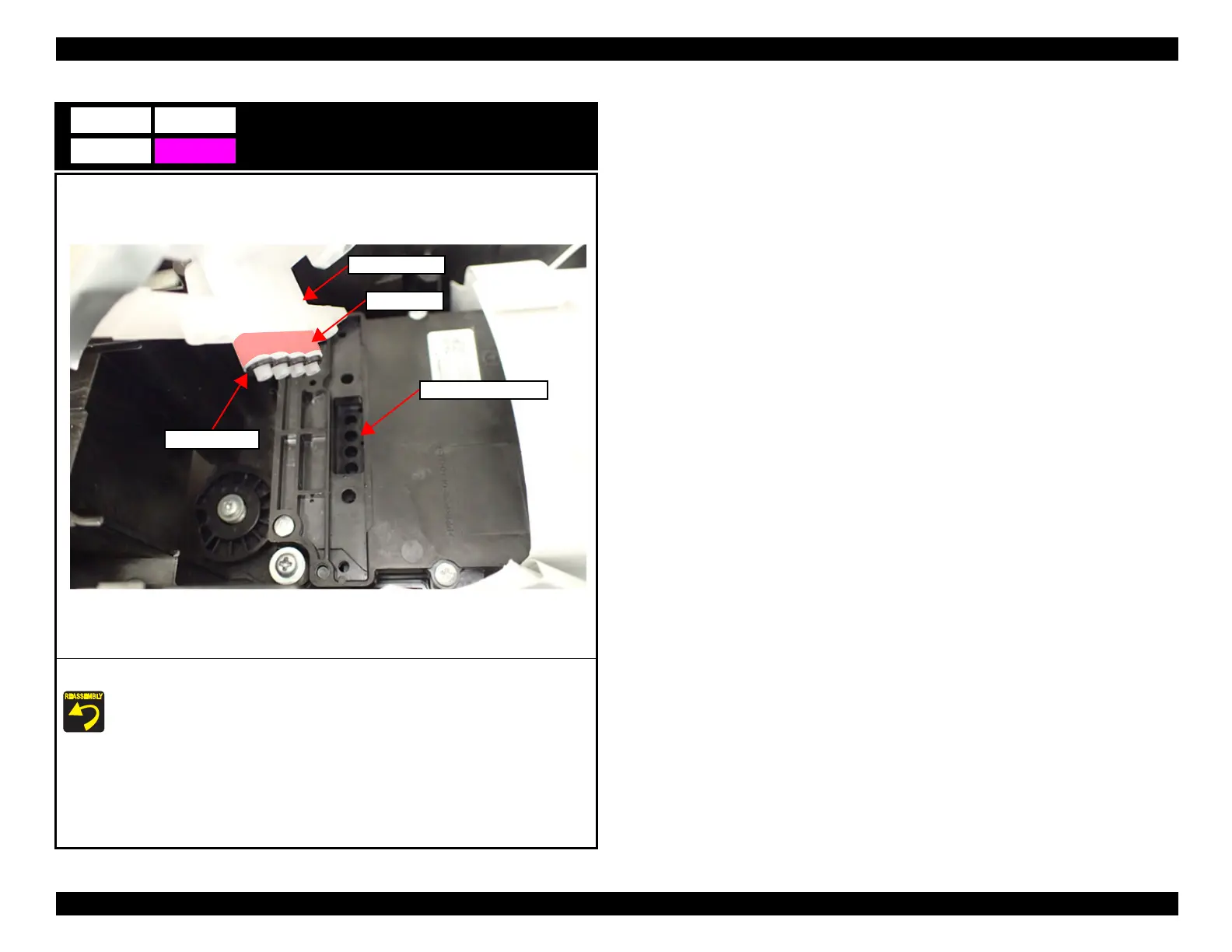

Seal Joint Head
1. Remove the Seal Joint Head between the Ink Supply Tube and Printhead.
 If ink is remained to ink tube joint part of Ink Supply Unit, Ink Leak Check can not perform
correctly. Therefore cleaning the ink surely.
 Replace the seal joint head with the new one because it cannot be reused.
 Check the seal joint head is not double-installed.
 Check the seal joint head is inserted all the way.
 Check the foreign object does not adhere on the seal joint head.
D11
Ink Supply Tube
Seal Joint Head
Wiping area
Printhead Connector

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
