Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 410
Confidential

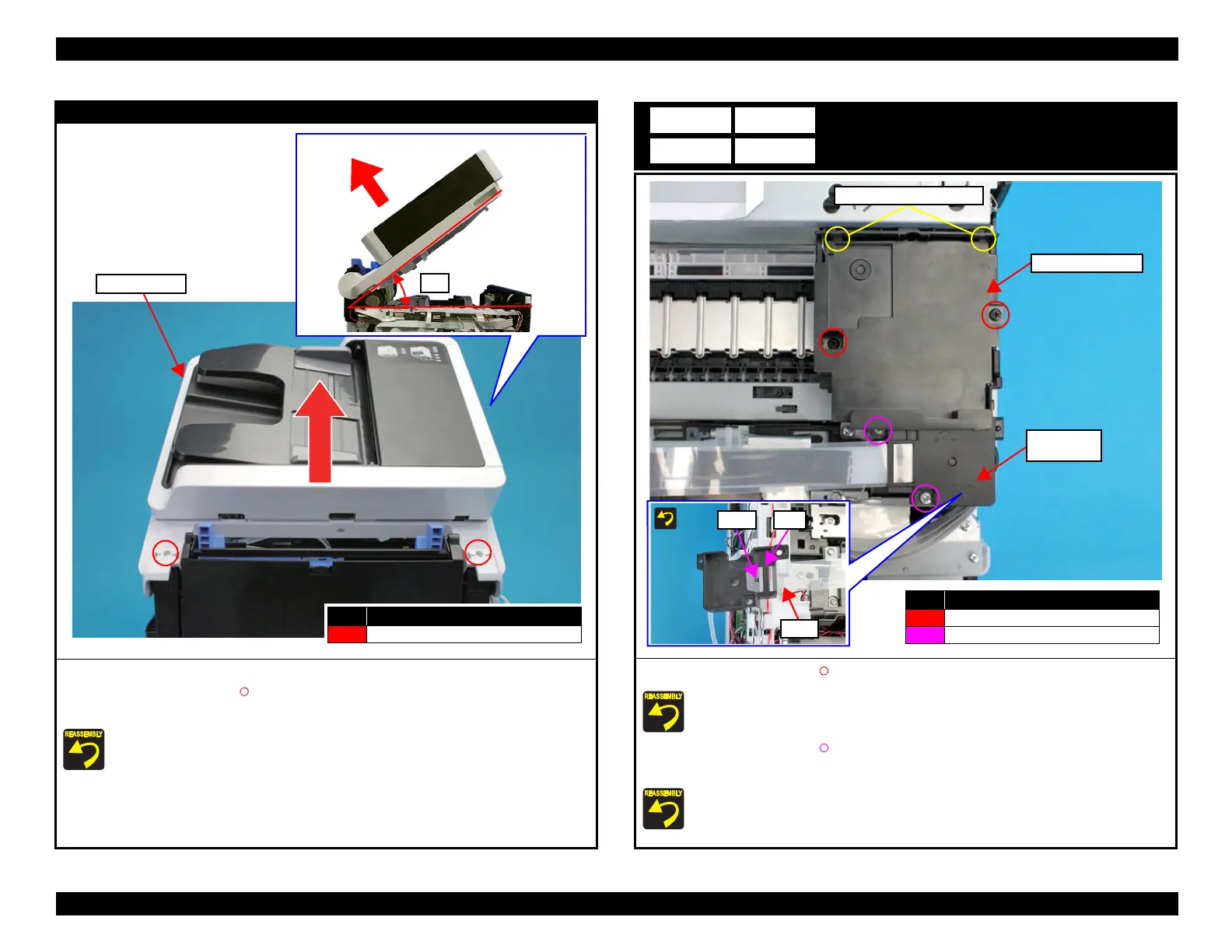

ADF/SCN Unit
3. Open the ADF/SCN Unit.
4. Remove the two screws (S4: ), then remove the ADF/SCN Unit in the direction of the
arrow.
 Before screwing the ADF/SCN Unit, make sure the hinges are properly attached in place.
 If the ADF/SCN Unit is opened when the hinges are NOT secured, the unit may be damaged.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
ADF/SCN Unit
45 °
Head Upper Cover
1. Remove the two screws (S7: ), and remove the Head Upper Cover.
Attach the two tabs on the Head Upper Cover to the positioning holes of the CR Unit.
2. Remove the two screws (S4: ), and remove the Ink Tube Joint Cover.
3. Remove the film from the hook on the Ink Tube Joint Cover.
Set the film under the rib of the Ink Tube Joint Cover.
A8 B8
C8
Head Upper Cover
No. Screw Type
S7
C.B.P-TITE-SCREW-3x10-F.ZB-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Ink Tube
Joint Cover
Tabs and positioning holes
Hook Rib
Film

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
