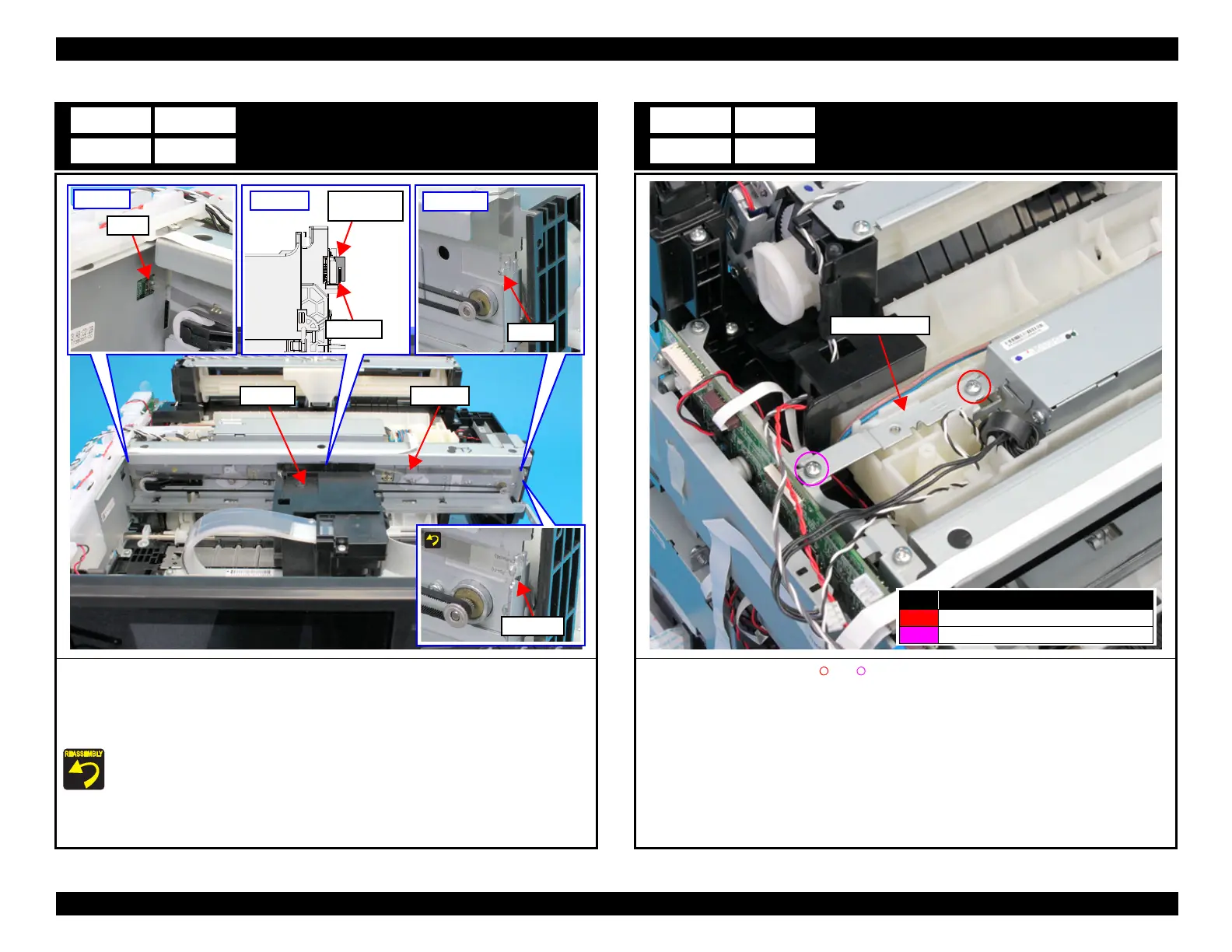

CR Scale
1. At the full side, remove the CR Scale from hook on the frame.
2. Pull the CR Scale out from the CR Encoder Sensor.
3. At the home side, turn the CR Scale 90 degrees upward, and remove it from the hook on the
frame.
Attach the CR Scale with the marking on the bottom right corner.
A12 B12
C12
Hook
Full side
CR Encoder
Sensor
Side view
CR Scale
Hook
Home side
CR Scale
CR Unit
Marking
PS Ground Plate
1. Remove the two screws (S4: , S5: ), then remove the PS Ground Plate.
A13 B13
C13
PS Ground Plate
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
