EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 429
Confidential

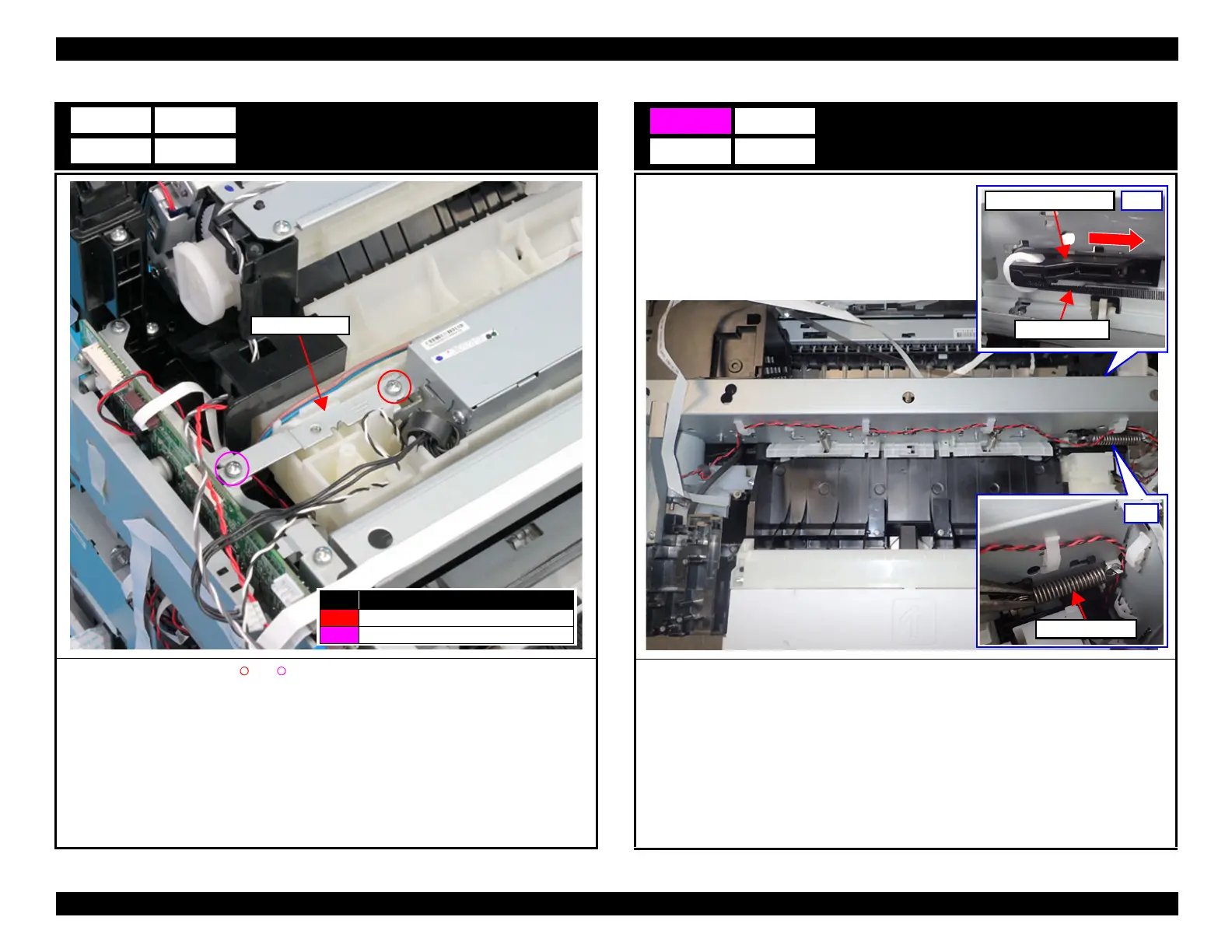

Rear ASF Upper Guide Assy
1. Remove the two screws (S4: , S5: ), then remove the PS Ground Plate.
A15 B15
C15
PS Ground Plate
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
CR Driven Pulley Assy
1. Slide the CR Driven Pulley Assy in the direction of the arrow to remove the CR Timing
Belt from the CR Driven Pulley Assy.
2. Remove the Extension Spring, then CR Driven Pulley Assy.
A16
Rear
Extension Spring
Front
CR Driven Pulley Assy
CR Timing Belt
