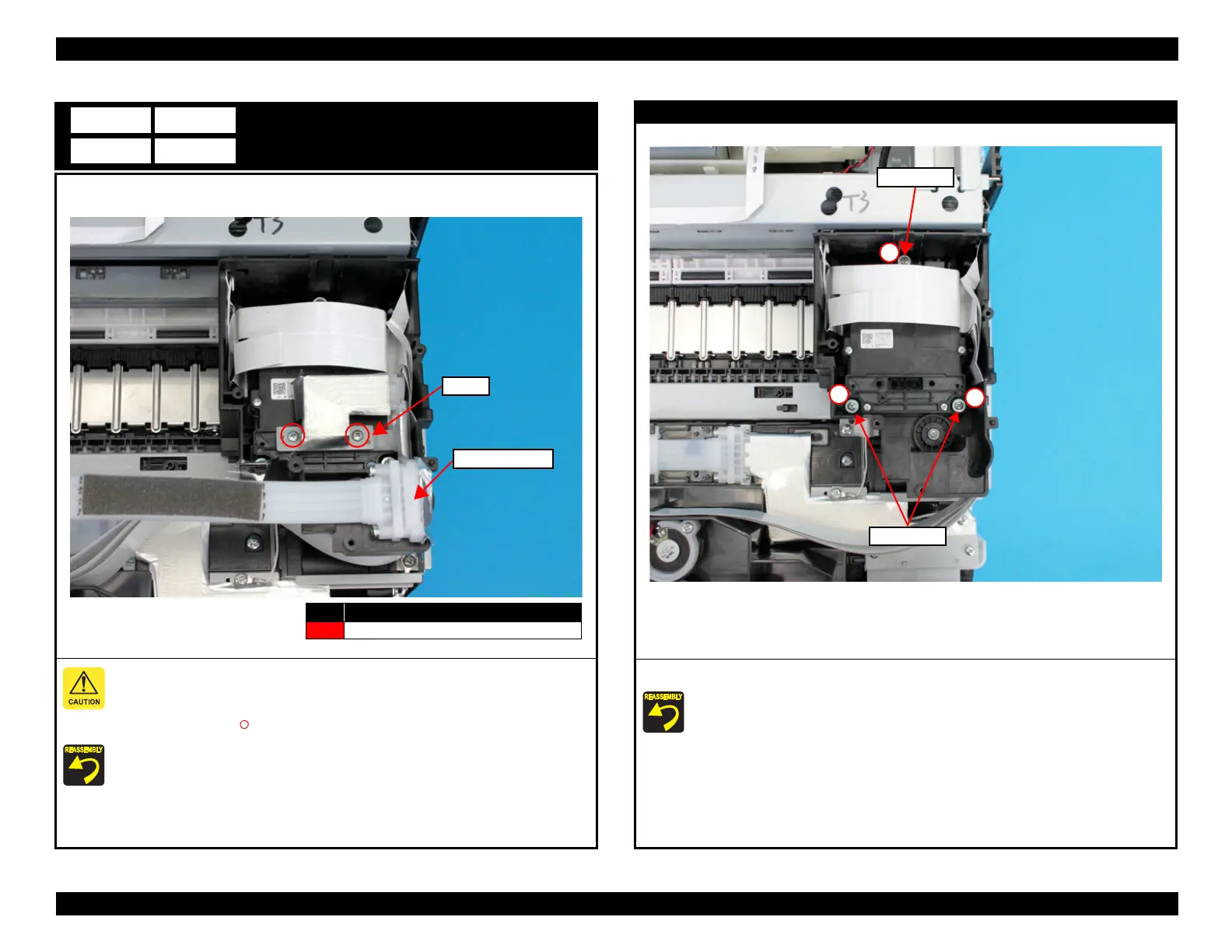

Head Screw Assy
In the following steps, ink may spill from the Ink Supply Tube. Prepare waste cloths
or similar in advance.
1. Remove the two screws (S8: ), and remove the Ink Supply Tube from the Printhaed.
Make sure the plate was attached.
B18
C18
No. Screw Type
S8
C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C
Ink Supply Tube
Plate
Head Screw Assy
2. Remove the three Head Screw Assy.
Tighten the screws in order given above.
Head Screw
Head Screw
2
1
3
