Ink Eject Cover

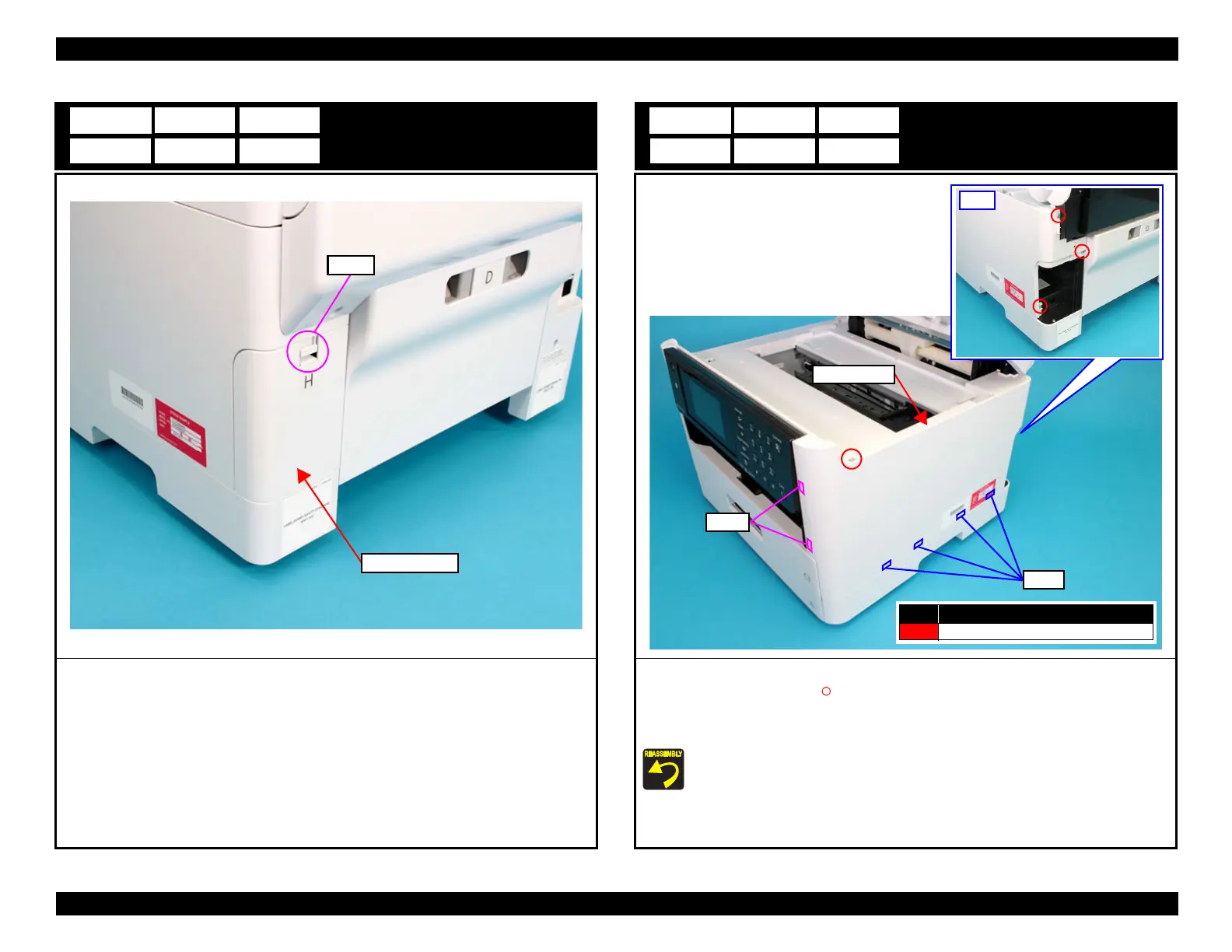

1. Disengage the hook, and remove the Ink Eject Cover.
D4 E4
F4
Ink Eject Cover
Hook
Housing Right
1. Open the ADF/SCN Unit.
2. Remove the four screws (S4: ) that secure the Housing Right.
3. Lift the Housing Right to release the two hooks on the front side of the Housing Right, then
remove the Housing Right.
Insert the four tabs of the Housing Right to the positioning holes on the Ink Supply
Unit.
D5 E5
F5
Housing Right
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Rear
Hooks
Tabs
