Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 449
Confidential

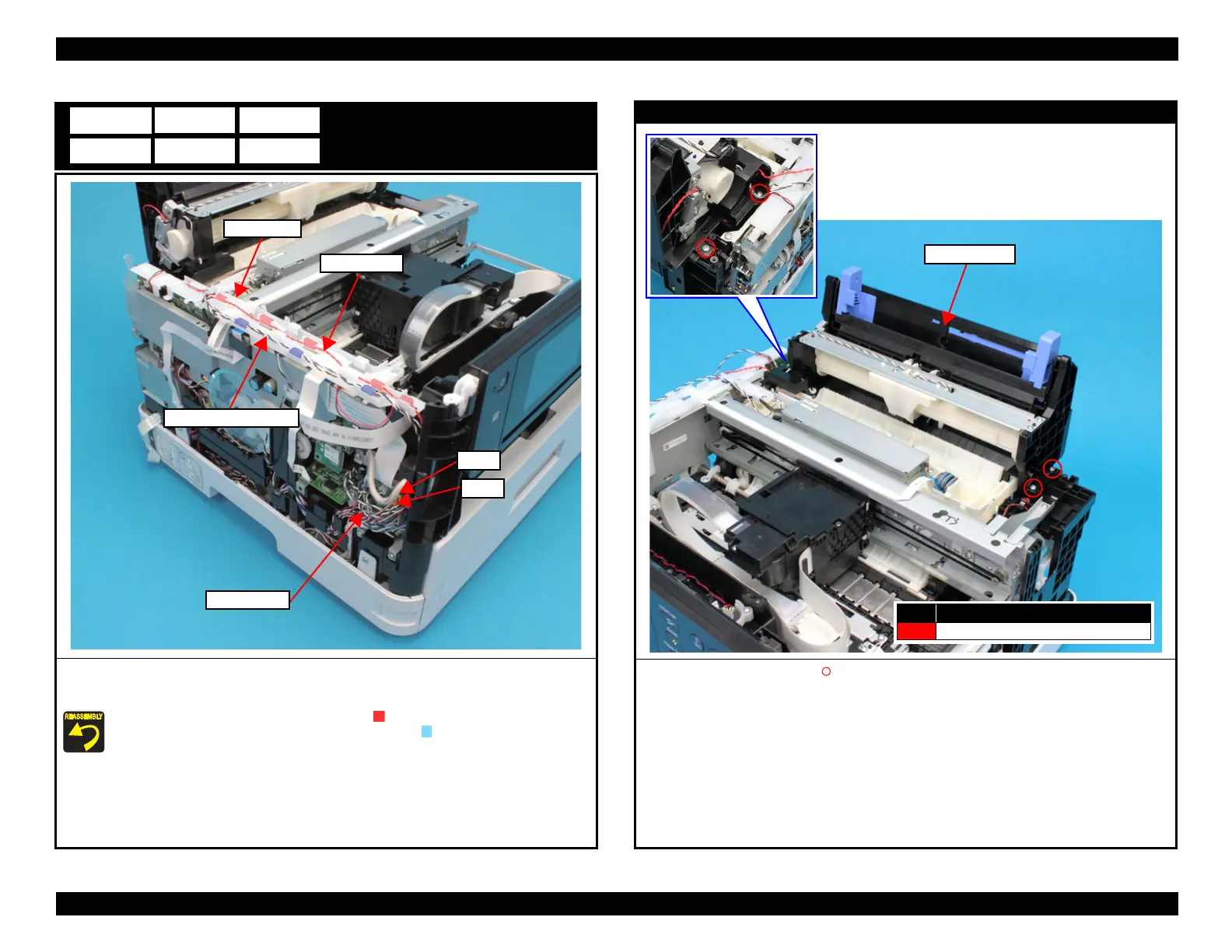

Rear ASF Assy
1. Disconnect the cables from the connectors (CN51, CN56) on the Relay Board.
2. Release the solenoid cable and photo interrupter cable from the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the photo interrupter cable through the three hooks ( ) on the Cable Guide.
E11
F11
Solenoid cable
Photo interrupter cable
Cable Guide
CN51
CN56
Relay Board
Rear ASF Assy
3. Remove the four screws (S4: ), and remove the Rear ASF Assy.
Rear ASF Assy
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
