Pickup Roller Housing

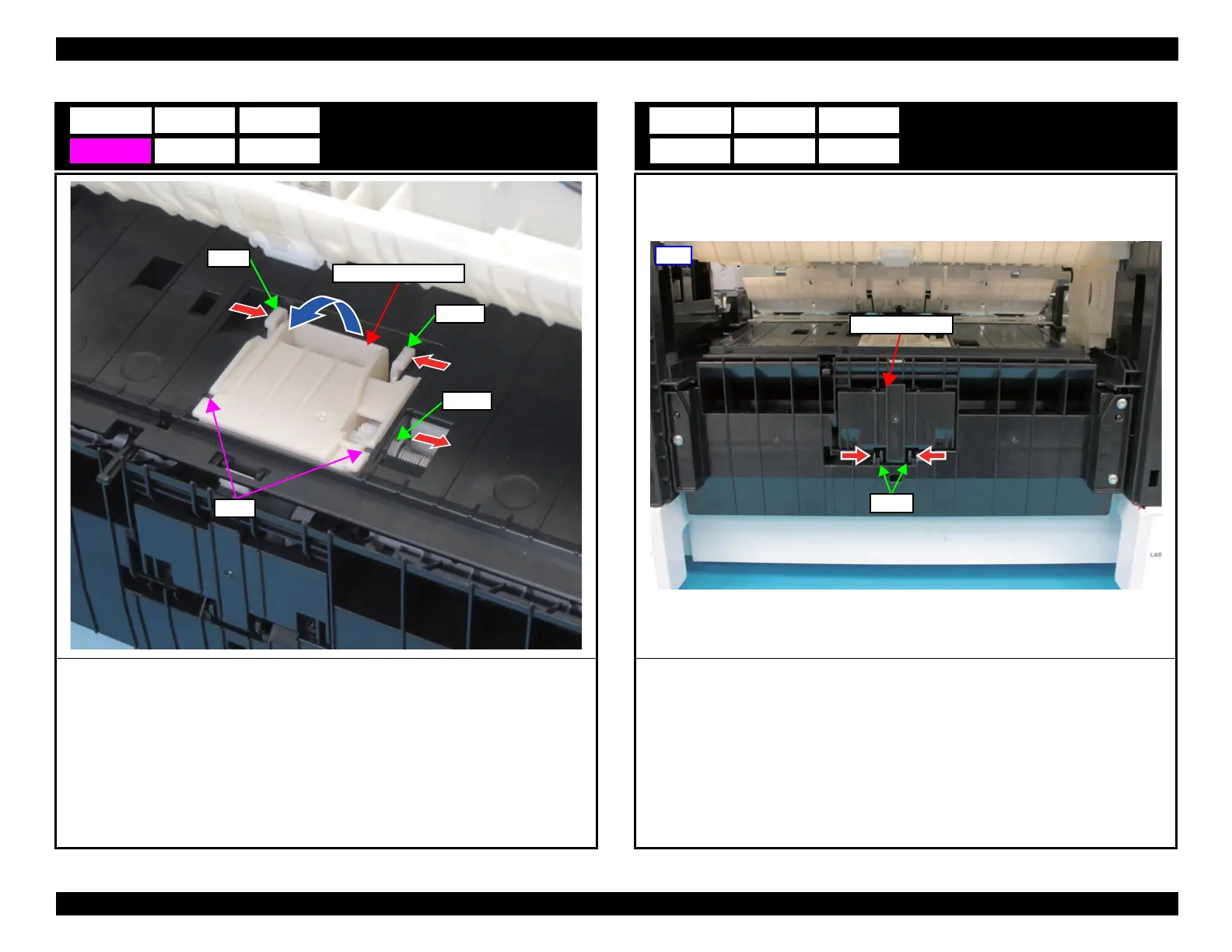

1. Rotate the Pickup Roller Housing in the direction of the arrow while pushing three levers.
2. Disengage two bearing of the Pickup Roller Housing from the shafts of the Frame Base,
then remove the Pickup Roller Housing.
C2
Pickup Roller Housing
Lever
Lever
Lever
Shafts
Feed Roller Cover
1. Disengage two hooks of the Feed Roller Cover while pushing them inward, then remove the
Feed Roller Cover.
D2 E2
Feed Roller Cover
Back
Hooks
