Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 467
Confidential

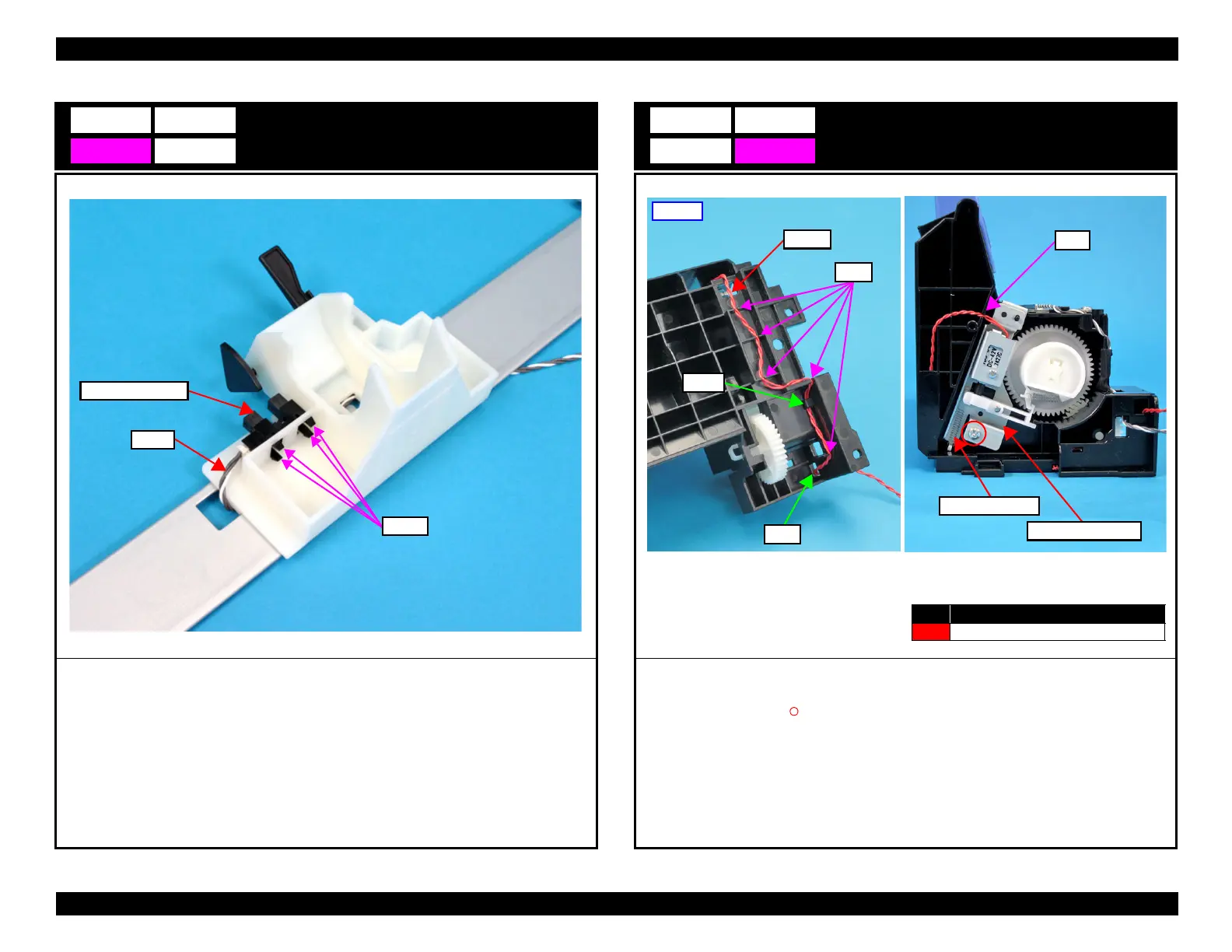

Photo Interrupter
1. Disconnect the cable from the connector of the Photo Interrupter.
2. Disengage four hooks, and remove the Photo Interrupter.
C12
Photo Interrupter
Hooks
Cable
Rear ASF Solenoid
1. Release the solenoid cable from the hole, hook and six slits on the Rear ASF Assy.
2. Remove the Extension Spring.
3. Remove the screw (S4: ), and remove the Rear ASF Solenoid.
D12
Bottom
Cable
Slits
Hole
Hook
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Slit
Rear ASF Solenoid
Extension Spring

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
