EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 507
Confidential

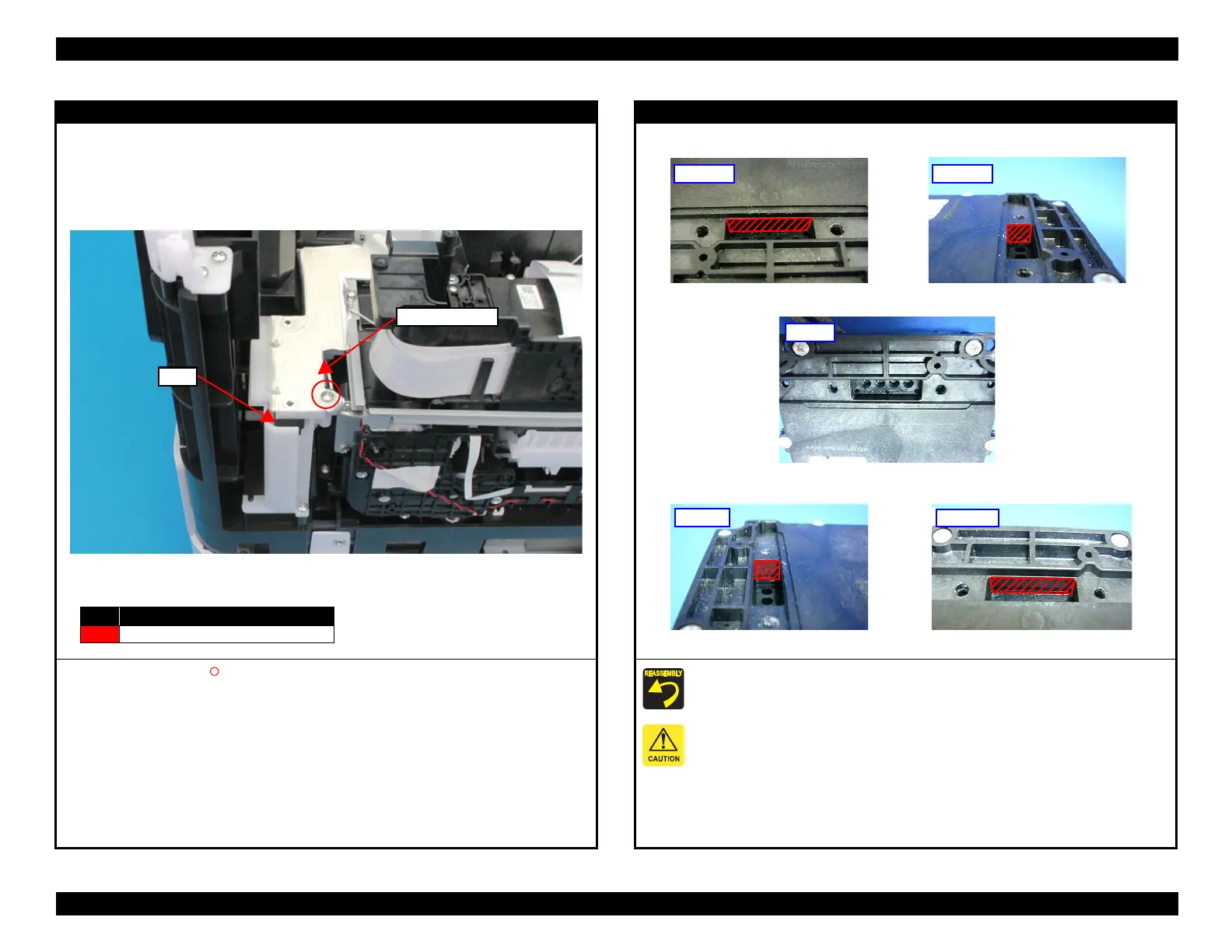

Ink Supply Tube
4. Remove the screw (S4: ).
5. Remove the Ink Supply Tube from the Joint, and remove the Ink Supply Tube.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Ink Supply Tube
Joint
Ink Supply Tube
Make sure to clean the Ink tube joint part of Printhead by using the Cleaning stick,
because perform the Ink Leak Check correctly.
If ink is remained to ink tube joint part of Printhead, Ink Leak Check can not perform
correctly.
Therefore cleaning the ink surely.
Rear side
Right side
Left side
Bottom
Front side
