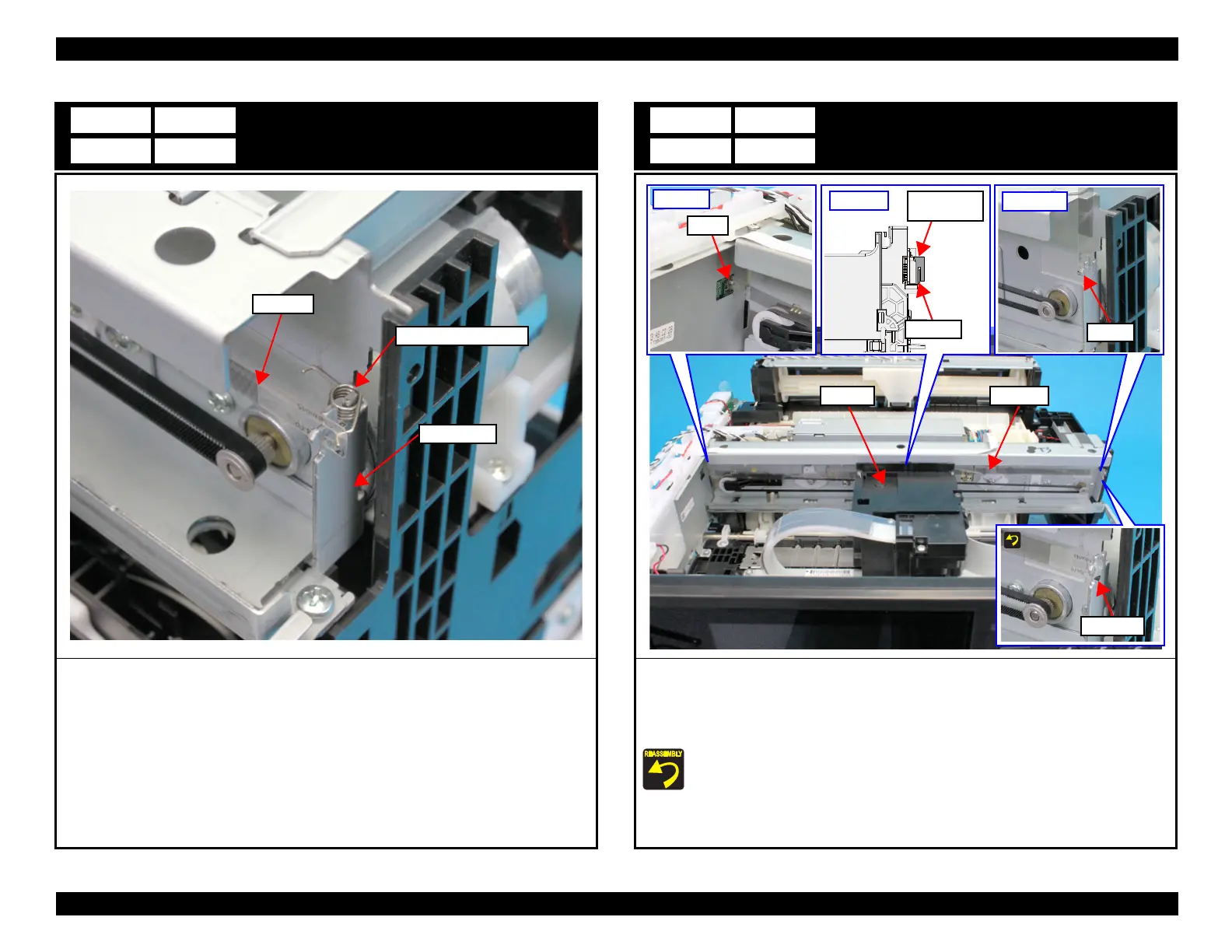

Extension Spring 11.11
1. Remove the Extension Spring 11.11 from the CR Scale.
2. Remove the Extension Spring 11.11 from the Main Frame.
A30
Extension Spring 11.11
CR Scale
Main Frame
CR Scale
1. At the full side, remove the CR Scale from hook on the frame.
2. Pull the CR Scale out from the CR Encoder Sensor.
3. At the home side, turn the CR Scale 90 degrees upward, and remove it from the hook on the
frame.
Attach the CR Scale with the marking on the bottom right corner.
A31
Hook
Full side
CR Encoder
Sensor
Side view
CR Scale
Hook
Home side
CR Scale
CR Unit
Marking
