Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 532
Confidential

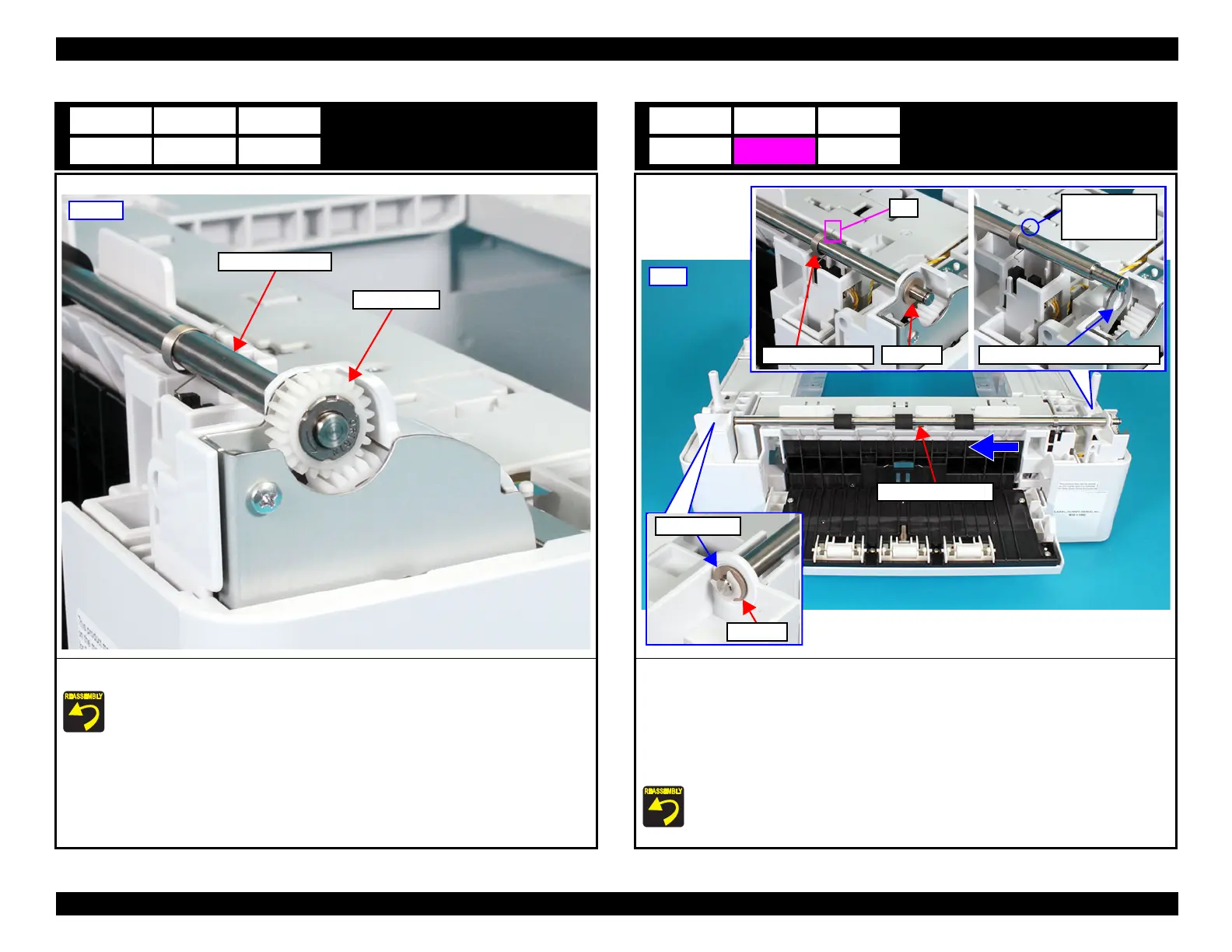

One-way Gear
1. Remove the One-way Gear from the Vertical Feed Roller.
When attaching the One-way Gear, make sure the arrow mark is facing outside as
shown in the figure above.
E5
F5
One-way Gear
Vertical Feed Roller
Left rear
Torsion Spring 0.9
1. Remove the straight leg of Torsion Spring 0.9 from the slit of the frame.
2. Slide the Vertical Feed Roller in the direction of the arrow, and remove the bearing B from
the hole in the frame.
3. Remove bearing A from the Vertical Feed Roller, and then remove the Vertical Feed Roller
from the hole in the Hopper Drive Frame.
4. Pull out and remove Torsion Spring 0.9 from the Vertical Feed Roller.
When attaching Torsion Spring 0.9, insert the straight leg of Torsion Spring 0.9 in the
slit of the frame.
E6
F6
Vertical Feed Roller
Bearing A
Slit
Torsion Spring 0.9
Hole of the Hopper Drive Frame
Straight leg of
Torsion Spring
0.9
Bearing B
Hole of frame
Rear

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
