EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Adjustment Adjustment and Inspection Details 573
Confidential
HEAD ANGULAR ADJUSTMENT
 Paper and feed tray
 Paper size: A4
 Paper type: Plain paper
 Paper feed tray: Paper Cassette 1st
 Adjustment pattern

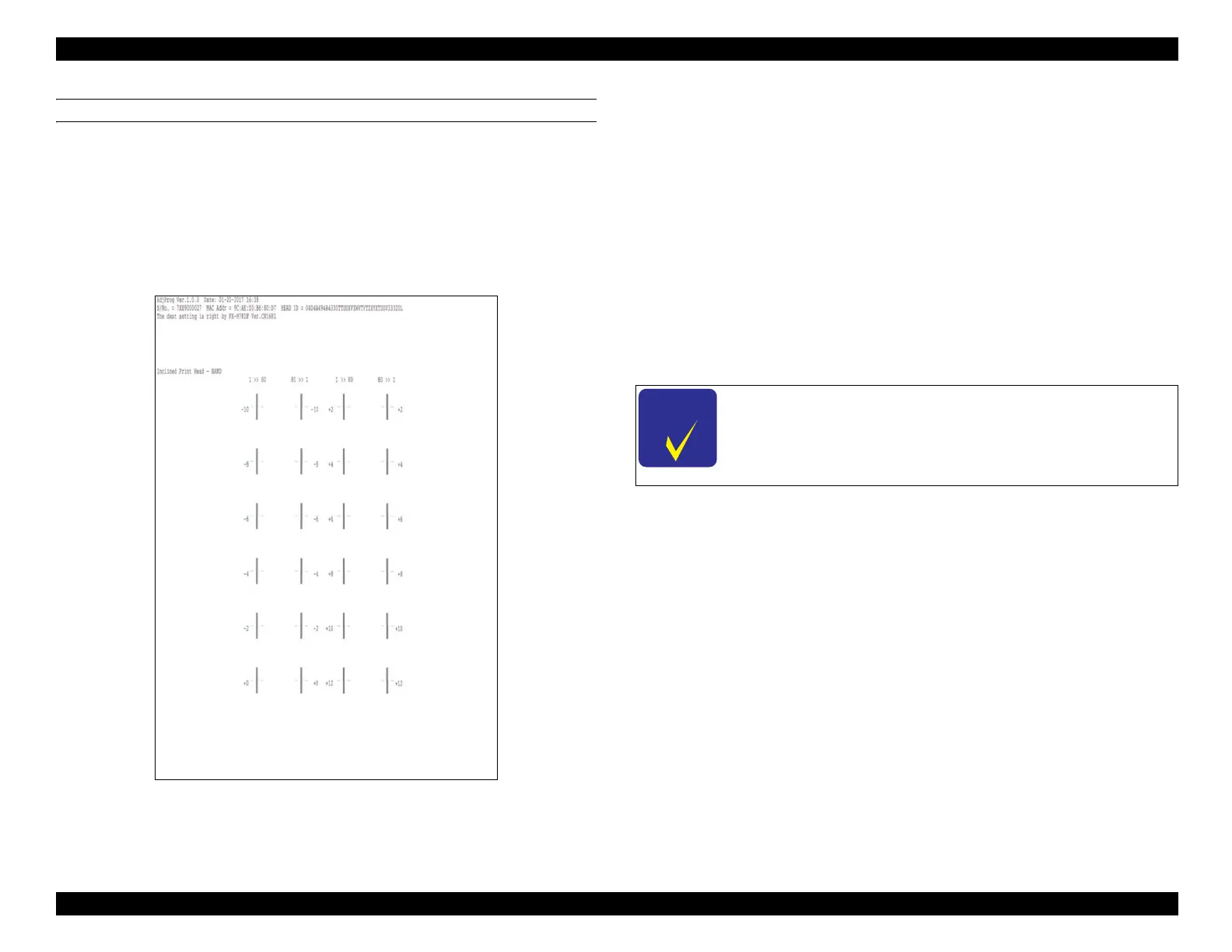

Figure 7-25. Head angular adjustment pattern
 Judgment
From among the printed patterns, select the pattern where the above and below
lines are the straightest.
 Adjustment procedure
1. Start the Adjustment Program, and select “Head angular adjustment”.
2. Load specified paper into the paper feed tray.
3. Press the Print button to print the adjustment pattern.
4. Check the adjustment pattern and determine the adjustment value based on the
judgment procedure.
5. Enter the adjustment value.
6. Check that an adjustment value is entered, press the Input button, and save the
adjustment value in the printer.
C H E C K
P O I N T
If there is no pattern satisfying the judgment method among the
adjustment patterns, there is a pattern satisfying the judgment
method outside the scope of pattern printing. Therefore, select the
best pattern and enter the adjustment value, following which again
print the adjustment pattern and determine the adjustment value.

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
