Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 64
Confidential
Cap Mechanism
The direct acting type is employed in the capping mechanism, where the Cap is
moved up and down by the Pump Motor and the printhead is capped at the
suction for cleaning.
Intermittent Gear 2 rotates on drive power from the Pump Motor, and the cam
surface on the Intermittent Gear 2 pushes the Cap, moving it forward. At this time,
the cap tab contacts the printhead surface, guiding the Printhead on the Cap.
Next, the Wiper/cap-drive Cam moves the Cap Drive Lever, raising the Cap,
capping the Printhead.

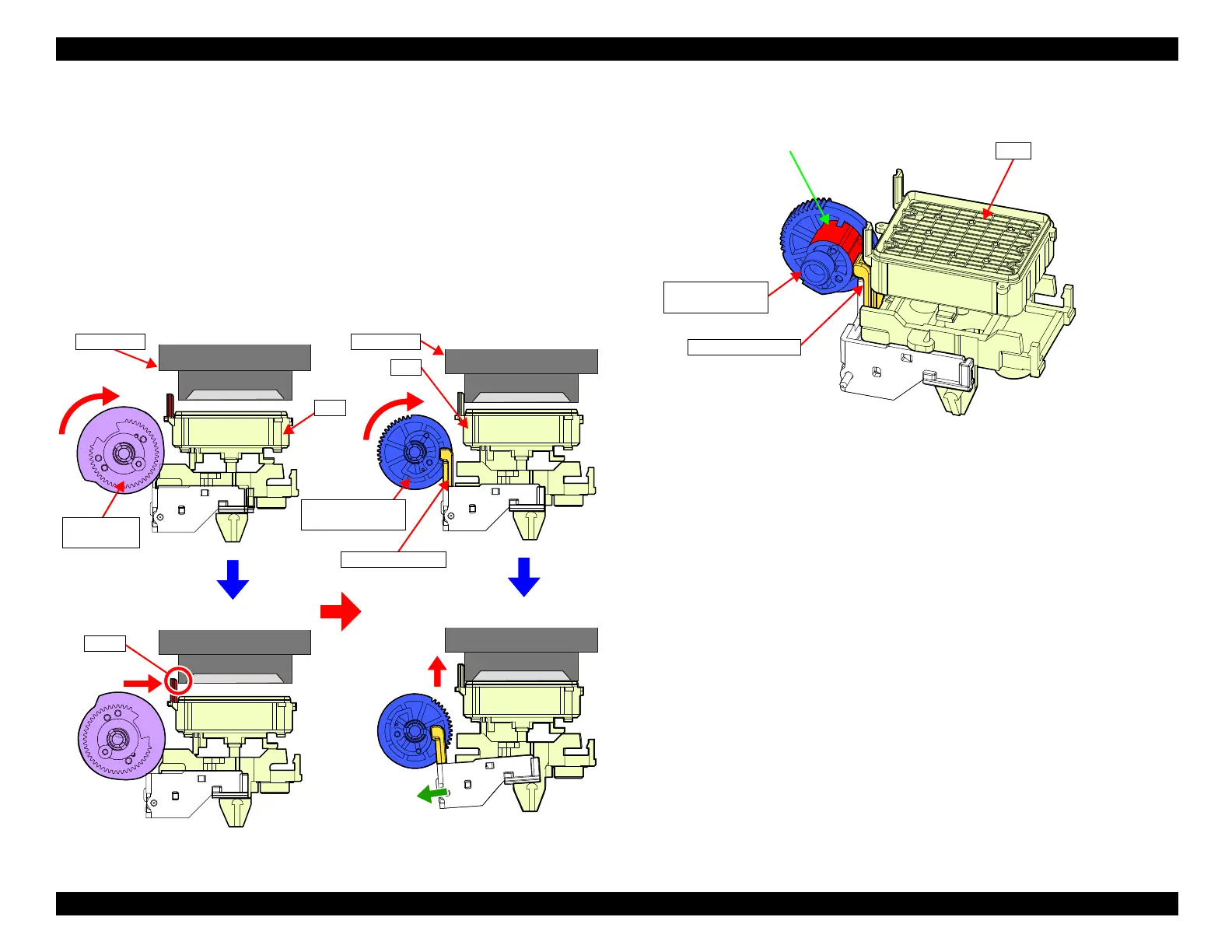

Figure 3-46. Cap Mechanism (1)
Figure 3-47. Cap Mechanism (2)
Printhead
Intermittent
Gear (2)
Tab
Cap
Wiper/cap-drive
Cam
Cap Drive Lever
Printhead
Cap
The cam surface (in red) of the
wiper/cap-drive cam raises and
lowers the cap drive lever.
Cap
Wiper/cap-drive
Cam
Cap Drive Lever

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
