Take care when loosening the nut on the wheel shaft, you could be injured by the drill bit.
Before loosening the nut, you are strongly recommended to take the drill bit out of the chuck.
For instructions on how to proceed, consult section: Maintenance and servicing > Changing the
tools on the edger > Changing or cleaning the drill bit (F p.167).

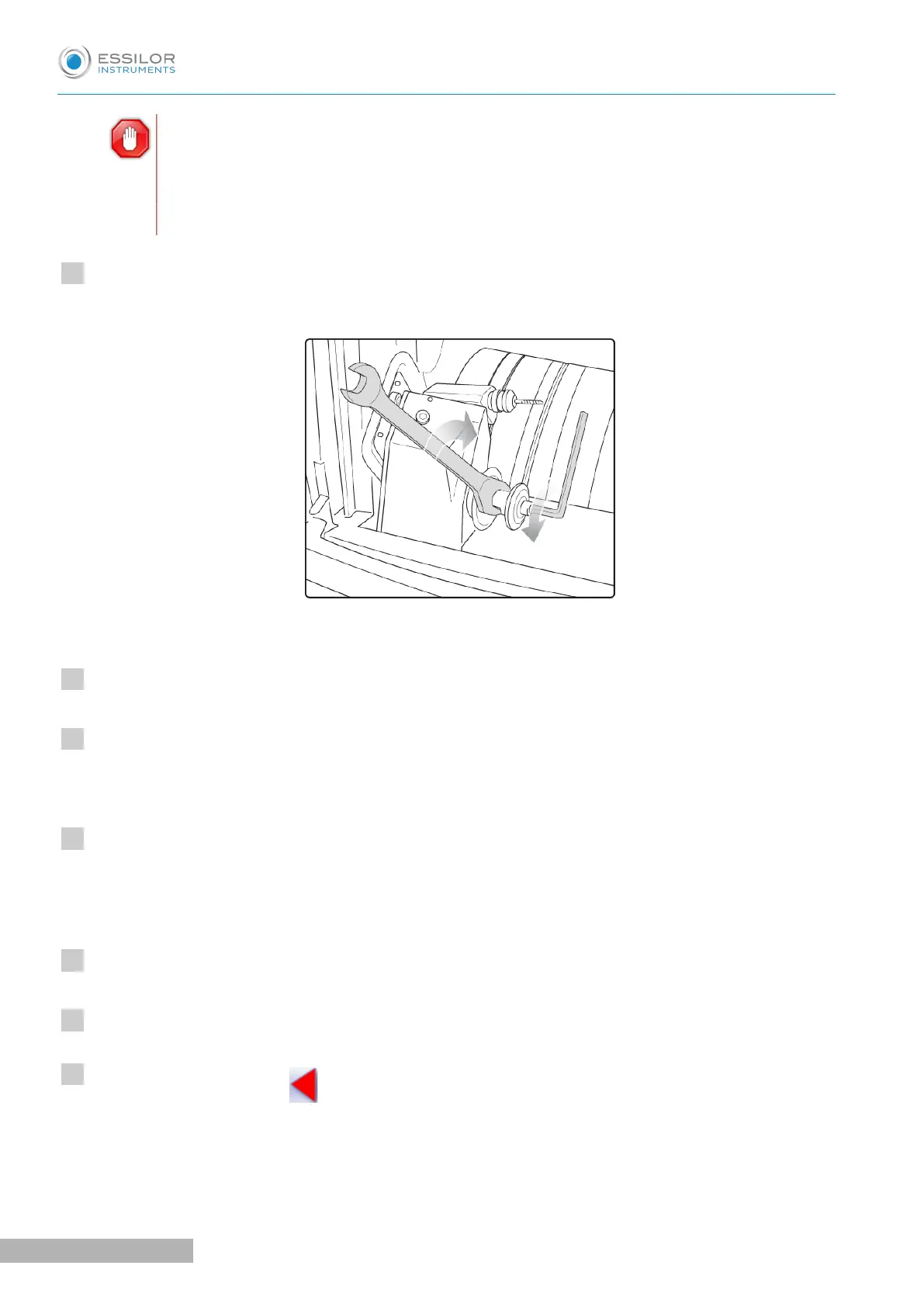

Place the open-ended spanner behind the chamfering wheel to hold the spindle and insert the Allen key
in the screw.
Carefully remove the screw and washer without letting them fall into the trough.
Remove the chamfering wheel.
You can access the grooving wheel.
Replace the desired wheel. Reposition the second wheel.
• Grooving wheel: the boss is turned towards the right.
• Chamfering wheel: is provided with a positioner, which ensures that it is inserted the right way.
Put the screw back in and tighten it as much as possible.
If you took the drill bit out of the chuck, put it back.
Remove the keys and press .
The module goes back into its initial position.
The wear statistics of the replaced tool are reset to zero.
