Eventide Harmonizer H90 - Page 52

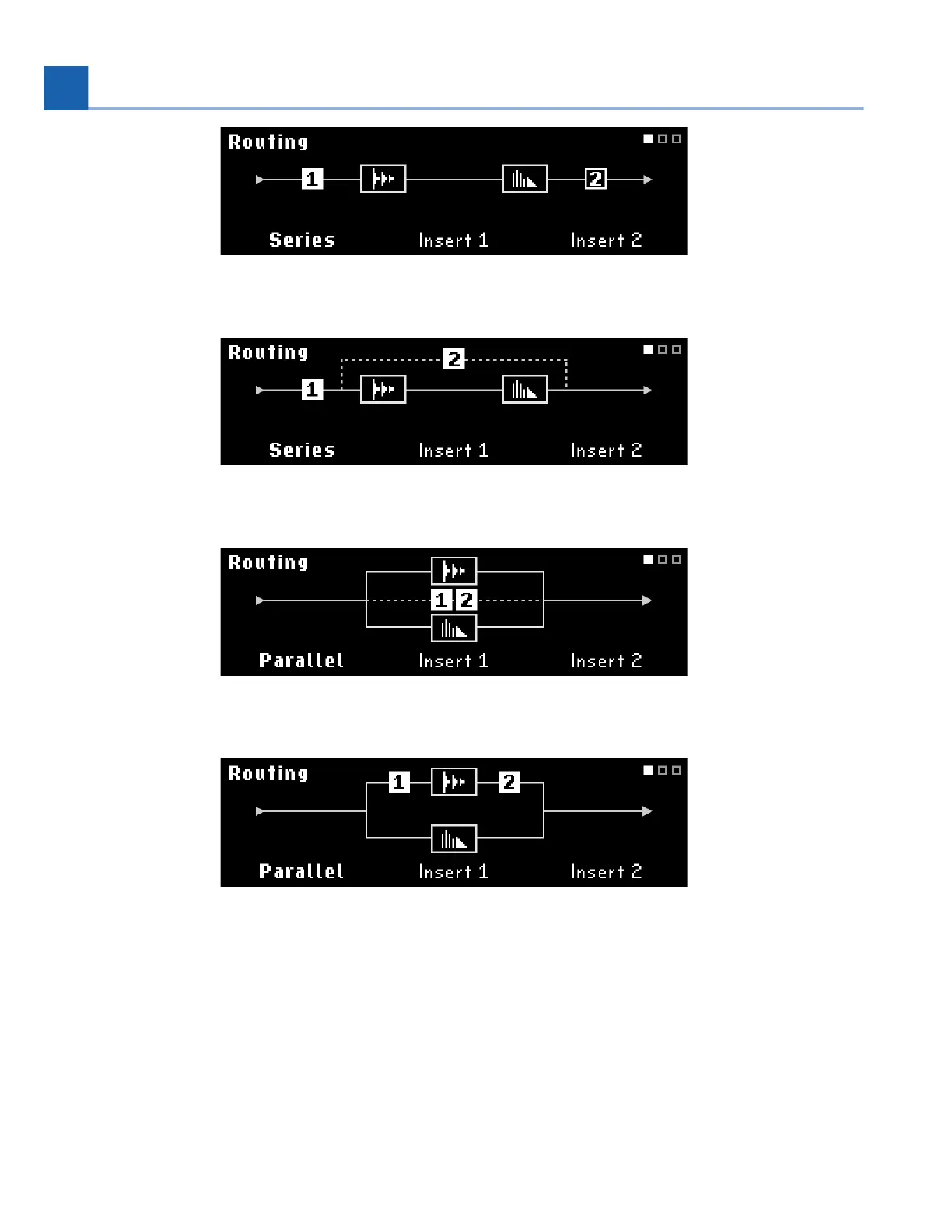

Fig. 6.8 Insert 1 pre-Preset A, Insert 2 post-Preset B
Fig. 6.9 Insert 1 pre-Preset A, Insert 2 in Parallel with Preset A & B
Fig. 6.10 Inserts 1 & 2 routed in Parallel with Preset A & B
Fig. 6.11 Inserts 1 & 2 in Parallel, with Insert 1 pre-Preset A, and Insert 2 post-Preset A
Turning Quick Knob 3 completely clockwise will enable stereo insert 1-2, the position of which can then
be adjusted using Quick Knob 2.
52
6. EDIT MODES
