FOR-A HVS-3800HS User Manual

8
 EDITOR Connector

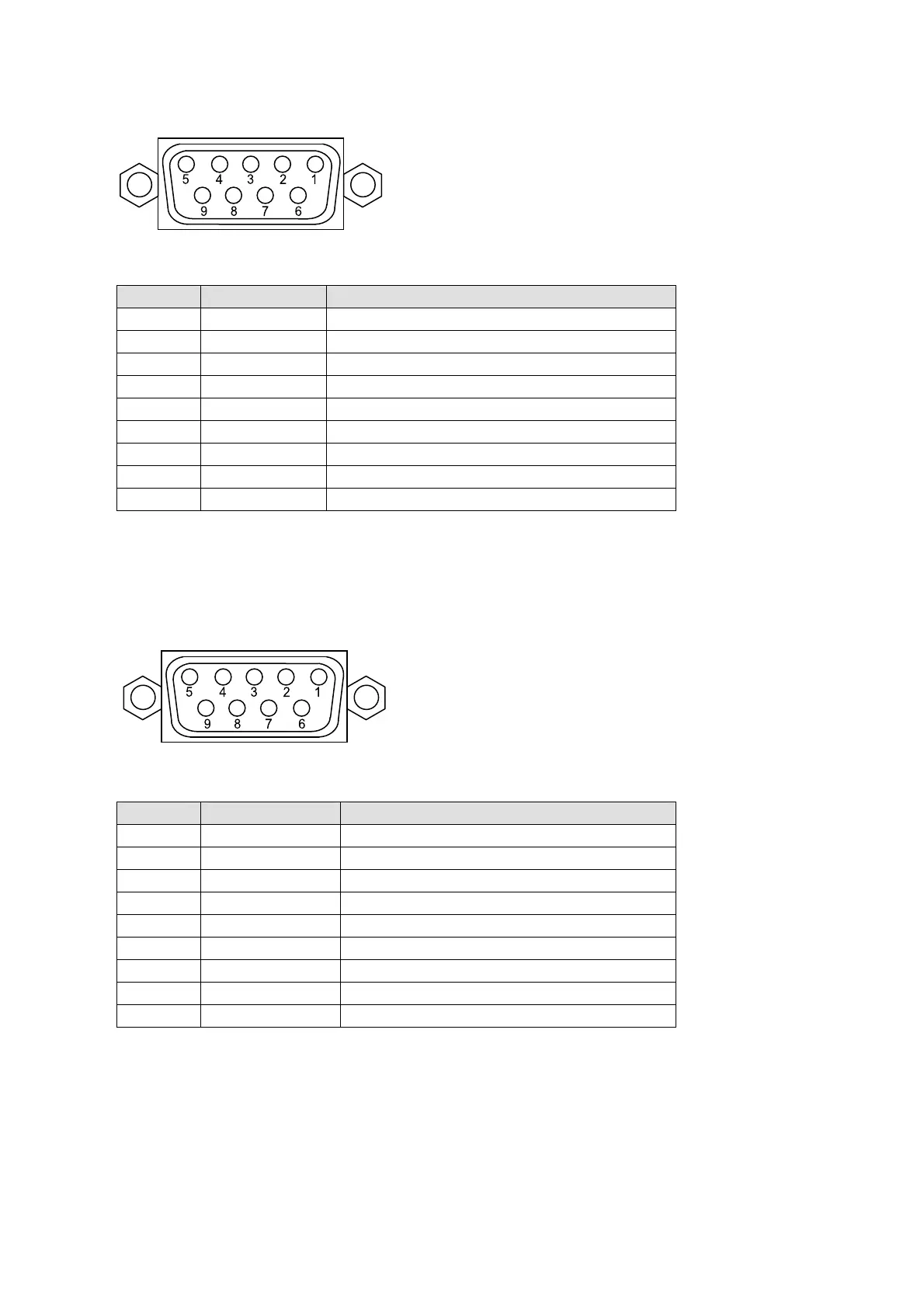

Pin Assignment Table (9-pin D-sub, female)
Pin No. Signal Name Description
1 FG Frame ground
2 T- Transmit data (-)
3 R+ Receive data (+)
4 SG Signal ground
5 - Not used
6 SG Signal ground
7 T+ Transmit data (+)
8 R- Receive data (-)
9 FG Frame ground
Cable Connectors
9-pin D-sub connector (male) with inch security lock screws needed for user cable
fabrication.
 RS-422 Connector
Pin Assignment Table (9-pin D-sub, female)
Pin No. Signal Name Description
1 FG Frame ground
2 R- Receive data (-)
3 T+ Transmit data (+)
4 SG Signal ground
5 - Not used
6 SG Signal ground
7 R+ Receive data (+)
8 T- Transmit data (-)
9 FG Frame ground
Cable Connectors
9-pin D-sub connector (male) with inch security lock screws needed for user cable
fabrication.
