9

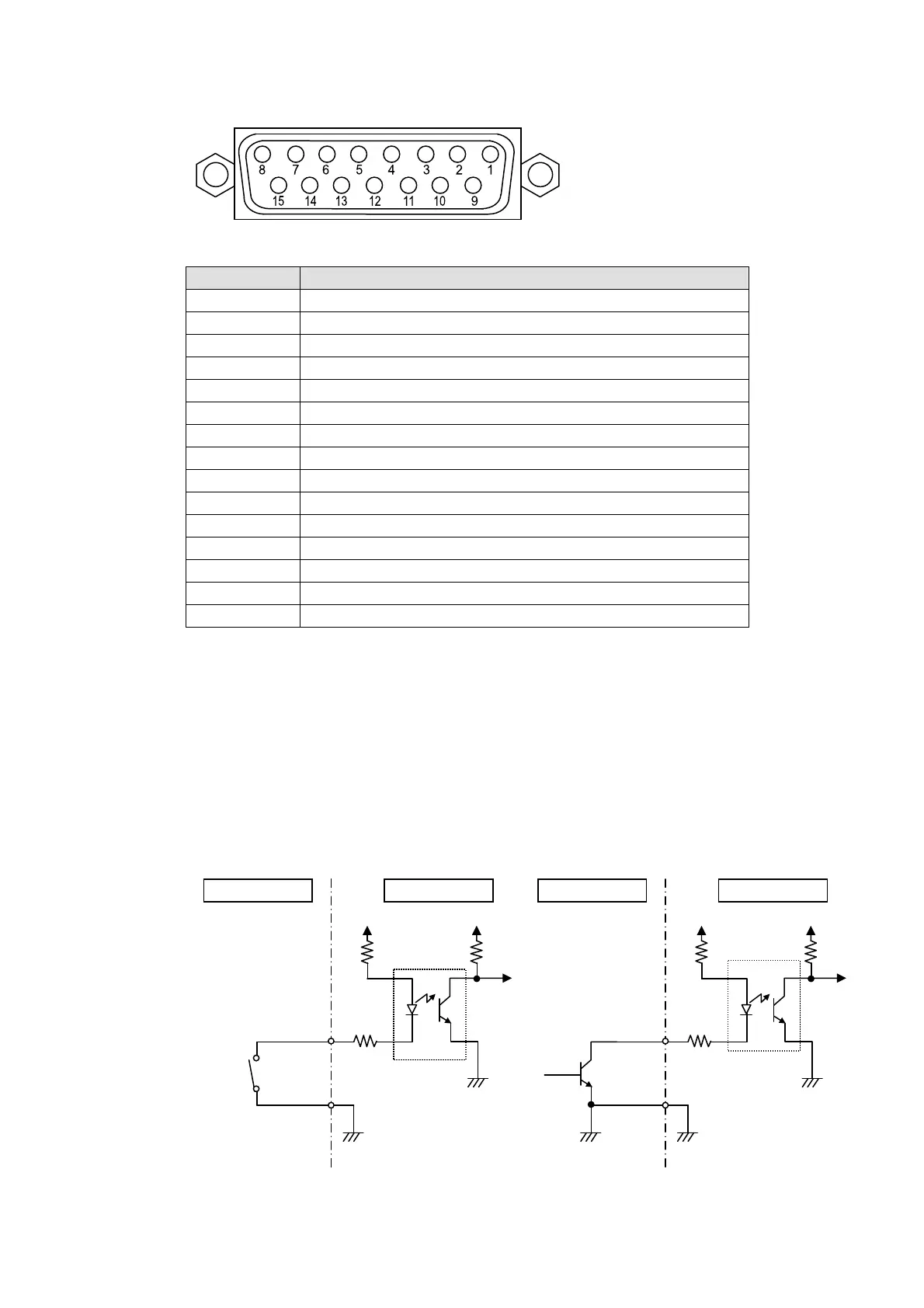

GPI IN Connector
Pin Assignment Table (15-pin D-sub, female)
Pin No. Description
1 TRANS-TYPE M/E1-BKGD-AUTO (default setting)
2 TRANS-TYPE M/E1-KEY1-AUTO (default setting)
3 TRANS-TYPE M/E1-KEY2-AUTO (default setting)
4 TRANS-TYPE M/E1-KEY3-AUTO (default setting)
5 TRANS-TYPE M/E2-BKGD-AUTO (default setting)
6 TRANS-TYPE M/E2-KEY1-AUTO (default setting)
7 TRANS-TYPE M/E2-KEY2-AUTO (default setting)
8 TRANS-TYPE M/E2-KEY3-AUTO (default setting)
9 No assignment (default setting)
10 No assignment (default setting)
11 N/C
12 N/C
13 Signal ground
14 Signal ground
15 Signal ground
*
Where “default” in table above denotes factory set default pin assignments.
Cabling
15-pin D-sub connector (male) with inch security lock screws needed for user cable
fabrication.
Pin Free Assign
Pin1 to 10 signal assignments shown above are factory default settings. These can be
changed in operational menus. See section 16-1-1. “GPI IN Free Assignments” for more
details.
Circuit
HVS-3800HS/S
VccVcc
External Device
Open corrector
HVS-3800HS/S
VccVcc
External Device
Switch or Relay
To Next Page
