FOR-A HVS-3800HS User Manual

10
 GPI/TALLY OUT Connector

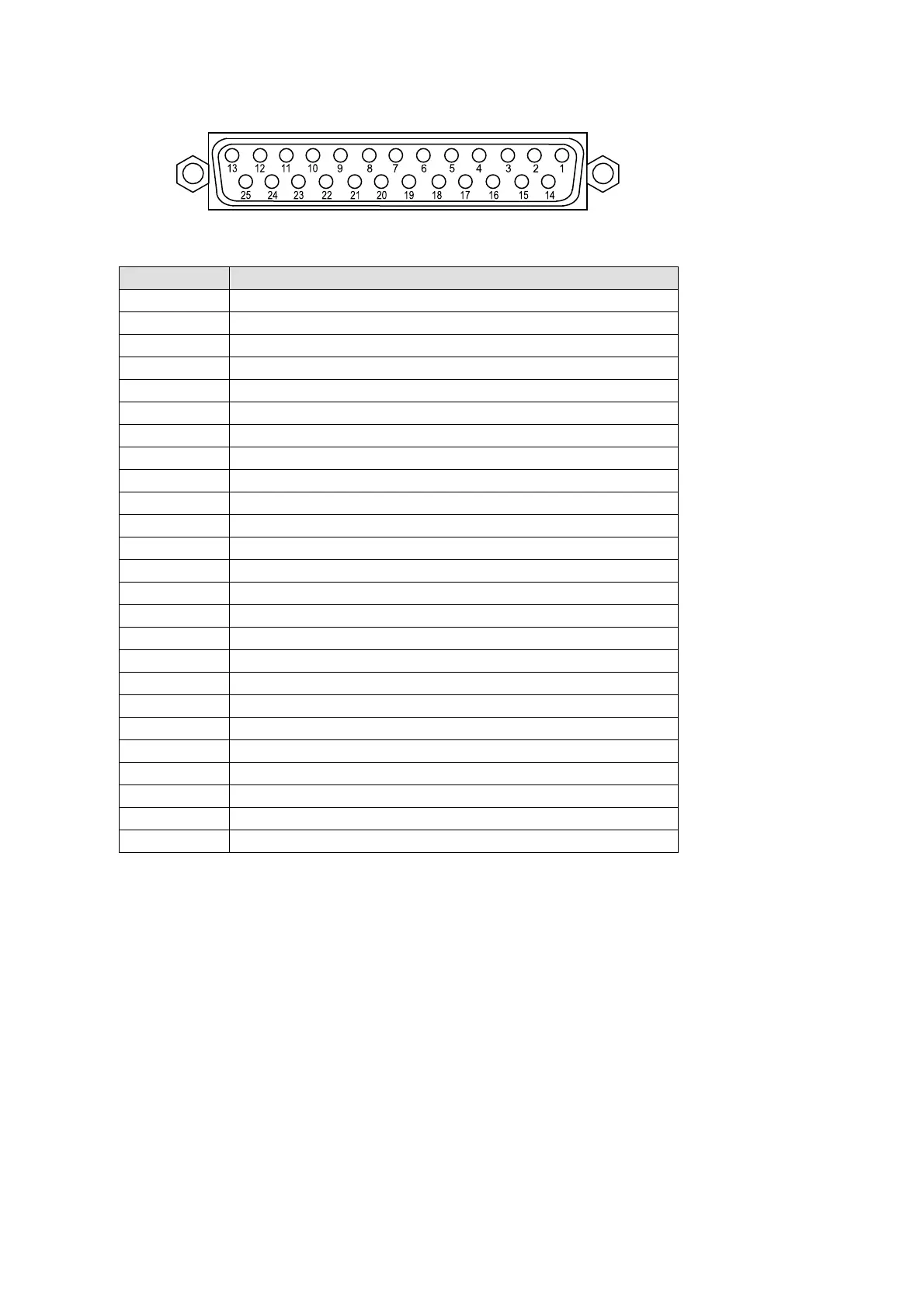

Pin Assignment Table (25-pin D-sub female)
Pin No. Description
1 M/E1-BKGD TRANSITION (default setting)
2 M/E1-KEY1 TRANSITION (default setting)
3 M/E1-KEY2 TRANSITION (default setting)
4 M/E1-KEY3 TRANSITION (default setting)
5 M/E2-BKGD TRANSITION (default setting)
6 M/E2-KEY1 TRANSITION (default setting)
7 M/E2-KEY2 TRANSITION (default setting)
8 M/E2-KEY3 TRANSITION (default setting)
9 Not assigned (default setting)
10 Not assigned (default setting)
11 Not assigned (default setting)
12 Not assigned (default setting)
13 Not assigned (default setting)
14 Not assigned (default setting)
15 Not assigned (default setting)
16 Not assigned (default setting)
17 Not assigned (default setting)
18 Not assigned (default setting)
19 Not assigned (default setting)
20 Not assigned (default setting)
21 Frame ground
22 Frame ground
23 Frame ground
24 Frame ground
25 +5V output (MAX 0.5A) (*1)
*
Where “default” in table above denotes factory set default pin assignments.
Cabling
25-pin D-sub connector (male) with inch security lock screws needed for user cable
fabrication.
(*1) Max. contact load of 0.5A DC.
Pin Free Assign
Pin1 to 20 signal assignments shown above are factory default settings. These can be
changed in operational menus. See section 16-1-2. “GPI OUT Free Assignments” for more
details.
